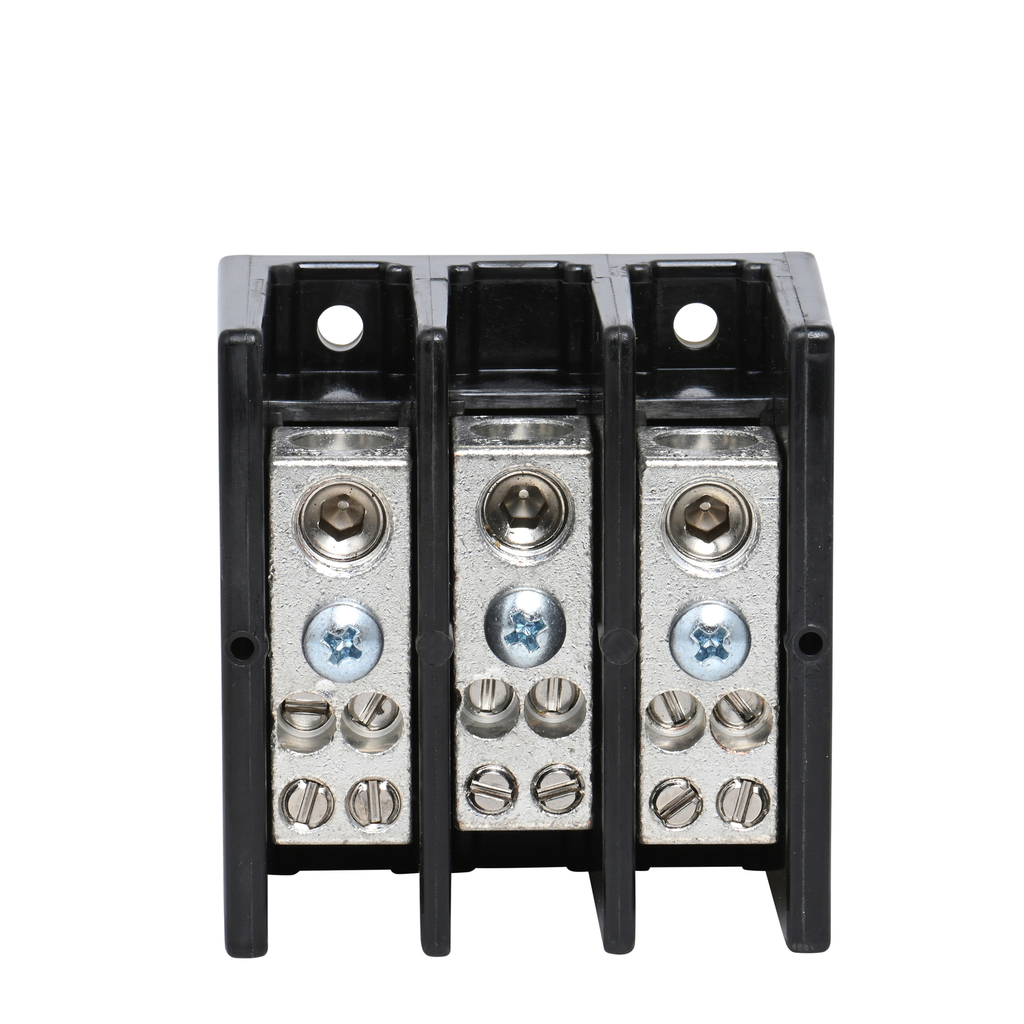

Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A Cu, 600V

PWR DISTR BLK 600V 175A

SQD9080LBC362104 9080LBC362104 785901097662
325.84 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A Cu, 600V-1
  • Depth: 1.78 in
  • Number of Poles: 3
  • Warranty Length: 18 mth
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one 18 to 2/0 copper wire. The load side lug is rated to accept one 14 to 4 copper wire. The lugs are made of copper. The lugs are rated for 175 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one 18 to 2/0 copper wire. The load side lug is rated to accept one 14 to 4 copper wire. The lugs are made of copper. The lugs are rated for 175 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Wire Stripping Length : load: 0.38 in for top connection, line: 0.75 in, load: 0.88 in for bottom connection
  • Complementary Attributes
    • Line Rated Current : 175-175 A copper
    • Ics Rated Service Breaking Capacity : 100 kA UL 508 A
    • Ue Rated Operational Voltage : 600 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Number Of Cables : line 4 , AWG 14...AWG 2/0, copper, load 2 , AWG 14...AWG 4, copper
    • Number Of Terminals : 1 line, 4 load
    • Connections Terminals : line lug 40 lbf.in AWG 8 copper, line lug 35 lbf.in AWG 14...AWG 10 copper, line lug 120 lbf.in AWG 6...AWG 2/0 copper, load lug 35 lbf.in AWG 14...AWG 4 copper
    • Certificate Agency : CSA file 70361 class 6228 01, UL recognized E60616 CCN XCFR2, CE
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1909
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Electrical Connection : tin plated copper lugs
    • Energy Efficiency Optimized : False
    • Material : phenolic: block
    • Mounting Support : surface mount
    • Number Of Poles : 3
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : 9080LB
    • Returnability : Yes
    • Short Circuit Current : 65 kA
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ics Rated Service Breaking Capacity : 100 kA UL 508 A
    • Warranty In Months : 18
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 2.88 in
    • Width Nominal : 2.75 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-302 °F
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : 9080LB23
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : 9080LB
  • ETIM
    • ETIM 8 : EC002021
    • ETIM 9 : EC002021
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Brazil, United States
    • Depth : 1.78 in
