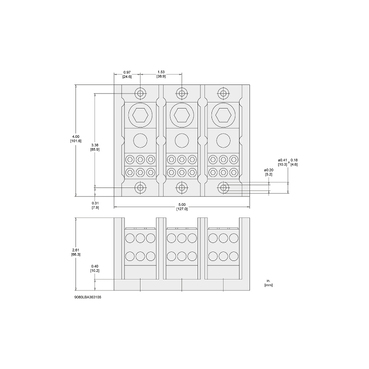

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one 6 to 400 kcmil copper or aluminum wire. Each load side lug is rated to accept one 14 to 2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

• Connections Terminals
• load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium
• load lug 40 lbf.in AWG 8 copper or aluminium
• load lug 35 lbf.in AWG 14 copper
• load lug 50 lbf.in AWG 2 copper or aluminium
• load lug 35 lbf.in AWG 12...AWG10 copper or aluminium
• line lug 375 lbf.in AWG 6...400 kcmil copper or aluminium
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003098_3D-CAD&p_File_name=MCADPP0003098_2D-top.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=9080LBA363106_2D&p_File_name=9080LBA363106.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=9080LBA363106_2D&p_File_name=9080LBA363106.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Electrical Connection
• tin plated aluminium lugs
• ICS Rated Service Breaking Capacity
• 65 kA UL 508 A
• Material
• phenolic: block
• Number Of Cables
• line 1 , AWG 6...400 kcmil, copper or aluminium
• load 6 , AWG 14...AWG 2, copper or aluminium
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Line Rated Current
• 335-335 A copper
• 270-270 A aluminium
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Number Of Terminals
• 1 line
• 6 load
• Wire Stripping Length
• line: 1.06 in
• load: 0.56 in for top connection
• load: 1 in for bottom connection
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 600 V AC/DC

• Important Information Attributes
• B2B Bullet Point 1 : Power Distribution Blocks is perfect for splicing or distributing wires within control panels
• B2B Bullet Point 2 : Has numerous configurations for power distribution and also allows customer save on panel space
• B2B Bullet Point 3 : Ideal for distributing power to multiple loads
• B2B Bullet Point 4 : UL component recognized and CSA certified
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• HTML Description : Power Distribution Block, 3 pole, 1 line, 6 load, 335 A 600 V CU / 270 A 600 V AL
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1909
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Number Of Poles : 3
• Package Weight Lbs : 712.14 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Power Distribution Block
• Range Of Product : 9080LB
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Accessories : 9080LB33
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Power Distribution Block
• Range Of Product : 9080LB
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=372993&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
