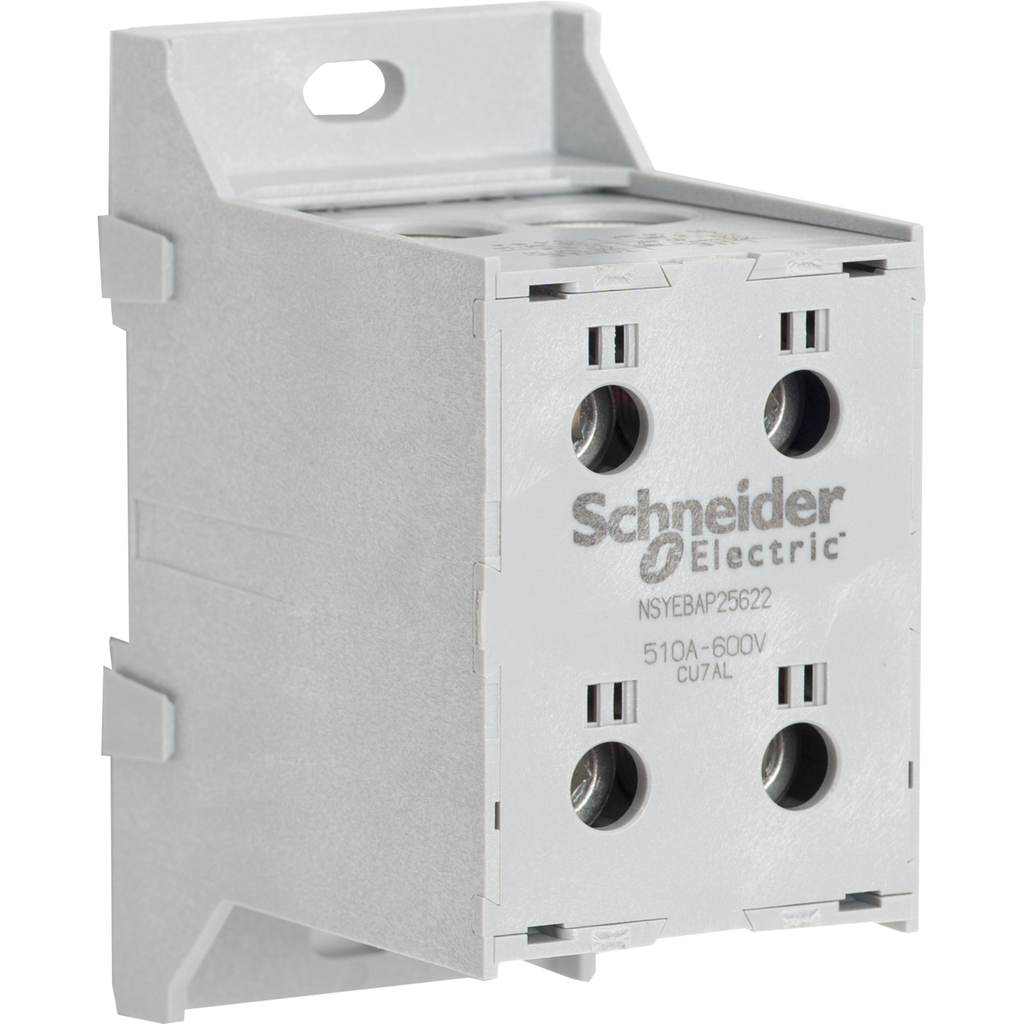

Power distribution block, Linergy, enclosed, 510A CU, 410A AL, 600 V, 2 line side lug, 2 load side lug, AL lug, panel

ENCLOSED POWER BLOCK 600V 510A

SQDNSYEBAP25622 NSYEBAP25622 785901542544
232.16 / EA
http://schema.org/OutOfStock
Mayer-DDS-Power distribution block, Linergy, enclosed, 510A CU, 410A AL, 600 V, 2 line side lug, 2 load side lug, AL lug, panel-1
  • Dielectric Strength: 1000 V, 120 mm
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 510A at 600 V when copper wire is used and 410A at 600 V when aluminum wire is used. Each of the two line side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires. Each of the two load side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires. This block can be mounted directly to a panel. This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
QTY
  • Product Description
  • Specifications
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 510A at 600 V when copper wire is used and 410A at 600 V when aluminum wire is used. Each of the two line side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires. Each of the two load side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires. This block can be mounted directly to a panel. This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
  • Physical Attributes
    • Wire Stripping Length : line: 1.38 in, load: 1.38 in
  • Complementary Attributes
    • Line Rated Current : 510-510 A copper, 410-410 A aluminium
    • UE Rated Operational Voltage : 600 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB, SI
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Fixing Mode : by screws M6, by screws 1/4 inch
    • Number Of Cables : line 2 , AWG 6...250 kcmil, copper or aluminium, load 2 , AWG 6...250 kcmil, copper or aluminium
    • Number Of Terminals : 2 line, 2 load
    • Tightening Torque : line 275 lb.in, AWG 1...250 kcmil, copper, line 120 lb.in, AWG 6...AWG 2, copper, line 275 lb.in, AWG 1...250 kcmil, aluminium, line 120 lb.in, AWG 6...AWG 2, aluminium, load 275 lb.in, AWG 1...250 kcmil, copper, load 120 lb.in, AWG 6...AWG 2, copper, load 275 lb.in, AWG 1...250 kcmil, aluminium, load 120 lb.in, AWG 6...AWG 2, aluminium
    • Connections Terminals : line lug 275 lbf.in AWG 1...250 kcmil copper, line lug 120 lbf.in AWG 6...AWG 2 copper, line lug 275 lbf.in AWG 1...250 kcmil aluminium, line lug 120 lbf.in AWG 6...AWG 2 aluminium, load lug 275 lbf.in AWG 1...250 kcmil copper, load lug 120 lbf.in AWG 6...AWG 2 copper, load lug 275 lbf.in AWG 1...250 kcmil aluminium, load lug 120 lbf.in AWG 6...AWG 2 aluminium
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Dielectric Strength : 1000 V 120 mm² IEC 60947-7-1
    • Electrical Connection : tin plated aluminium lugs
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free product
    • Material : thermoplastic: block
    • Package Weight Lbs : 376.482 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : NSYEB
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
    • Product Manager : CYRILLE DUCHESNE
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • Product Compatibility : NSYEBP250 250 kcmil), NSYEBP500 500 kcmil)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : NSYEB
