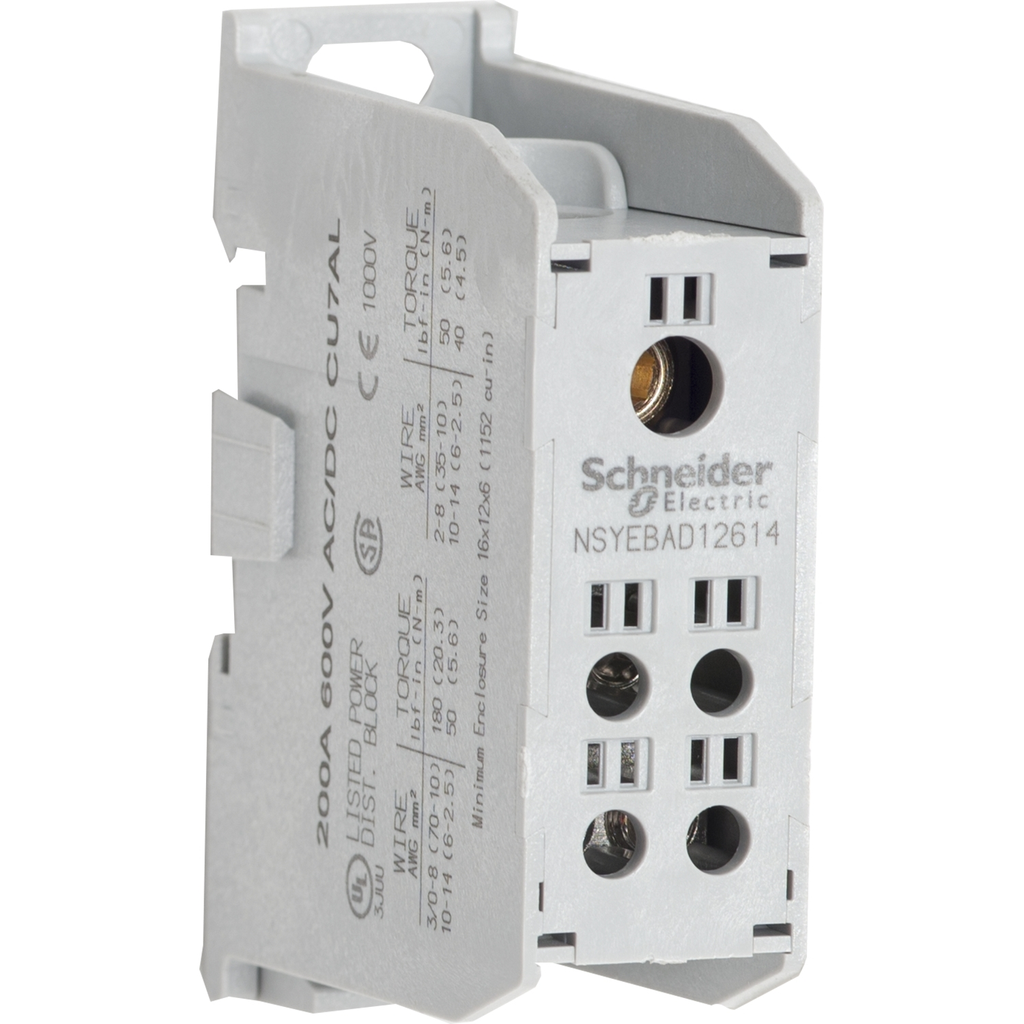

Power distribution block, Linergy, enclosed, 1 line, 4 load, 200A Cu, 600V, Cu lug, rail mount

Enclosed Power Block 600V 200A

SQDNSYEBCD12614 NSYEBCD12614 785901500186
154.77 / EA
http://schema.org/OutOfStock
Mayer-DDS-Power distribution block, Linergy, enclosed, 1 line, 4 load, 200A Cu, 600V, Cu lug, rail mount-1
  • Country of Origin: USA
  • Depth: 2.71 in
  • Dielectric Strength: 1000 V, 70 mm
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated copper lug. The line side lug of this block is rated to 200A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 3/0 AWG copper wires. The four load side terminals will accept 14 AWG to 2 AWG copper wires. This block can be mounted on 35 mm DIN rail. This block is 3.61 inches tall, 1.21 inches wide and 2.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
QTY
  • Product Description
  • Specifications
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated copper lug. The line side lug of this block is rated to 200A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 3/0 AWG copper wires. The four load side terminals will accept 14 AWG to 2 AWG copper wires. This block can be mounted on 35 mm DIN rail. This block is 3.61 inches tall, 1.21 inches wide and 2.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
  • Physical Attributes
    • Wire Stripping Length : load: 0.69 in for bottom connection, line: 0.88 in, load: 0.69 in for top connection
    • Color Of Enclosure : grey
  • Complementary Attributes
    • Line Rated Current : 200-200 A copper
    • Ue Rated Operational Voltage : 600 V AC/DC
  • Important Information Attributes
    • Persona Type Ids : LC, OM8, PB
    • Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Number Of Cables : line 1 , AWG 14...AWG 3/0, copper, load 4 , AWG 14...AWG 2, copper
    • Number Of Terminals : 1 line, 4 load
    • Tightening Torque : line 180 lb.in, AWG 8...AWG 3/0, copper, line 50 lb.in, AWG 14...AWG 10, copper, load 50 lb.in, AWG 8...AWG 2, copper, load 40 lb.in, AWG 14...AWG 10, copper
    • Connections Terminals : line lug 180 lbf.in AWG 8...AWG 3/0 copper, line lug 50 lbf.in AWG 14...AWG 10 copper, load lug 50 lbf.in AWG 8...AWG 2 copper, load lug 40 lbf.in AWG 14...AWG 10 copper
    • Certificate Agency : CE, UL listed file E323110 CCN QPQS, CSA file 70361 class 6228 01
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1911
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Dielectric Strength : 1000 V 70 mm² IEC 60947-7-1
    • Electrical Connection : tin plated copper lugs
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free product
    • Material : thermoplastic: block
    • Mounting Support : 35 mm DIN rail
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : NSYEB
    • Returnability : Yes
    • Short Circuit Current : 100 kA
    • Sustainable Packaging : Yes
    • Color Of Enclosure : grey
    • Warranty In Months : 18
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 3.61 in
    • Width Nominal : 1.21 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-257 °F
    • Eu Rohs Directive : Compliant
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Power Distribution Block
    • Range Of Product : NSYEB
  • Specifications
    • Country of Origin : United States
    • Depth : 2.71 in
