Power distribution block, Linergy, enclosed, 115A CU, 600V, 1 line side lug, 4 load side lug, AL lug

ENCLOSED POWER BLOCK

SQDNSYEBAD11614 NSYEBAD11614 785901015420
37.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Power distribution block, Linergy, enclosed, 115A CU, 600V, 1 line side lug, 4 load side lug, AL lug-1
  • Country of Origin: USA
  • Depth: 1.71 in
  • Dielectric Strength: 1000 V, 35 mm
  • Height: 4.14 in
  • Short Circuit Current Rating: 65 kA
  • Width: 0.85 in

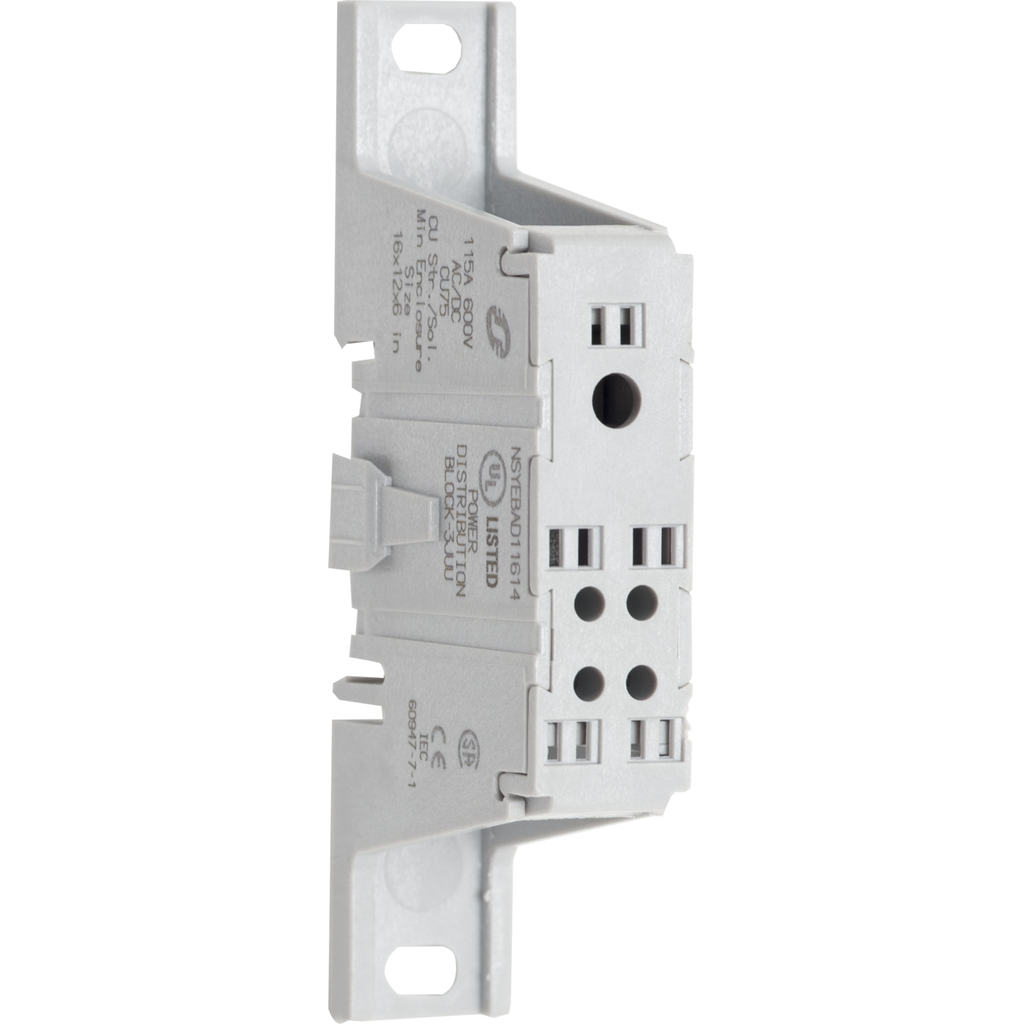

NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 65 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 115A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 2 AWG copper wires. The four load side terminals will accept 14 AWG to 10 AWG copper wires. This block can be mounted on 35 mm DIN rail or can be mounted directly to a panel. This block is 4.14 inches tall, 0.85 inches wide and 1.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
QTY
  • Product Description
  • Specifications
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 65 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 115A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 2 AWG copper wires. The four load side terminals will accept 14 AWG to 10 AWG copper wires. This block can be mounted on 35 mm DIN rail or can be mounted directly to a panel. This block is 4.14 inches tall, 0.85 inches wide and 1.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
  • Specifications
    • Country of Origin : United States
    • Width : 0.85 in
    • Height : 4.14 in
    • Range Of Product : NSYEB
    • Product Or Component Type : Power Distribution Block
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Compliant
  • Environment
    • Product Certifications : UL listed file E323110 CCN QPQS || CE || CSA file 70361 class 6228 01
    • Ambient Air Temperature For Operation : -40-257 °F
    • Dielectric Strength : 1000 V 35 mm² IEC 60947-7-1
  • Complementary
    • Height : 4.14 in
    • Tightening Torque : line 50 lb.in, AWG 3...AWG 2, copper || line 45 lb.in, AWG 6...AWG 4, copper || line 40 lb.in, AWG 8, copper || line 35 lb.in, AWG 14...AWG 10, copper || load 35 lb.in, AWG 14...AWG 10, copper
    • Mounting Support : panel || 35 mm DIN rail
    • Electrical Connection : tin plated aluminium lugs
    • Connections - Terminals : line lug 50 lbf.in AWG 3...AWG 2 copper || line lug 45 lbf.in AWG 6...AWG 4 copper || line lug 40 lbf.in AWG 8 copper || line lug 35 lbf.in AWG 14...AWG 10 copper || load lug 35 lbf.in AWG 14...AWG 10 copper
    • Fixing Mode : by screws 10
    • Wire Stripping Length : line: 0.63 in || load: 0.44 in for top connection || load: 0.69 in for bottom connection
    • Short-Circuit Current : 65 kA
    • Number Of Cables : line 1 , AWG 14...AWG 2, copper || load 4 , AWG 14...AWG 10, copper
    • Material : thermoplastic: block
    • Width : 0.85 in
    • Depth : 1.71 in
    • Colour Of Enclosure : grey
    • Line Rated Current : 115-115 A copper
    • [Ue] Rated Operational Voltage : 600 V AC/DC
    • Number Of Terminals : 1 line || 4 load
