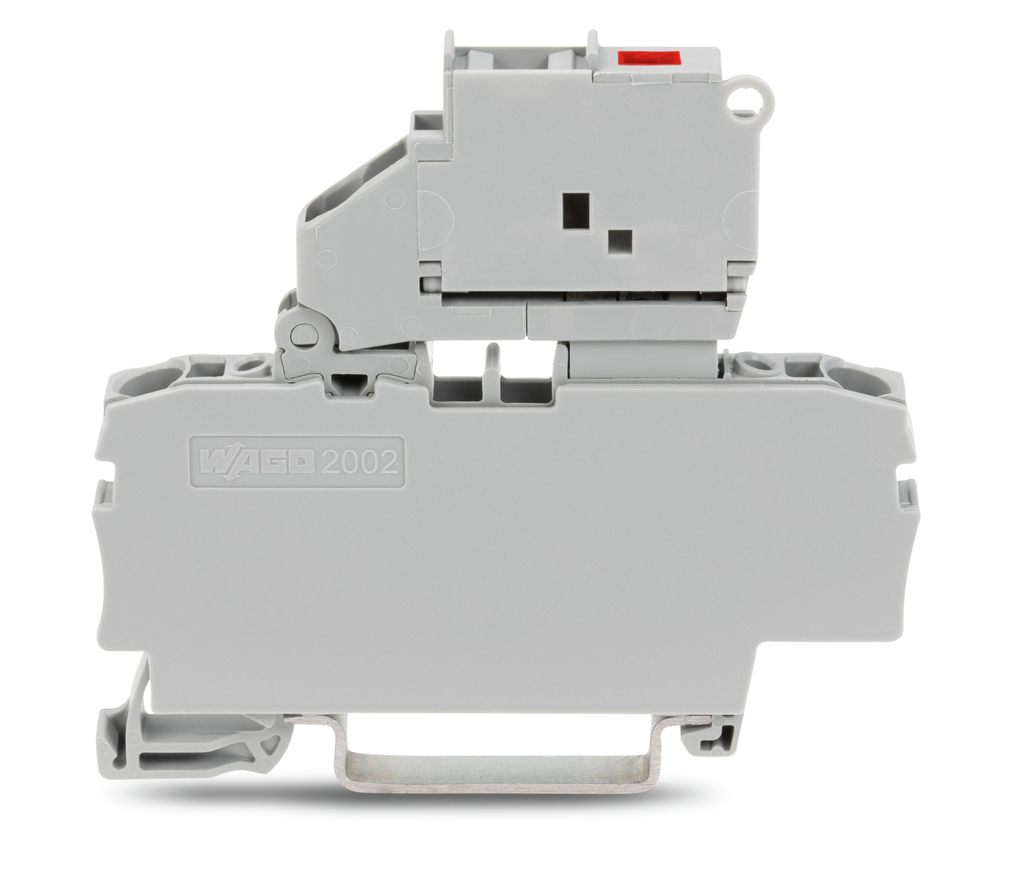

2-Conductor Fuse Terminal Block; With Pivoting Fuse Holder; With End Plate; For 5 X 20 Mm Miniature Metric Fuse; With Blown Fuse Indication By LED; 120 V; For DIN-rail 35 X 15 And 35 X 7.5; 2.5 Mm²; Push-in CAGE CLAMP®; 2,50 Mm²; Gray

2C FUSE TB 120V 5X20 GRAY

WGO200216111000867 200216111000867 WGO200216111000867
12.53 / EA
http://schema.org/OutOfStock
  • Country of Origin: Germany
  • Height: 2.602 in, 66.1 mm
  • Line Rated Current: 6.3 A
  • Weight: 13.601 g
  • Width: 0.244 in, 6.2 mm
Fuse terminal block, 2002 Series, Push-in CAGE CLAMP® This fuse terminal block (item number 2002-1611/1000-867) is designed to connect conductors quickly and easily. Strip lengths must be between 10 and 12 mm when connecting conductors to this fuse terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector is highly versatile. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². This product is designed for specific Ex applications (please refer to the product datasheet).
QTY
  • Product Description
  • Specifications
Fuse terminal block, 2002 Series, Push-in CAGE CLAMP® This fuse terminal block (item number 2002-1611/1000-867) is designed to connect conductors quickly and easily. Strip lengths must be between 10 and 12 mm when connecting conductors to this fuse terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector is highly versatile. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². This product is designed for specific Ex applications (please refer to the product datasheet).
  • Specifications
    • Country of Origin : Germany
    • Height : 2.602 inches (66.1 mm)
    • Width : 0.244 inches (6.2 mm)
    • Weight : 13.601 g
    • Single-stranded conductor max. : 12 AWG (4 mm²)
    • Single-stranded conductor min. : 22 AWG (0.25 mm²)
    • Fine-stranded conductor max. : 12 AWG (4 mm²)
    • Fine-stranded conductor min. : 12 AWG (0.25 mm²)
    • Rated current : 6.3 A
    • Connection : Push-in CAGE CLAMP®
    • Type of operation : Operating tool
    • Connectable conductor materials : Copper
    • Nominal cross-section mm² : 2.5 mm²
    • Stripping length of 1 mm : 10 mm
    • Stripping length up to 1 mm : 12 mm
    • Total number of terminal points : 2
    • Total number of potentials : 1
    • Wiring Type : Front-entry wiring
    • Color : gray
    • Flammability class according to UL94 : V0
    • Continuous Use Temperature : -60 … +105 °C
