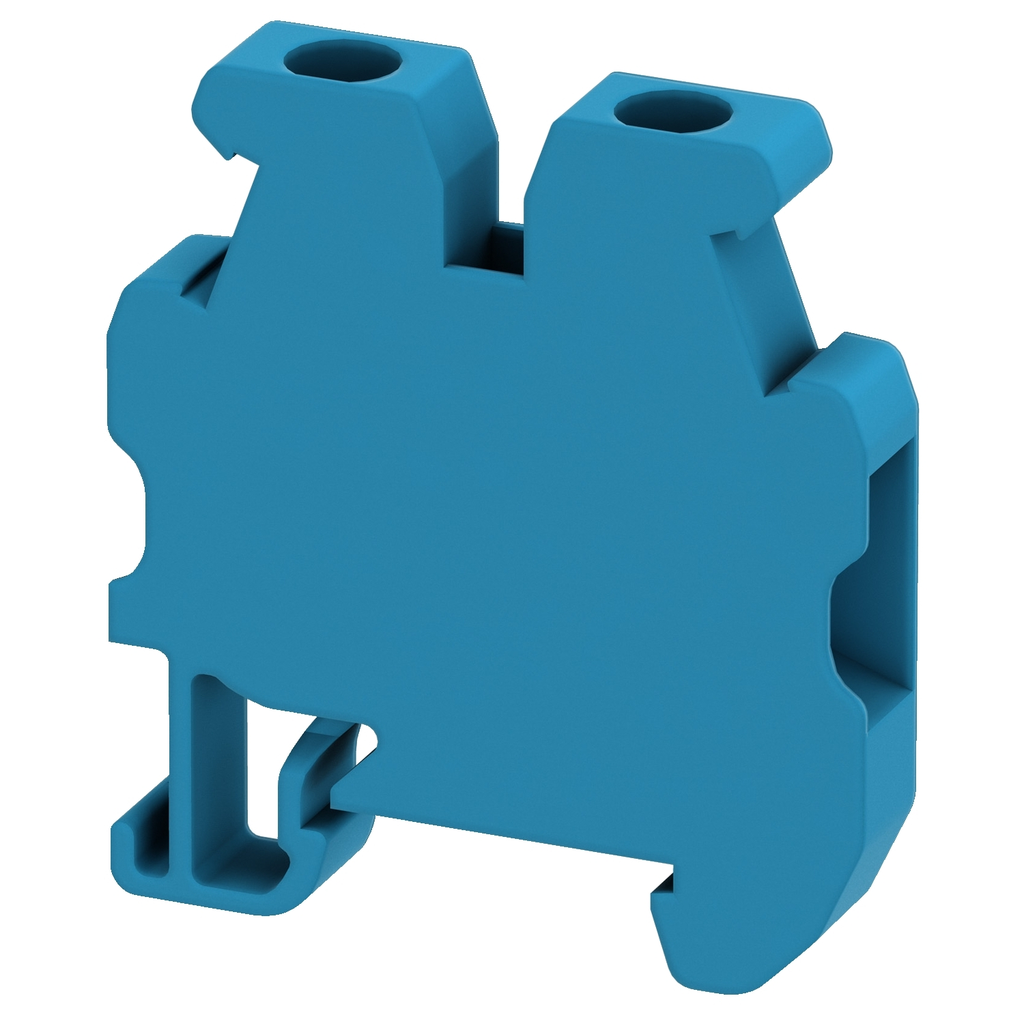

Linergy TR is terminal block for Miniature passthrough type. It belongs to linergy Miniature passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has Blue surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
• Height : 34 mm
• Number Of Terminals : 2
• Connection Position : sideways
• Number Of Measurement Input : 1
• Tool Type : connection screwdriver || disconnection screwdriver
• Flame Retardance : V0 0.8 mm UL 94
• Connections - Terminals : 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
• Wire Stripping Length : 9 mm
• Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
• Dielectric Constant : 3.7 at 1 MHz
• Cable Cross Section : 0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end
• Material : polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
• Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
• Width : 5.2 mm
• Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
• Tightening Torque : 0.5-0.6 N.m
• Product Compatibility : Spacial enclosures
• Line Rated Current : 24-24 A EN/IEC 60947-7-1 || 20-20 A UL || 20-20 A CSA
• Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
• [Ue] Rated Operational Voltage : 600 V CSA || 500 V EN/IEC 60947-7-1 || 600 V UL
• Specifications
• Country of Origin : Turkey
• Width : 5.2 mm
• Height : 34 mm
• Terminal Block Type : passthrough
• Accessory / Separate Part Category : connection accessory
• Product Or Component Type : mini terminal block
• Product Name : Linergy TR
• Length : 30 mm
• Range : Linergy
• Mounting Mode : clip-on
• Terminal Block Level : 1
• Nominal Cross Section : 2.5 mm²
• Quantity Per Set : set of 50
• Color : Blue
• Device Short Name : TRV
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2309018EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : 8e5413ff-f1a1-4909-ad03-977097e33bd2
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : N/A
• Take-Back : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 4.521554587
• Environment
• Product Certifications : CSA || UL || VDE
• Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
• Dielectric Strength : 1000 V IEC 60243-1
