Terminal Blocks, Linergy, fused block, 10A, 600V, screw terminal, for 6.3X32mm fuse, 2 points, black

SCREW TERMINAL FUSE 6X32 2PT

SQDNSYTRV42SF6 NSYTRV42SF6 3606480532368
24.06 / EA
http://schema.org/OutOfStock

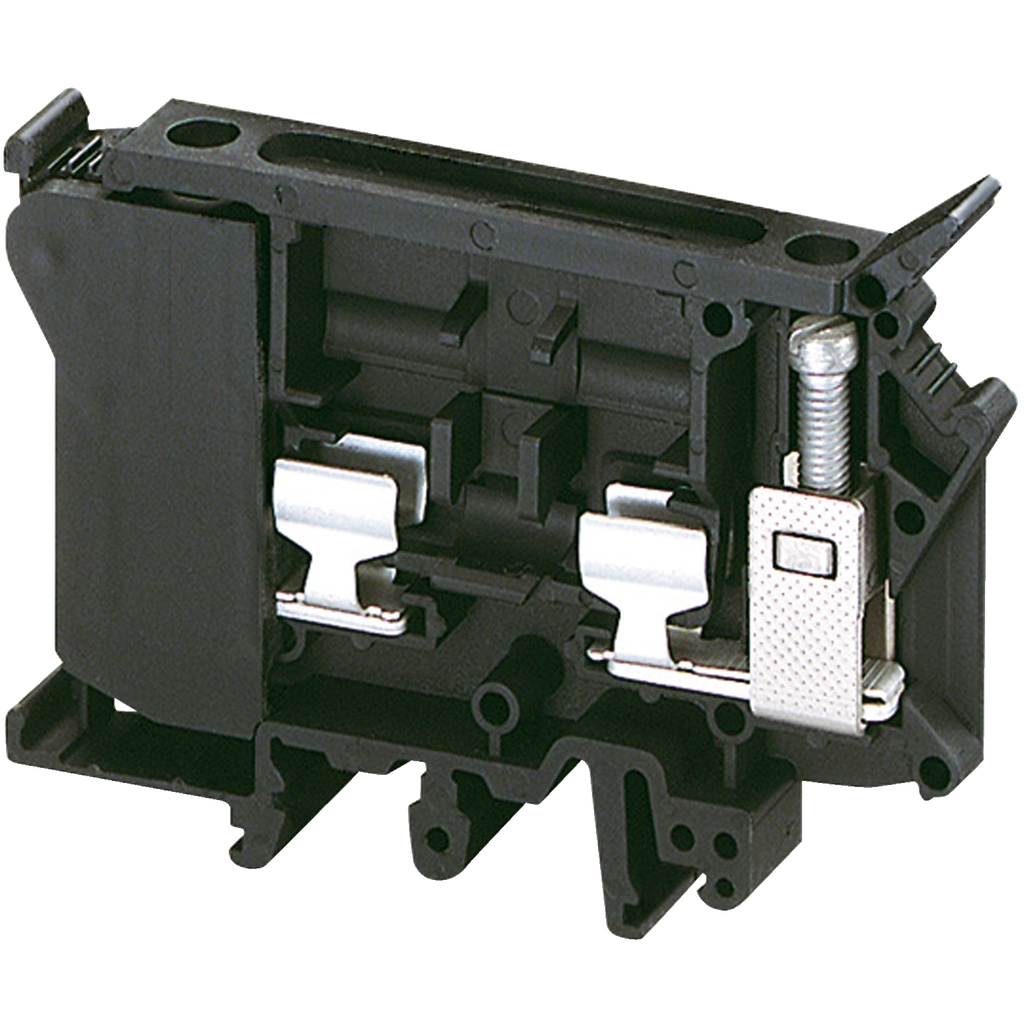

Mayer-DDS-Terminal Blocks, Linergy, fused block, 10A, 600V, screw terminal, for 6.3X32mm fuse, 2 points, black-1
  • Country of Origin: Turkey
  • Dielectric Strength: 1000 V
  • Height: 60.5 mm
  • Length: 79 mm
  • Net Weight: 34.2 g
  • Warranty Length: 18 mth
  • Weight: 34.2 g
  • Width: 10.2 mm
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
QTY
  • Product Description
  • Specifications
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
  • Environment
    • Product Certifications : CSA || UL
    • Dielectric Strength : 1000 V IEC 60243-1
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Mercury Free : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.192787129
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 14.4214018
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2309018EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Carbon Footprint Of The Installation Phase [A5] : 0.0026006
    • Circularity Profile : N/A
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 14.13407922
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.1 kg CO2 eq.
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Eu Rohs Directive : Compliant
  • Complementary
    • Number Of Terminals : 2
    • Cable Cross Section : 0.2-4 mm², flexible without cable end || 0.2-4 mm², flexible with cable end || 0.5-16 mm², solid with cable end
    • Net Weight : 34.2 g
    • Dielectric Constant : 3.7 at 1 MHz
    • Material : polyamide 6/6: insulating case
    • Width : 10.2 mm
    • Line Rated Current : 10-10 A EN/IEC 60947-7-1 || 10-10 A UL || 10-10 A CSA
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    • [Ue] Rated Operational Voltage : 500 V EN/IEC 60947-7-1 || 600 V UL || 600 V CSA
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    • Fuse Size : 6.3 x 32 mm
    • Height : 60.5 mm
    • Connections - Terminals : 1 x screw terminal upstream || 1 x screw terminal downstream
    • Connection Position : sideways
    • Number Of Measurement Input : 0
    • Tool Type : connection screwdriver || disconnection screwdriver
    • Flame Retardance : V0 0.8 mm UL 94
    • Wire Stripping Length : 9 mm
    • Resistivity : 10000 Ω.cm IEC 60093 || 10000 Ω.cm VDE 0303-T30
    • Surface Resistance : 1000 MOhm IEC 60093 || 1000 MOhm VDE 0303-T30
    • Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
    • Tightening Torque : 0.6-0.8 N.m
    • Product Compatibility : Spacial enclosures
  • Specifications
    • Country of Origin : Turkey
    • Width : 10.2 mm
    • Height : 60.5 mm
    • Weight : 34.2 g
    • Terminal Block Type : fused disconnect
    • Product Or Component Type : terminal block
    • Product Name : Linergy TR
    • Length : 79 mm
    • Terminal Block Level : 1
    • Nominal Cross Section : 16 mm²
    • Range : Linergy
    • Mounting Mode : clip-on
    • Quantity Per Set : set of 50
    • Color : Black
    • Device Application : protection
    • Device Short Name : TRV
