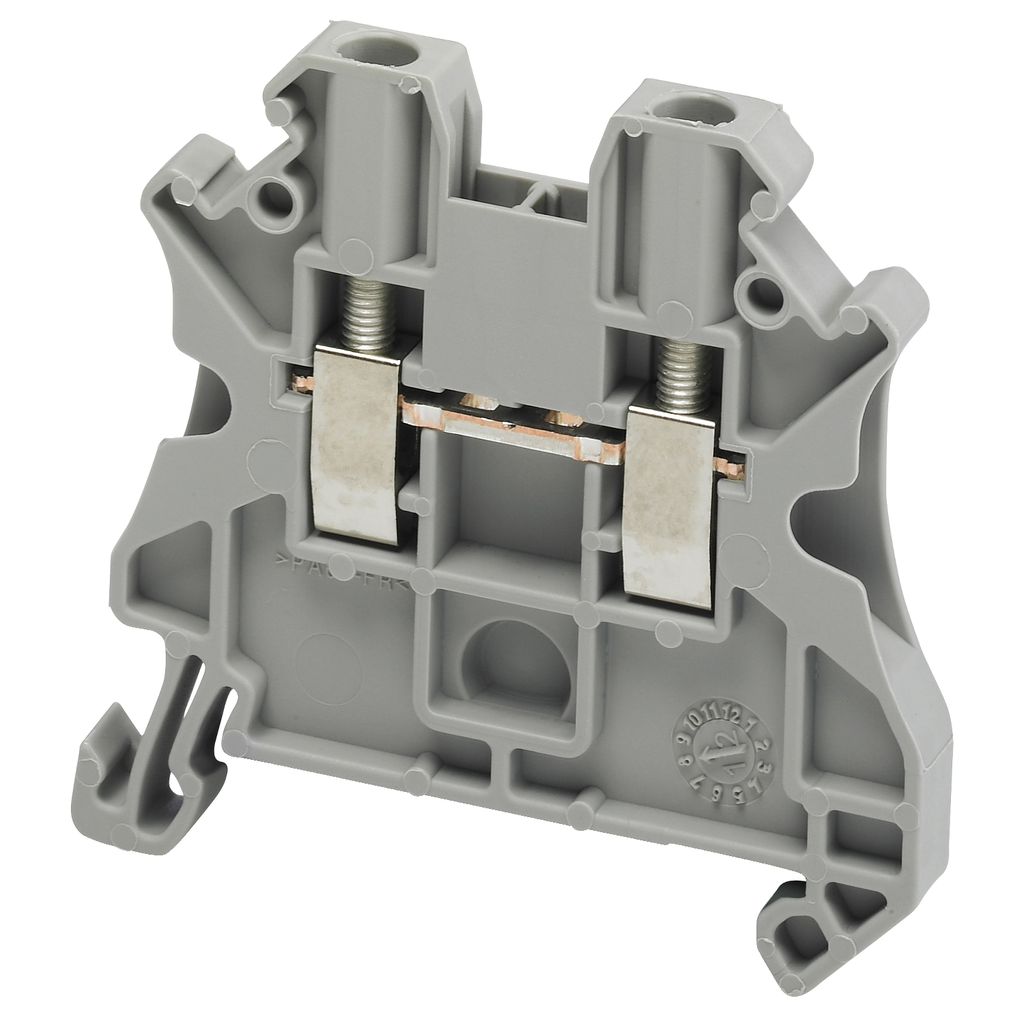

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

• Environment
• Product Certifications : LR || EAC || VDE || cURus || DNV || CSA || IEC-Ex || ATEX || GL
• Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
• Dielectric Strength : 1000 V IEC 60243-1
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2309018EN
• Sustainable Offer Status : Green Premium product
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile : N/A
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Complementary
• Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
• Height : 47.5 mm
• Number Of Terminals : 2
• Connection Position : sideways
• Number Of Measurement Input : 2
• Tool Type : connection screwdriver || disconnection screwdriver
• Net Weight : 8.2 g
• Flame Retardance : V0 0.8 mm UL 94
• Connections - Terminals : 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
• Wire Stripping Length : 9 mm
• Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
• Dielectric Constant : 3.7 at 1 MHz
• Cable Cross Section : 0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end
• Material : polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
• Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
• Width : 5.2 mm
• Range Compatibility : Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys || Thalassa Thalassa TBP || Thalassa Thalassa TBS
• Tightening Torque : 0.5-0.6 N.m
• Product Compatibility : Spacial enclosures
• Line Rated Current : 24-24 A EN/IEC 60947-7-1 || 22-22 A ATEX Exe II Ex II 2 GD || 20-20 A cURus || 20-20 A CSA
• Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
• [Ue] Rated Operational Voltage : 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
• Specifications
• Terminal Block Type : passthrough
• Accessory / Separate Part Category : connection accessory
• Product Or Component Type : terminal block
• Product Name : Linergy TR
• Length : 47.7 mm
• Range : Linergy
• Mounting Mode : clip-on
• Terminal Block Level : 1
• Nominal Cross Section : 2.5 mm²
• Quantity Per Set : set of 50
• Color : Gray
• Device Short Name : TRV
