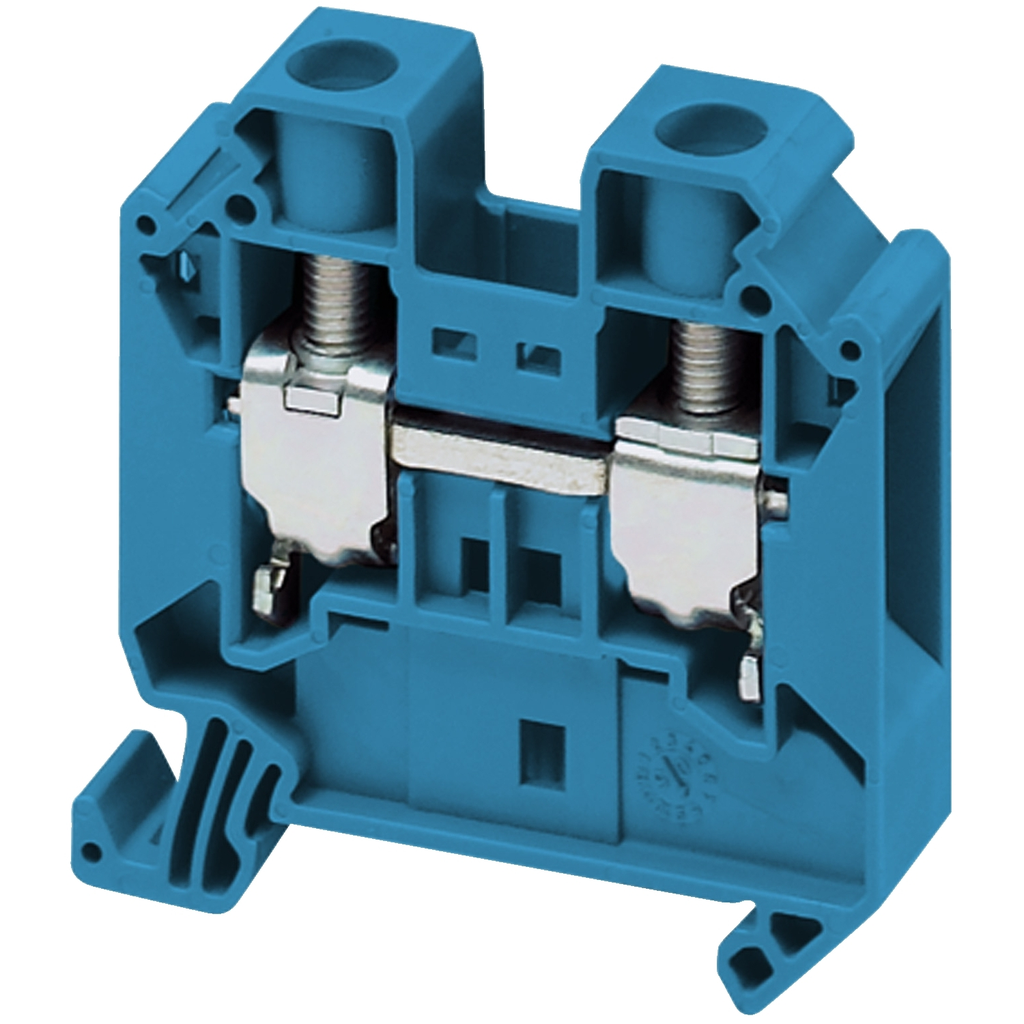

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 16 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 76A conforming to EN/IEC 60947-7-1 and 85A conforming to CSA/UL. It has blue, surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).

• Environment
• Product Certifications : DNV || VDE || UL || CSA || GL
• Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
• Dielectric Strength : 1000 V IEC 60243-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2309018EN
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 14.13407922
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.183577939
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
• Eu Rohs Directive : Compliant
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.083580955
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 14.40767677
• Complementary
• Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
• Height : 55 mm
• Number Of Terminals : 2
• Connection Position : sideways
• Number Of Measurement Input : 2
• Tool Type : connection screwdriver || disconnection screwdriver
• Net Weight : 30 g
• Flame Retardance : V0 0.8 mm UL 94
• Connections - Terminals : 1 x screw terminal upstream M5) || 1 x screw terminal downstream M5)
• Wire Stripping Length : 14 mm
• Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
• Dielectric Constant : 3.7 at 1 MHz
• Cable Cross Section : 0.2-10 mm², flexible with cable end || 0.2-16 mm², solid with cable end || 1.5-25 mm², solid without cable end || 1.5-25 mm², flexible without cable end
• Material : polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
• Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
• Width : 12.2 mm
• Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
• Tightening Torque : 2.5-3 N.m
• Product Compatibility : Spacial enclosures
• Line Rated Current : 76-76 A EN/IEC 60947-7-1 || 85-85 A UL || 85-85 A CSA
• Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
• [Ue] Rated Operational Voltage : 1000 V EN/IEC 60947-7-1 || 600 V CSA || 600 V UL
• Specifications
• Country of Origin : Turkey
• Width : 12.2 mm
• Height : 55 mm
• Weight : 30 g
• Terminal Block Type : passthrough
• Accessory / Separate Part Category : connection accessory
• Product Or Component Type : terminal block
• Product Name : Linergy TR
• Length : 55.5 mm
• Range : Linergy
• Mounting Mode : clip-on
• Terminal Block Level : 1
• Nominal Cross Section : 16 mm²
• Quantity Per Set : set of 50
• Color : Blue
• Device Short Name : TRV
