SQUARE D

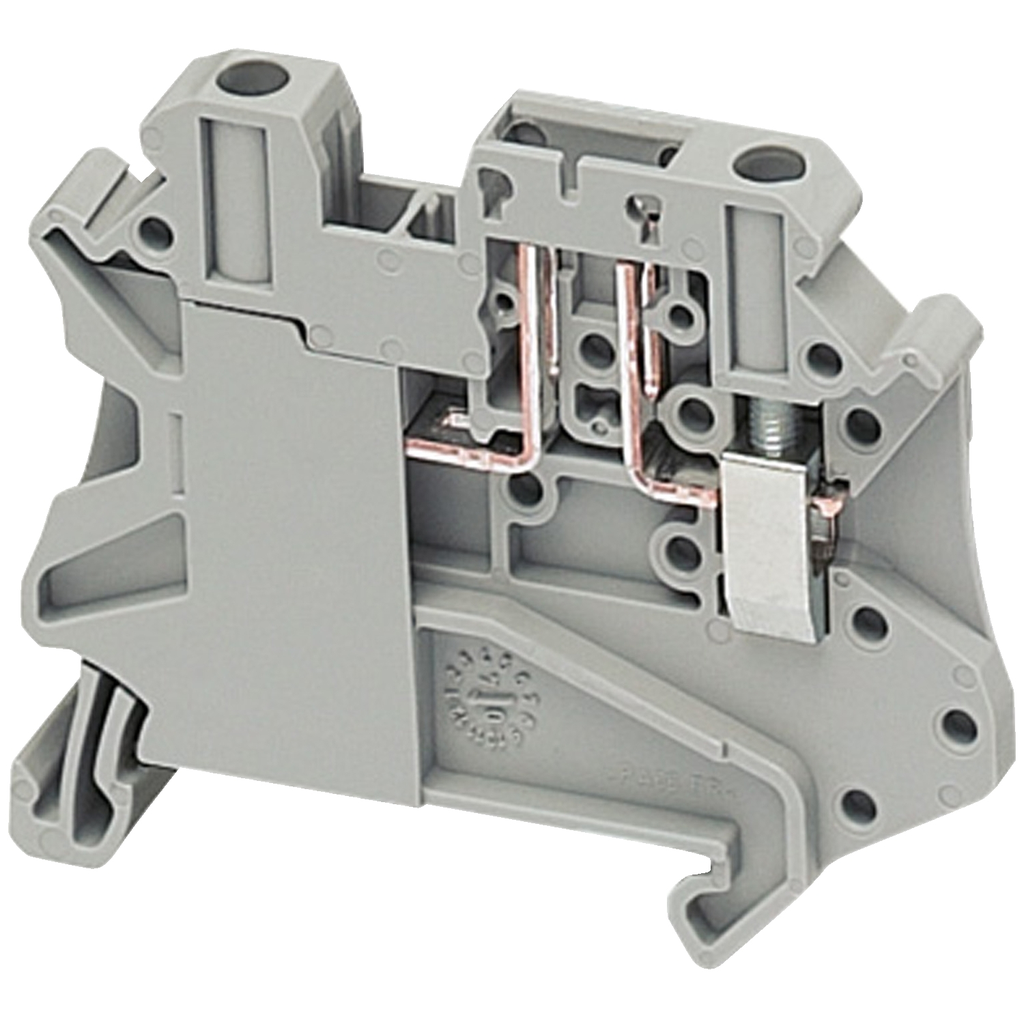

Terminal block, spring type, basic disconnect terminal, 2 points, 4mm², grey

Screw terminal Basic Disc, 2p

SQDNSYTRV42TB NSYTRV42TB 3606480532313
3.98 / EA
http://schema.org/OutOfStock
Mayer-DDS-Terminal block, spring type, basic disconnect terminal, 2 points, 4mm², grey-1
  • Country of Origin: Germany
  • Dielectric Strength: 1000 V
  • Height: 47.5 mm
  • Length: 57.8 mm
  • Net Weight: 12.9 g
  • Warranty Length: 18 mth
  • Weight: 12.9 g
  • Width: 6.2 mm
Linergy TR is terminal block for Linergy. It belongs to Disconnect with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1, 16A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x2 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
QTY
  • Product Description
  • Features
  • Specifications
Linergy TR is terminal block for Linergy. It belongs to Disconnect with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1, 16A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x2 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL
    • Dielectric Strength : 1000 V IEC 60243-1
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Mercury Free : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Take-Back : No
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.072946481
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 6.041540027
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2309018EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 8e5413ff-f1a1-4909-ad03-977097e33bd2
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Carbon Footprint Of The Installation Phase [A5] : 0.000984011
    • Circularity Profile : N/A
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 5.932823377
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Number Of Terminals : 2
    • Cable Cross Section : 0.14-6 mm², flexible without cable end || 0.14-6 mm², solid
    • Net Weight : 12.9 g
    • Dielectric Constant : 3.7 at 1 MHz
    • Material : polyamide 6/6: insulating case
    • Width : 6.2 mm
    • Line Rated Current : 20-20 A EN/IEC 60947-7-1 || 16-16 A CSA || 16-16 A UL
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    • [Ue] Rated Operational Voltage : 500 V EN/IEC 60947-7-1 || 600 V CSA || 600 V UL
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    • Fuse Size : 5 x 20 mm || 6 x 32 mm
    • Height : 47.5 mm
    • Connections - Terminals : 1 x screw terminal upstream || 1 x screw terminal downstream
    • Connection Position : sideways
    • Number Of Measurement Input : 1
    • Tool Type : connection screwdriver || disconnection screwdriver
    • Flame Retardance : V0 0.8 mm UL 94
    • Wire Stripping Length : 9 mm
    • Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    • Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    • Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || TeSys
    • Tightening Torque : 0.6-0.8 N.m
    • Product Compatibility : Spacial enclosures
  • Specifications
    • Country of Origin : Germany
    • Width : 6.2 mm
    • Height : 47.5 mm
    • Weight : 12.9 g
    • Terminal Block Type : removable carrier disconnect
    • Product Or Component Type : terminal block
    • Product Name : Linergy TR
    • Length : 57.8 mm
    • Terminal Block Level : 1
    • Nominal Cross Section : 4 mm²
    • Range : Linergy
    • Mounting Mode : clip-on
    • Quantity Per Set : set of 50
    • Color : Gray
    • Associated Connection Component : blade || diode || cylindrical fuse
    • Device Short Name : TRV
