Terminal block, Linergy TR, push-in type, feed through, 3 points, 4mm², blue, set of 50

Push-in terminal, 3pts, 4mm,

SQDNSYTRP43BL NSYTRP43BL 3606480533303
2.10 / EA
http://schema.org/OutOfStock

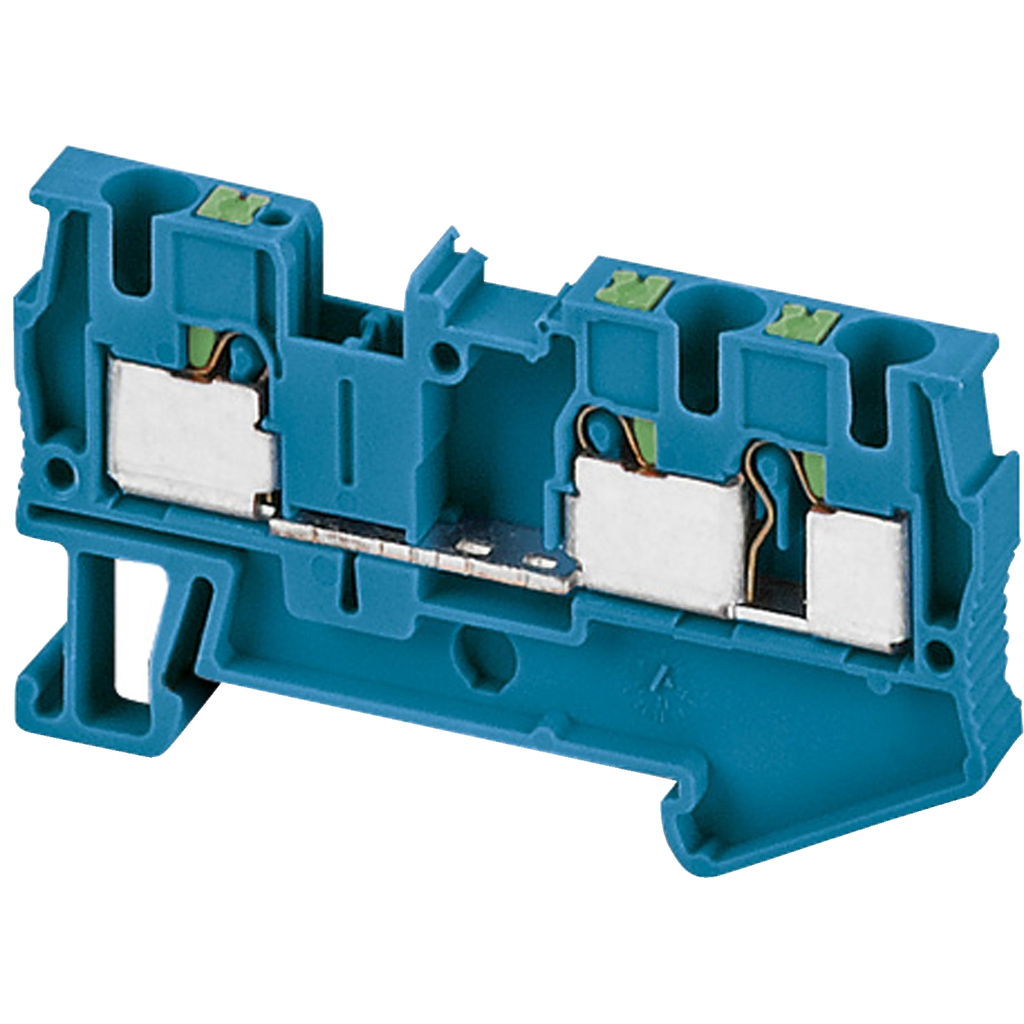

Mayer-DDS-Terminal block, Linergy TR, push-in type, feed through, 3 points, 4mm², blue, set of 50-1
  • Dielectric Strength: 1000 V
  • Height: 36.5 mm
  • Length: 66.5 mm
  • Net Weight: 11.3 g
  • Warranty Length: 18 mth
  • Weight: 11.3 g
  • Width: 6.2 mm
QTY
  • Specifications
  • Environment
    • Product Certifications : UL || CSA || GL
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    • Dielectric Strength : 1000 V IEC 60243-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2309019EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 6.022521516
  • Complementary
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    • Height : 36.5 mm
    • Number Of Terminals : 3
    • Connections - Terminals : 1 x push-in upstream || 2 x push-in downstream
    • Cable Cross Section : 0.2-4 mm², flexible without cable end || 0.2-6 mm², solid with cable end || 0.8-4 mm², flexible with cable end || 0.2-4 mm², solid without cable end
    • Connection Position : top
    • Number Of Measurement Input : 2
    • Tool Type : connection without tool || disconnection flat screwdriver
    • Net Weight : 11.3 g
    • Flame Retardance : V0 0.8 mm UL 94
    • Wire Stripping Length : 12 mm
    • Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    • Dielectric Constant : 3.7 at 1 MHz
    • Material : polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    • Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    • Width : 6.2 mm
    • Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
    • Product Compatibility : Spacial enclosures
    • Line Rated Current : 32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A UL
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    • [Ue] Rated Operational Voltage : 800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V UL
  • Specifications
    • Country of Origin : Poland
    • Width : 6.2 mm
    • Height : 36.5 mm
    • Weight : 11.3 g
    • Terminal Block Type : passthrough
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : terminal block
    • Product Name : Linergy TR
    • Length : 66.5 mm
    • Range : Linergy
    • Mounting Mode : clip-on
    • Terminal Block Level : 1
    • Nominal Cross Section : 4 mm²
    • Quantity Per Set : set of 50
    • Color : Blue
    • Device Short Name : TRP
