SQUARE D

Terminal block, Linergy TR, push-in type, feed through, 2 level, 4 points, 2.5mm², grey, set of 50

Push-in terminal 2Level 4pts

SQDNSYTRP24D NSYTRP24D 3606480533235
10.87 / EA
http://schema.org/OutOfStock

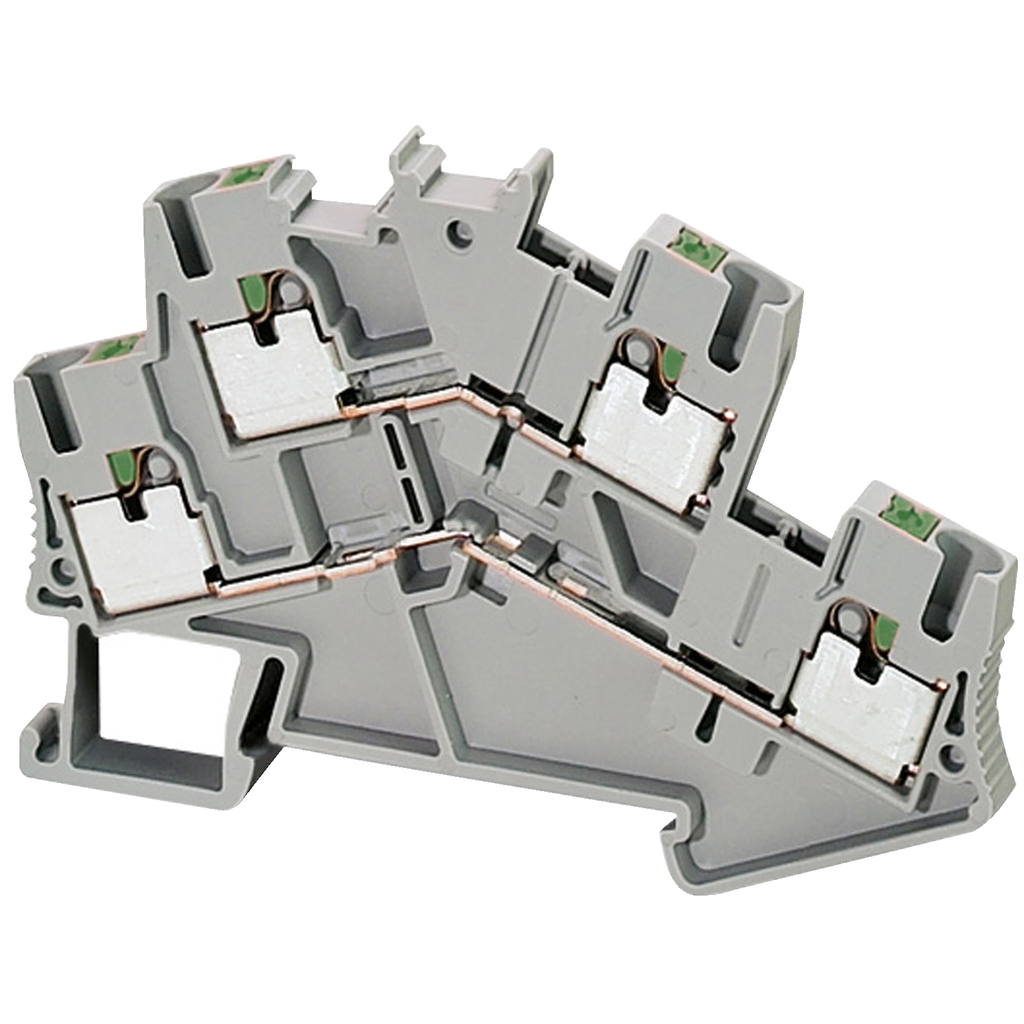

Mayer-DDS-Terminal block, Linergy TR, push-in type, feed through, 2 level, 4 points, 2.5mm², grey, set of 50-1
  • Country of Origin: China
  • Dielectric Strength: 1000 V
  • Height: 55 mm
  • Length: 78 mm
  • Net Weight: 14.3 g
  • Weight: 14.3 g
  • Width: 5.2 mm
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment Mounting by clip-on and top connection by double-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
QTY
  • Product Description
  • Specifications
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment Mounting by clip-on and top connection by double-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2309019EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 4.4787
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.072182771
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.029898955
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 4.583670332
  • Specifications
    • Country of Origin : China
    • Width : 5.2 mm
    • Height : 55 mm
    • Weight : 14.3 g
    • Terminal Block Type : passthrough
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : terminal block
    • Product Name : Linergy TR
    • Length : 78 mm
    • Range : Linergy
    • Mounting Mode : clip-on
    • Terminal Block Level : 2
    • Nominal Cross Section : 2.5 mm²
    • Quantity Per Set : set of 50
    • Color : Gray
    • Device Short Name : TRP
  • Complementary
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    • Height : 55 mm
    • Number Of Terminals : 2
    • Connections - Terminals : 1 x push-in upstream || 1 x push-in downstream
    • Cable Cross Section : 0.14-2.5 mm², flexible without cable end || 0.14-4 mm², solid with cable end || 0.2-2.5 mm², solid without cable end || 0.8-2.5 mm², flexible with cable end
    • Connection Position : inclined
    • Number Of Measurement Input : 4
    • Tool Type : connection without tool || disconnection flat screwdriver
    • Net Weight : 14.3 g
    • Flame Retardance : V0 0.8 mm UL 94
    • Wire Stripping Length : 10 mm
    • Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    • Dielectric Constant : 3.7 at 1 MHz
    • Material : polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    • Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    • Width : 5.2 mm
    • Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
    • Product Compatibility : Spacial enclosures
    • Line Rated Current : 20-20 A CSA || 20-20 A UL || 22-22 A EN/IEC 60947-7-1 || 19.5-19.5 A
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    • [Ue] Rated Operational Voltage : 600 V CSA || 500 V EN/IEC 60947-7-1 || 440 V || 600 V UL
  • Environment
    • Product Certifications : CSA || GL || UL || VDE
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    • Dielectric Strength : 1000 V IEC 60243-1
