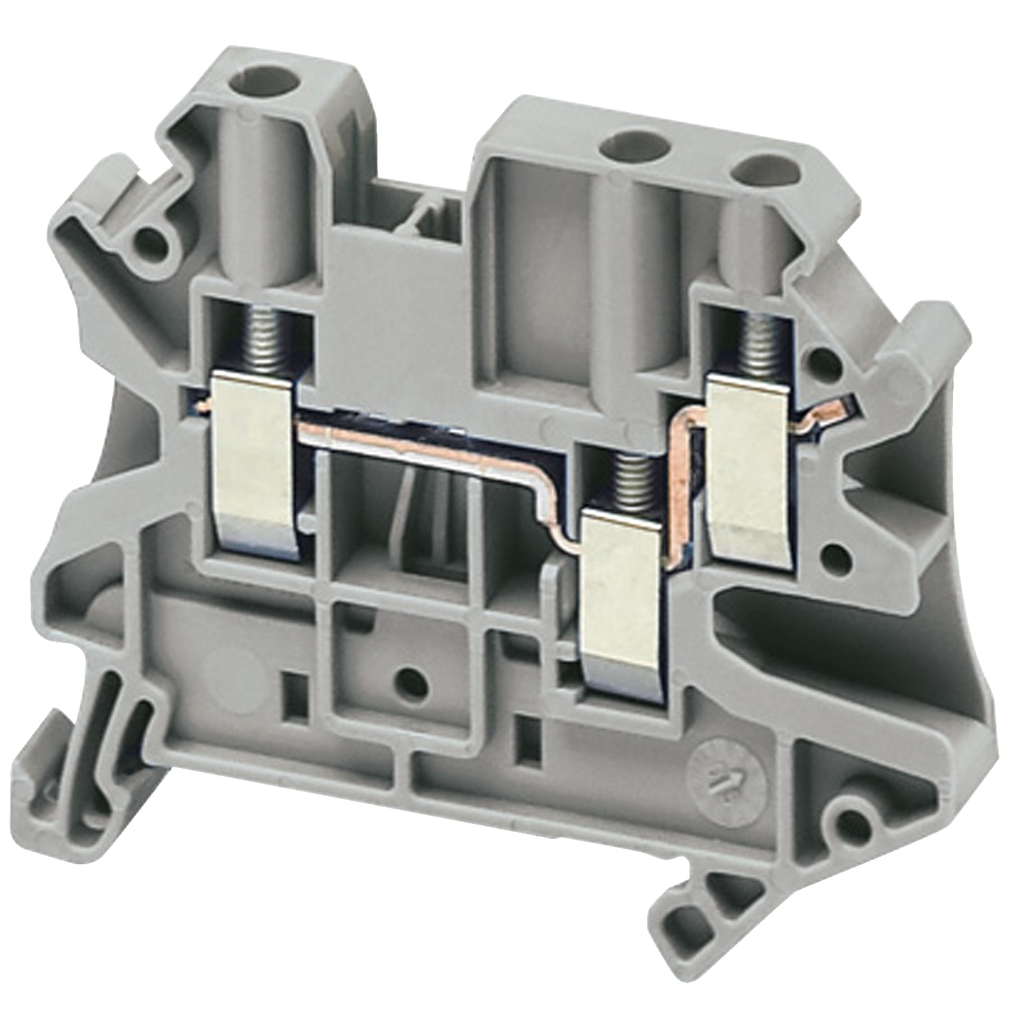

Terminal Blocks, Linergy, feed through, 30A, 150V, screw termination, 3 points, 26AWG to 10AWG, grey

Screw terminal, 3pts, 4mm gre

SQDNSYTRV43 NSYTRV43 3606480531972
6.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-Terminal Blocks, Linergy, feed through, 30A, 150V, screw termination, 3 points, 26AWG to 10AWG, grey-1
  • Country of Origin: Germany
  • Dielectric Strength: 1000 V
  • Height: 47.5 mm
  • Length: 57.8 mm
  • Net Weight: 14 g
  • Warranty Length: 18 mth
  • Weight: 14 g
  • Width: 6.2 mm
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This grey grounding terminal block has 3 terminal points. This terminal block has screw termination. The terminals will accept wires from 26 AWG to 10AWG. With the help of a screw driver the block will mount on 35mm DIN rail. Each block is 1.87 inches tall, 0.24 inches wide and 2.28 inches deep. Each wieghs 0.49 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
QTY
  • Product Description
  • Features
  • Specifications
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This grey grounding terminal block has 3 terminal points. This terminal block has screw termination. The terminals will accept wires from 26 AWG to 10AWG. With the help of a screw driver the block will mount on 35mm DIN rail. Each block is 1.87 inches tall, 0.24 inches wide and 2.28 inches deep. Each wieghs 0.49 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL || GL || DNV
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    • Dielectric Strength : 1000 V IEC 60243-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2309018EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Scip Number : 8e5413ff-f1a1-4909-ad03-977097e33bd2
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 5.932823377
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.078883986
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.035914985
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 6.050389057
  • Complementary
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    • Height : 47.5 mm
    • Number Of Terminals : 3
    • Connection Position : sideways
    • Number Of Measurement Input : 2
    • Tool Type : connection screwdriver || disconnection screwdriver
    • Net Weight : 14 g
    • Flame Retardance : V0 0.8 mm UL 94
    • Connections - Terminals : 1 x screw terminal upstream M3) || 2 x screw terminal downstream M3)
    • Wire Stripping Length : 9 mm
    • Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    • Dielectric Constant : 3.7 at 1 MHz
    • Cable Cross Section : 0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end || 0.14-6 mm², solid without cable end
    • Material : polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    • Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    • Width : 6.2 mm
    • Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
    • Tightening Torque : 0.6-0.8 N.m
    • Product Compatibility : Spacial enclosures
    • Line Rated Current : 32-32 A EN/IEC 60947-7-1 || 30-30 A UL
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    • [Ue] Rated Operational Voltage : 500 V EN/IEC 60947-7-1 || 150 V UL
  • Specifications
    • Country of Origin : Germany
    • Width : 6.2 mm
    • Height : 47.5 mm
    • Weight : 14 g
    • Terminal Block Type : passthrough
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : terminal block
    • Product Name : Linergy TR
    • Length : 57.8 mm
    • Range : Linergy
    • Mounting Mode : clip-on
    • Terminal Block Level : 1
    • Nominal Cross Section : 4 mm²
    • Quantity Per Set : set of 50
    • Color : Gray
    • Device Short Name : TRV
