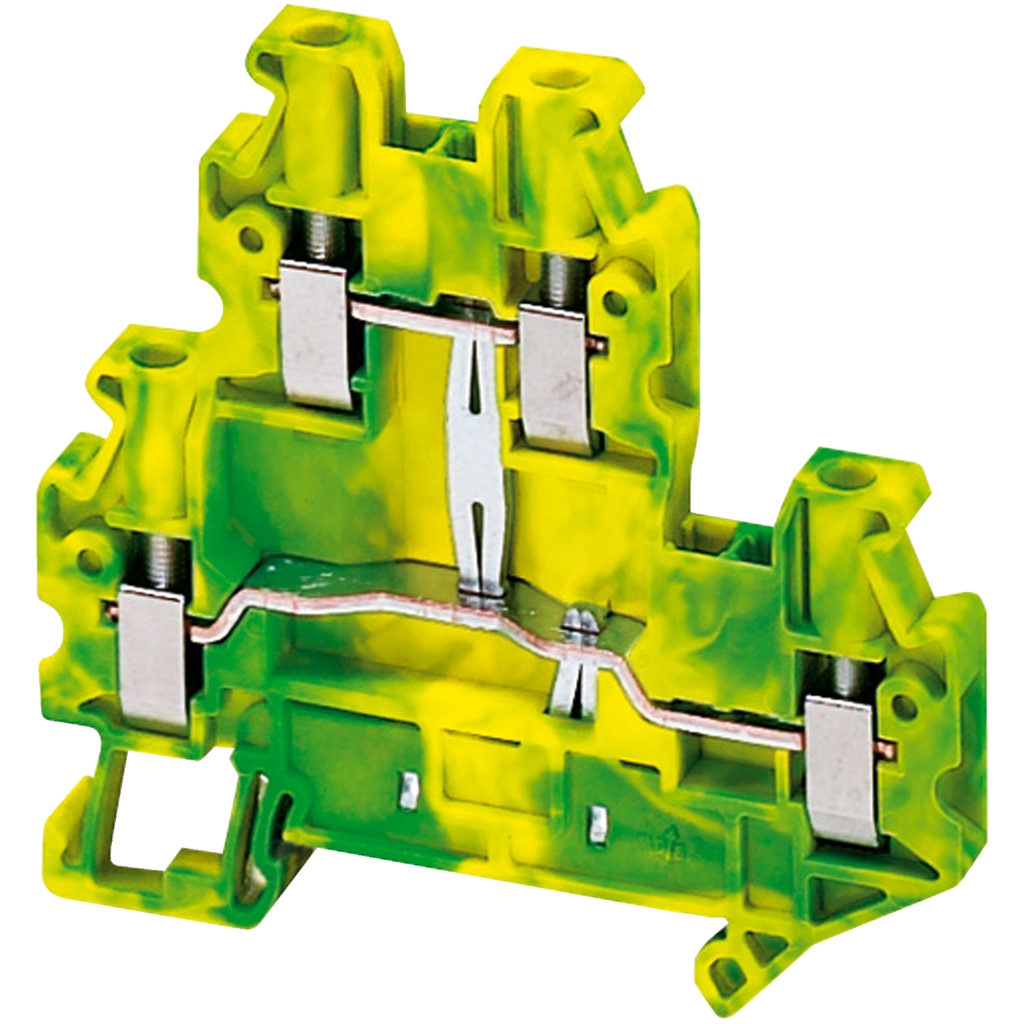

Linergy TR is terminal block for protective earth. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. Mounting by clip-on and top connection by Two-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, IECEx, GL, LR).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : LR || GL || CSA || DNV || UL
• Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
• Dielectric Strength : 1000 V IEC 60243-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2309022EN
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Without Single Use Plastic : Yes
• Scip Number : 8e5413ff-f1a1-4909-ad03-977097e33bd2
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Circularity Profile : N/A
• Take-Back : No
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 6.119775088
• Complementary
• Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
• Height : 65 mm
• Number Of Terminals : 2
• Connections - Terminals : 1 x screw terminal upstream || 1 x screw terminal downstream
• Cable Cross Section : 0.14-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end
• Connection Position : sideways
• Number Of Measurement Input : 4
• Tool Type : connection screwdriver || disconnection screwdriver
• Net Weight : 23.3 g
• Flame Retardance : V0 0.8 mm UL 94
• Wire Stripping Length : 9 mm
• Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
• Dielectric Constant : 3.7 at 1 MHz
• Material : polyamide 6/6: insulating case
• Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
• Width : 6.2 mm
• Range Compatibility : PrismaSeT G || PrismaSeT P || PrismaSeT Pack 250 || PanelSeT || TeSys || Mureva || PrismaSeT XS
• Tightening Torque : 0.6-0.8 N.m
• Product Compatibility : Spacial enclosures
• Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
• Specifications
• Country of Origin : Germany
• Width : 6.2 mm
• Height : 65 mm
• Weight : 23.3 g
• Terminal Block Type : protective earth
• Product Or Component Type : terminal block
• Product Name : Linergy TR
• Length : 69.9 mm
• Range : Linergy
• Mounting Mode : clip-on
• Terminal Block Level : 2
• Nominal Cross Section : 4 mm²
• Quantity Per Set : set of 50
• Color : green-yellow
• Device Short Name : TRV
