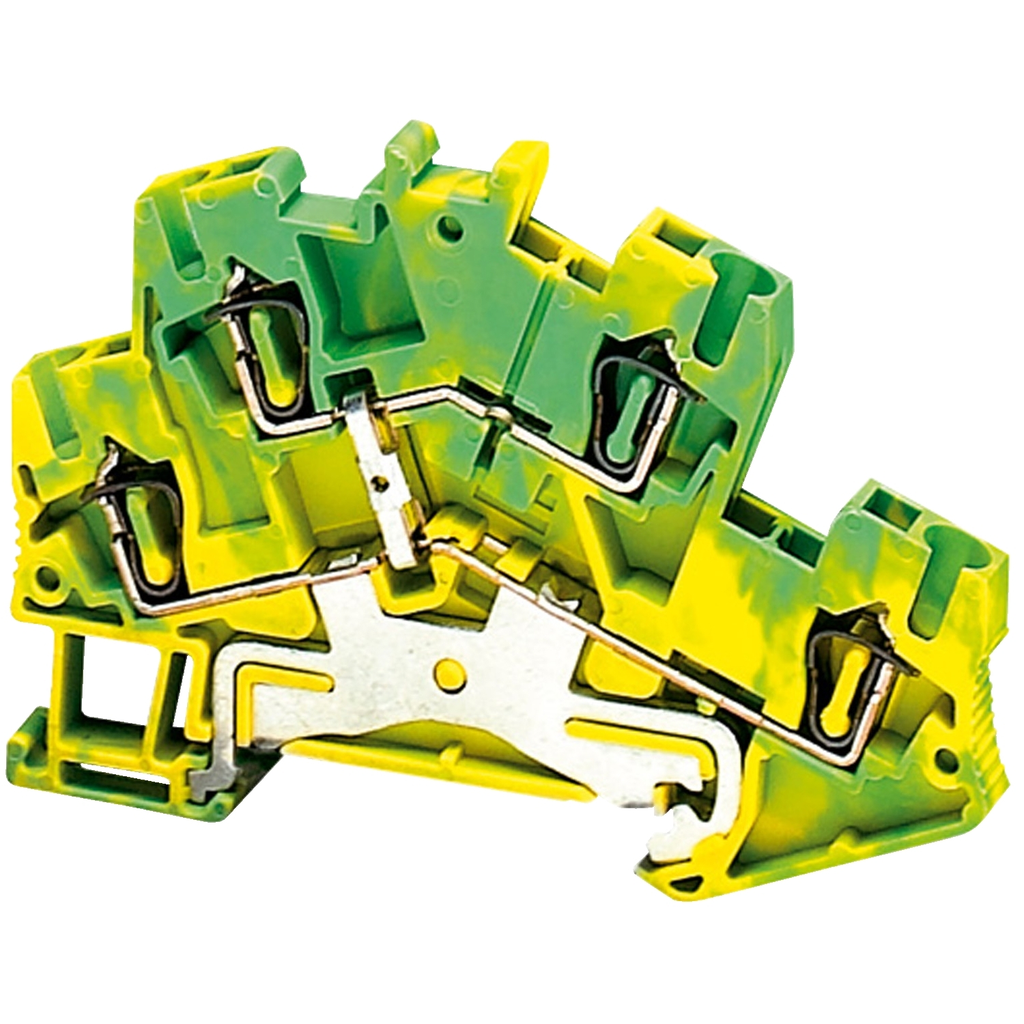

Terminal block, Linergy TR, spring type, protective earth, 2 level, 4 points, 2.5mm², Green-yellow, set of 50

Terminal block, Linergy TR, spring type, protective earth, 2 level, 4 points, 2.5mm², Green-yellow, set of 50

SQDNSYTRR24DPE NSYTRR24DPE 3606480532641
11.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-Terminal block, Linergy TR, spring type, protective earth, 2 level, 4 points, 2.5mm², Green-yellow, set of 50-1
  • Country of Origin: Germany
  • Dielectric Strength: 1000 V
  • Height: 55 mm
  • Length: 78 mm
  • Net Weight: 16.8 g
  • Warranty Length: 18 mth
  • Weight: 16.8 g
  • Width: 5.2 mm
Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 2.5 mm² nominal cross section. Mounting by clip-on and top connection by double level 2x2 Spring terminals. It could be connection and disconnection by flat screwdriver. It has Green/Yellow surface treatment. Sold in lots of 50 units. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
QTY
  • Product Description
  • Specifications
Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 2.5 mm² nominal cross section. Mounting by clip-on and top connection by double level 2x2 Spring terminals. It could be connection and disconnection by flat screwdriver. It has Green/Yellow surface treatment. Sold in lots of 50 units. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
  • Environment
    • Product Certifications : CSA || VDE || GL || DNV || UL
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    • Dielectric Strength : 1000 V IEC 60243-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2309021EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 5 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 4.607422373
  • Complementary
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    • Height : 55 mm
    • Number Of Terminals : 2
    • Connections - Terminals : 1 x spring terminal upstream || 1 x spring terminal downstream
    • Cable Cross Section : 0.08-4 mm², solid || 0.2-2.5 mm², flexible with cable end || 0.08-2.5 mm², flexible without cable end
    • Connection Position : top
    • Number Of Measurement Input : 4
    • Tool Type : connection flat screwdriver || disconnection flat screwdriver
    • Net Weight : 16.8 g
    • Flame Retardance : V0 0.8 mm UL 94
    • Wire Stripping Length : 10 mm
    • Resistivity : 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    • Dielectric Constant : 3.7 at 1 MHz
    • Material : polyamide 6/6: insulating case
    • Surface Resistance : 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    • Width : 5.2 mm
    • Range Compatibility : PrismaSeT P || PrismaSeT G || PrismaSet HD || PrismaSeT Pack 250 || PanelSeT || Mureva || PrismaSeT XS || TeSys
    • Product Compatibility : Spacial enclosures
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
  • Specifications
    • Country of Origin : Germany
    • Width : 5.2 mm
    • Height : 55 mm
    • Weight : 16.8 g
    • Terminal Block Type : protective earth
    • Product Or Component Type : terminal block
    • Product Name : Linergy TR
    • Length : 78 mm
    • Range : Linergy
    • Mounting Mode : clip-on
    • Terminal Block Level : 2
    • Nominal Cross Section : 2.5 mm²
    • Quantity Per Set : set of 50
    • Color : green-yellow
    • Device Short Name : TRR
