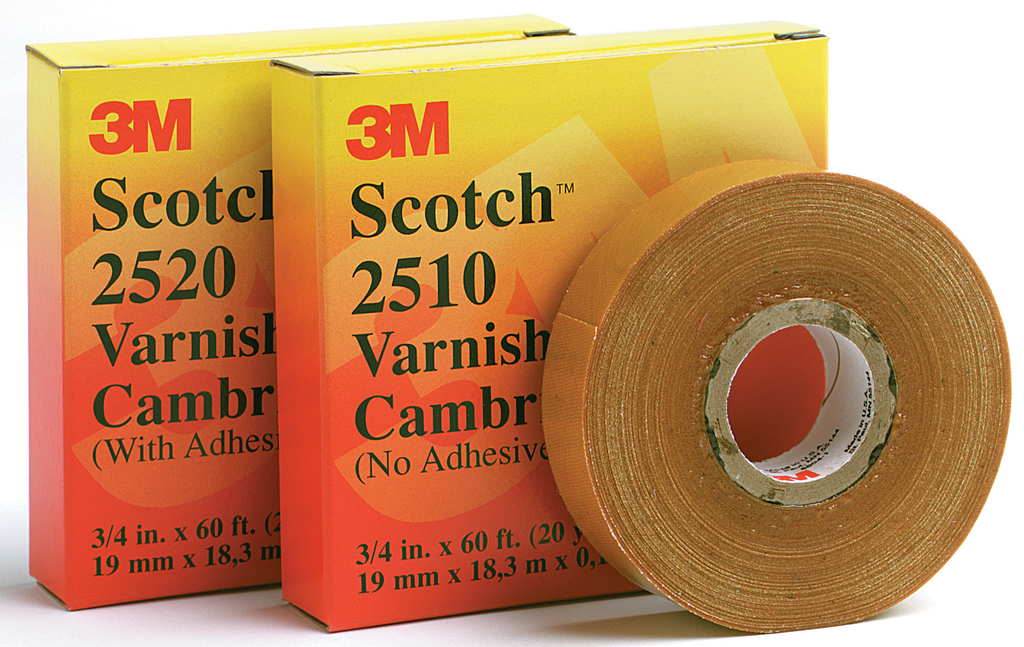

Scotch® Varnished Cambric Tape 2510, 3/4 in x 60 ft, Yellow, 1 roll/carton, 20 rolls/Case

Scotch® Varnished Cambric Tape 2510, 3/4 in x 60 ft, Yellow, 1 roll/carton, 20 rolls/Case

MMM251034X60 2510-3/4X60FT 054007417200
58.87 / Roll
http://schema.org/OutOfStock
Mayer-DDS-Scotch® Varnished Cambric Tape 2510, 3/4 in x 60 ft, Yellow, 1 roll/carton, 20 rolls/Case-1
  • Adhesive Type: Non-Adhesive
  • Applications: Electrical Maintenance
  • Backing Material: Cotton Cloth
  • Country of Origin: USA
  • Max. Operating Temperature: 105.0 °C, 220.0 °F
  • Min. Operating Temperature: 0.0 °C, 32.0 °F
  • Overall Length: 18.3 m, 60.0 ft
  • Tensile Strength: 100 mm, 876.0 N
  • Width: 0.75 in, 19.05 mm
Scotch® Tape 2510 is a 7 mil thick, premium grade varnished cambric tape that's suitable for insulating bus bars, motor leads and service drop connections. The electrical properties of the tape remain stable in a temperature range of 32 to 221 °F (0 to 105 °C).
QTY
  • Product Description
  • Features
  • Specifications
Scotch® Tape 2510 is a 7 mil thick, premium grade varnished cambric tape that's suitable for insulating bus bars, motor leads and service drop connections. The electrical properties of the tape remain stable in a temperature range of 32 to 221 °F (0 to 105 °C).
  • Features
    • Straight cut woven cotton cambric fabric is infused with yellow varnish for electrical insulation
    • Provides excellent tensile strength
    • Withstands a temperature range of 32 to 221 °F (0 to 105 °C)
    • ASTM Approved and RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/f2W0hjsuhfE=
    • Adhesive Type : Non-adhesive
    • Overall Width (Imperial) : 0.75 in
    • AIS URL (Article Information Sheet) : https://https://cdmsweb.3m.com/ingredientcommunication/file/Media/lvlO84zE+5E=
    • Overall Width (Metric) : 19.05 mm
    • ETIM Class 7.0 : EC000128
    • ETIM Class 8.0 : EC000128
    • Total Tape Thickness without Liner (Imperial) : 7.0 mil
    • Total Tape Thickness without Liner (Metric) : 0.177 mm
    • Application : Electrical Maintenance
    • Application/Industry : Appliance and Fixture
    • Backing (Carrier) Material : Cotton Cloth
    • Dielectric Strength : 800.0 V/mil
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 220.0 Degree
    • Minimum Operating Temperature (Celsius) : 0.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : 32.0 Degree
    • Overall Length (Imperial) : 60.0 ft
    • Overall Length (Metric) : 18.3 m
    • Product Color : Yellow
    • Product Markets : Electrical Construction
    • Rolls per Carton : 1.0
    • Rolls per Case : 20.0
    • Shelf Life UOM : Year
    • Specifications Met : ASTM Approved, ASTM D-1000, ASTM D-295, ASTM D-374, RoHS 2011/65/EU
    • Tape Grade : Professional
    • Tensile Strength (Metric) : 876.0 N/100mm
    • Units per Case : 10.0
