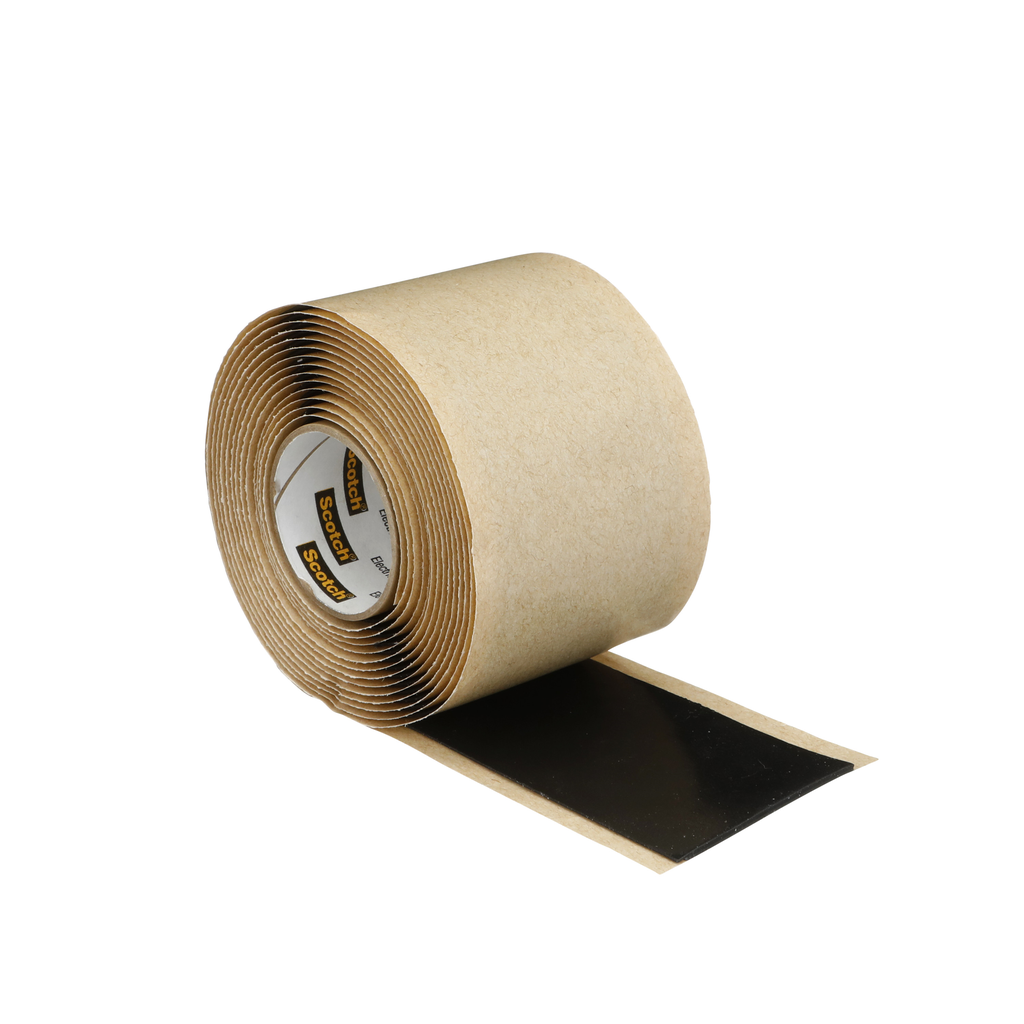

Scotch® Rubber Mastic Tape 2228, 2 in x 10 ft, Black, 10 Rolls/Case

2X10FT RUBBER MASTIC TAPE

MMM2228 2228-2X10FT 054007096566
67.22 / Roll
http://schema.org/OutOfStock
Mayer-DDS-Scotch® Rubber Mastic Tape 2228, 2 in x 10 ft, Black, 10 Rolls/Case-1
  • Applications: Insulation
  • Backing Material: Ethylene Propylene Rubber
  • Country of Origin: USA
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: 0.0 °C
  • Overall Length: 10.0 ft, 3.0 m
  • Width: 2.0 in, 50.8 mm
Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.
QTY
  • Product Description
  • Features
  • Specifications
Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.
  • Features
    • Is a UL recognized component for applications up to 130°C (266°F)
    • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
    • Thick construction allows quick application build–up and padding over irregular connections
    • Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties
    • RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • Adhesive Type : Mastic
    • ETIM Class 7.0 : EC000128
    • ETIM Class 8.0 : EC000128
    • Overall Width (Imperial) : 2.0 in
    • Overall Width (Metric) : 50.8 mm
    • Total Tape Thickness without Liner (Imperial) : 65.0 mil
    • Total Tape Thickness without Liner (Metric) : 1.65 mm
    • Application : Insulation
    • Backing (Carrier) Material : Ethylene Propylene Rubber
    • Dielectric Strength : 500.0 V/mil
    • Elongation at Break : 1000.0 %
    • Features : Self-sticking; UV-resistant
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : 0.0 Degree
    • Overall Length (Imperial) : 10.0 ft
    • Overall Length (Metric) : 3.0 m
    • Product Color : Black
    • Product Markets : Electrical Equipment Manufacturing
    • Shelf Life UOM : Year
    • Specifications Met : ASTM D-4388 Type 1, 2 & 3
    • Voltage Rating : 600 V
