Scotch® Linerless Rubber Splicing Tape 130C, 2 in x 30 ft, Black, 12 rolls/Case

TAPE - SPLICING 2X30

MMM130C2X30 130C-2X30FT 054007417545
87.27 / Roll
http://schema.org/OutOfStock
Mayer-DDS-Scotch® Linerless Rubber Splicing Tape 130C, 2 in x 30 ft, Black, 12 rolls/Case-2
  • Adhesive Type: Rubber
  • Applications: Insulation
  • Backing Material: Ethylene Rubber
  • Country of Origin: USA
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: 0.0 °C
  • Tensile Strength: 250.0

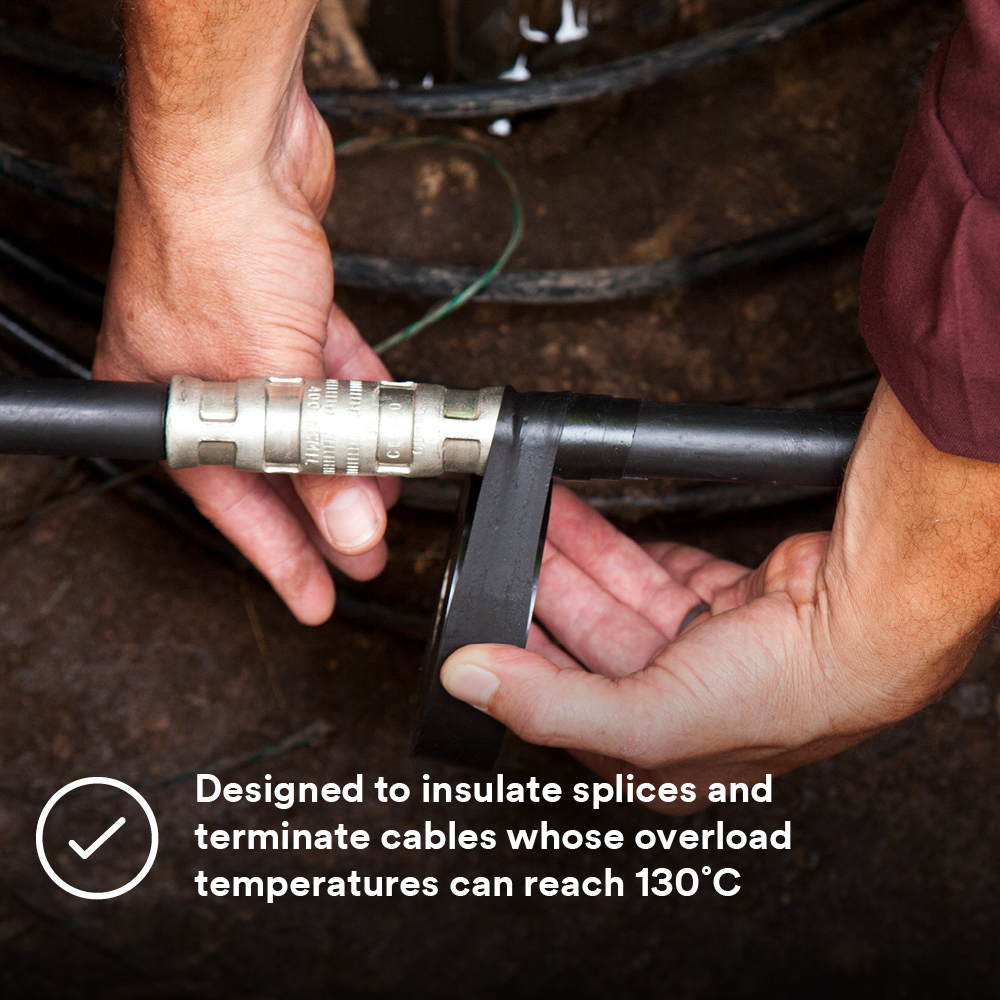

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
QTY
  • Product Description
  • Features
  • Specifications
Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
  • Features
    • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
    • Provides an excellent thermal dissipation of splice heat
    • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
    • Withstands temperatures up to 194 °F (90 °C)
    • ASTM Approved and RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • Adhesive Type : Rubber
    • Overall Width (Imperial) : 2.0
    • Overall Width (Imperial) UOM : in
    • Overall Width (Metric) : 50.8
    • Overall Width (Metric) UOM : mm
    • Total Tape Thickness without Liner (Imperial) : 30.0
    • Total Tape Thickness without Liner (Imperial) UOM : mil
    • Total Tape Thickness without Liner (Metric) : 0.76
    • Total Tape Thickness without Liner (Metric) UOM : mm
    • Application : Insulation
    • Application/Industry : Appliance and Fixture
    • Backing (Carrier) Material : Ethylene Rubber
    • Backing (Carrier) Thickness (Imperial) : 30.0
    • Backing (Carrier) Thickness (Imperial) UOM : mil
    • Backing (Carrier) Thickness (Metric) : 0.76
    • Backing (Carrier) Thickness (Metric) UOM : mm
    • Dielectric Strength : 750.0
    • Dielectric Strength UOM : V/mil
    • Elongation at Break : 850
    • Features : Self-sticking; UV-resistant; Vulcanizing
    • Insulation Resistance : >10^15 ohms
    • Maximum Operating Temperature (Celsius) : 90.0
    • Maximum Operating Temperature (Celsius) UOM : Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0
    • Maximum Operating Temperature (Fahrenheit) UOM : Degree
    • Minimum Operating Temperature (Celsius) : 0.0
    • Minimum Operating Temperature (Celsius) UOM : Degree
    • Overall Length (Imperial) : 30.0
    • Overall Length (Imperial) UOM : ft
    • Overall Length (Metric) : 9.1
    • Overall Length (Metric) UOM : m
    • Product Color : Black
    • Shelf Life UOM : Year
    • Specifications Met : ASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
    • Tape Grade : Professional
    • Tensile Strength (Imperial) : 250.0
    • Tensile Strength (Metric) : 1723.0
    • Tensile Strength (Metric) UOM : kg
    • Units per Case : 12.0
    • Voltage Rating : 69 kV
