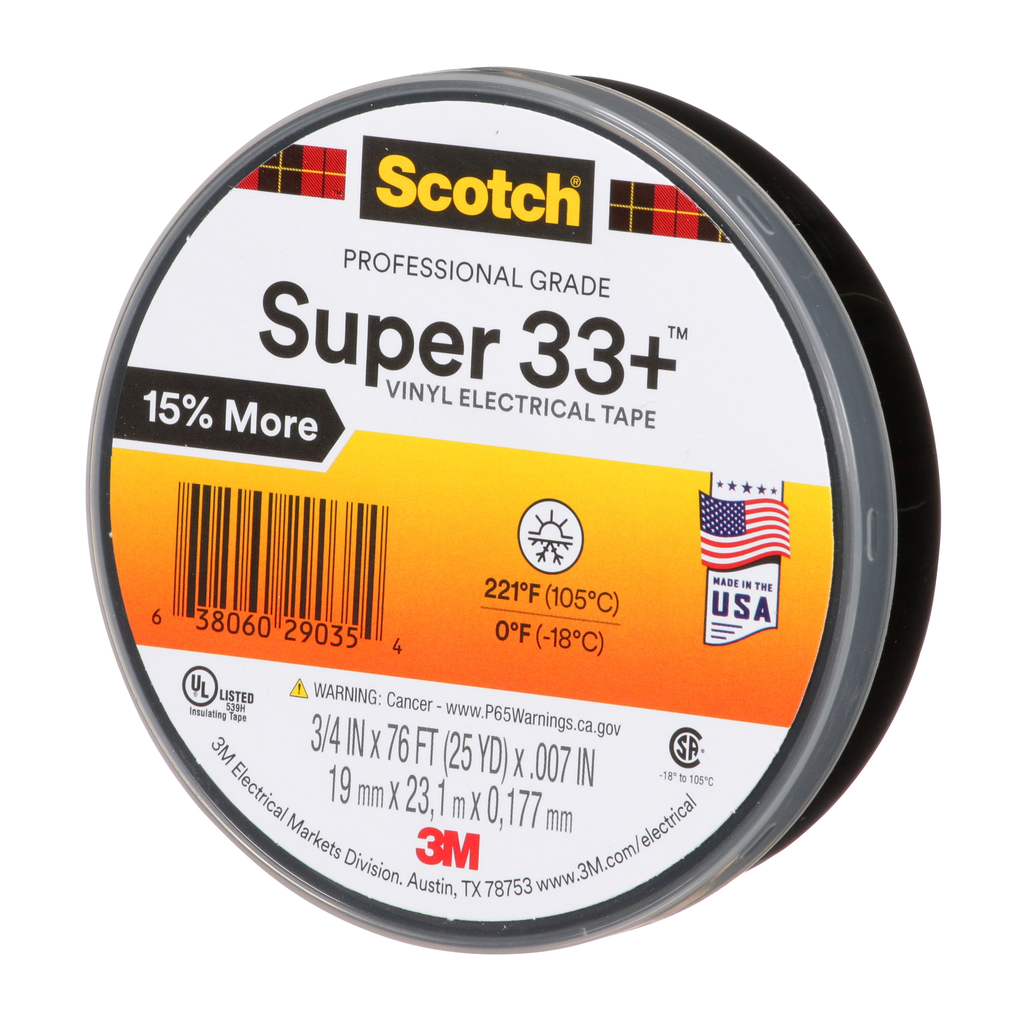

Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 76 ft, 1 in Core, Black, 10 rolls/carton, 100 rolls/Case

Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 76 ft, 1 in Core, Black, 10 rolls/carton, 100 rolls/Case

MMM3334X76 3334X76 MMM3334X76
12.47 / EA
http://schema.org/OutOfStock
Mayer-DDS-Scotch® Super 33+ Vinyl Electrical Tape, 3/4 in x 76 ft, 1 in Core, Black, 10 rolls/carton, 100 rolls/Case-2
  • Adhesive Type: Rubber
  • Applications: Insulation
  • Backing Material: PVC
  • Country of Origin: USA
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
  • Min. Operating Temperature: 0.0 °F, -18.0 °C
  • Overall Length: 23.1 m, 76.0 ft
  • Shelf Life: 1800 yr
  • Tensile Strength: 15.0 lb/in, 26.0 N
  • Width: 0.75 in, 19.0 mm
Scotch® Super 33+ Vinyl Electrical Tape is a 7 mil thick, premium grade tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of 0 to 221 °F ( 18 to 105 °C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds.
QTY
  • Product Description
  • Features
  • Specifications
Scotch® Super 33+ Vinyl Electrical Tape is a 7 mil thick, premium grade tape that provides electrical insulation for all wires and cables rated up to 600V. The flame retardant tape withstands a temperature range of 0 to 221 °F ( 18 to 105 °C). It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets and splicing compounds.
  • Features
    • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
    • Resists UV rays, abrasion, moisture, alkalis, solvents and acids
    • Flame-retardant and inhibits the corrosion of electrical conductors
    • Made of durable PVC
    • Compatible with rubber and synthetic splicing compounds
    • Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/PNrdq7jIOrM=
    • Overall Width (Imperial) : 0.75 in
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00x482Bmx_Znv70k17zHvu9lxtD7xtBevSSSSSS-
    • Overall Width (Metric) : 19.0 mm
    • Product Color : Black
    • ETIM Class 7.0 : EC000128
    • ETIM Class 8.0 : EC000128
    • Tape Grade : Professional
    • Total Tape Thickness without Liner (Imperial) : 7.0 mil
    • Total Tape Thickness without Liner (Metric) : 0.178 mm
    • Adhesive Type : Rubber
    • Application : Insulation
    • Backing (Carrier) Material : PVC
    • Dielectric Strength : 1150.0 V/mil
    • Elongation at Break : 250.0 %
    • Insulation Resistance : > 10^6 megohms
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • Minimum Operating Temperature (Celsius) : -18.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : 0.0 Degree
    • Overall Length (Imperial) : 76.0 ft
    • Overall Length (Metric) : 23.1 m
    • Product Markets : Electrical Equipment Manufacturing
    • Shelf Life : 1800 Year
    • Tensile Strength (Imperial) : 15.0 lb/in
    • Tensile Strength (Metric) : 26.0 N/cm
    • Voltage Rating : 600 V
