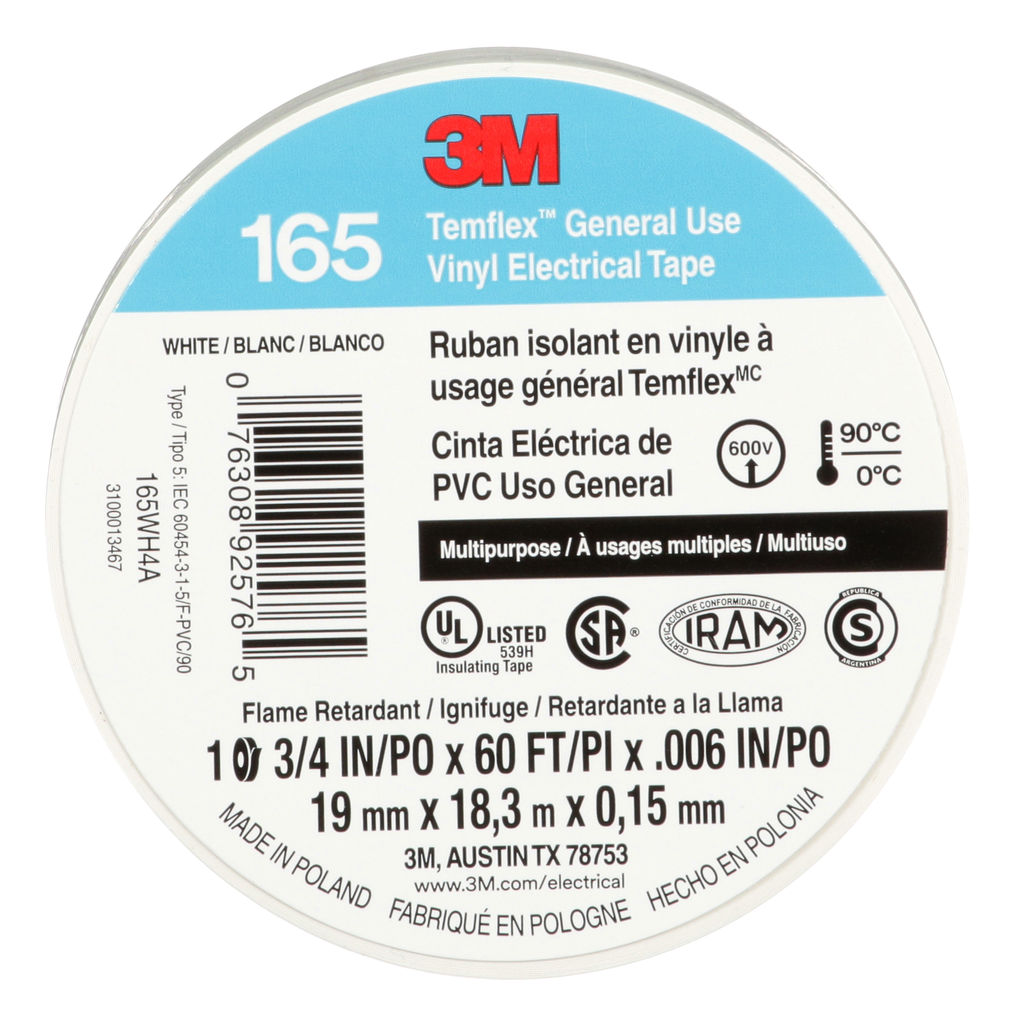

3M™ Temflex™ Vinyl Electrical Tape 165 is a good quality, multi-purpose vinyl insulating tape. It has great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. 3M Temflex 165 Tape provides great mechanical protection with minimum bulk. It is a UL Listed and CSA Certified “Insulating Tape.” No solvents are used in the manufacturing process.

• Features
• Resists abrasion, moisture, alkalis, solvents and acids
• Flame-retardant and inhibits the corrosion of electrical conductors
• Made of durable PVC
• Compatible with rubber and synthetic splicing compounds
• Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
• UL Listed, CSA and VDE Certified

• Specifications
• Country of Origin : Poland
• Overall Width (Imperial) : 0.75 in
• RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/QcqrIr7uiEE=
• Overall Width (Metric) : 19.0 mm
• AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xNx_9Oxt9nv70k17zHvu9lxtD7xtBevSSSSSS-
• ETIM Class 7.0 : EC000128
• Product Color : White
• ETIM Class 8.0 : EC000128
• Tape Grade : General Use
• Total Tape Thickness without Liner (Imperial) : 0.006 in
• Total Tape Thickness without Liner (Metric) : 0.15 mm
• Adhesive Type : Rubber
• Application : Insulation
• Backing (Carrier) Material : PVC
• Dielectric Strength : 40.0 kV/mm
• Elongation at Break : 200.0 %
• Maximum Operating Temperature (Celsius) : 90.0 Degree
• Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
• Minimum Operating Temperature (Celsius) : 0.0 Degree
• Minimum Operating Temperature (Fahrenheit) : 32.0 Degree
• Overall Length (Imperial) : 60.0 ft
• Overall Length (Metric) : 18.0 m
• Shelf Life : 1825 Year
• Voltage Rating : 600 V
