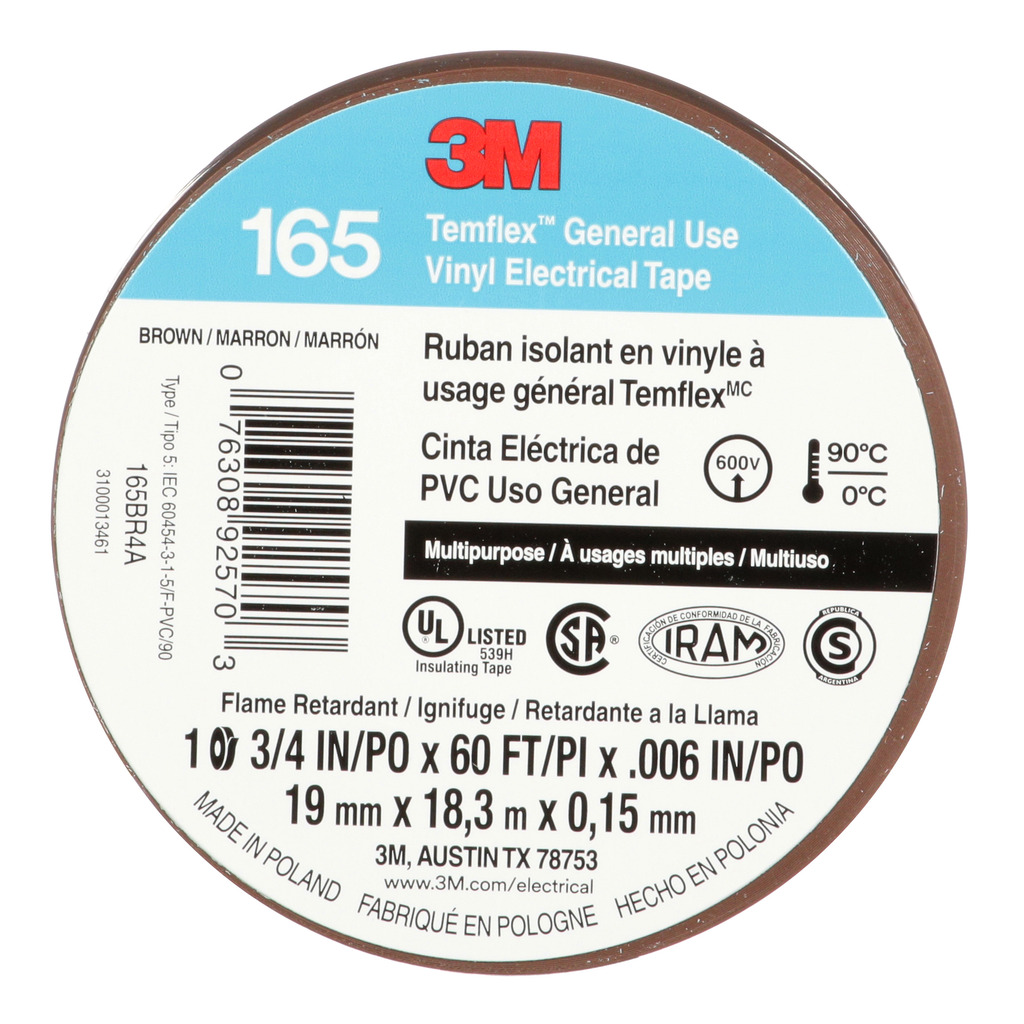

3M™ Temflex™ Vinyl Electrical Tape 165, Brown, 3/4 in x 60 ft (19 mm x 18 m), 6 mil, 100 Rolls/Case

TAPE - 3/4X66 BROWN

MMM165BR4A 165BR4A 76308925703
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-3M™ Temflex™ Vinyl Electrical Tape 165, Brown, 3/4 in x 60 ft (19 mm x 18 m), 6 mil, 100 Rolls/Case-2
  • Adhesive Type: Rubber
  • Applications: Insulation
  • Backing Material: PVC
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: 0.0 °C, 32.0 °F
  • Overall Length: 18.0 m, 60.0 ft
  • Shelf Life: 1600 yr
  • Width: 0.75 in, 19.0 mm
3M Temflex Vinyl Electrical Tape 165 is a 6-mil thick, multi-purpose vinyl insulating tape available in 10 colors in 10 roll packs. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 32F (0C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed, CSA and VDE Certified.
QTY
  • Product Description
  • Features
  • Specifications
3M Temflex Vinyl Electrical Tape 165 is a 6-mil thick, multi-purpose vinyl insulating tape available in 10 colors in 10 roll packs. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 32F (0C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed, CSA and VDE Certified.
  • Features
    • Resists abrasion, moisture, alkalis, solvents, acids and varying weather conditions
    • Flame-retardant and inhibits the corrosion of electrical conductors
    • Made of durable elastic PVC and a pressure-sensitive rubber-based adhesive
    • Multi-purpose vinyl-insulating tape, compatible with rubber and synthetic splicing compounds
    • Withstands a temperature range of 32 to 194F (0 to 90C)
    • UL Listed, CSA and VDE Certified
  • Specifications
    • Country of Origin : Poland
    • Overall Width (Imperial) : 0.75 in
    • ETIM Class 7.0 : EC000128
    • Overall Width (Metric) : 19.0 mm
    • ETIM Class 8.0 : EC000128
    • Product Color : Brown
    • Tape Grade : General Use
    • Total Tape Thickness without Liner (Imperial) : 0.006 in
    • Total Tape Thickness without Liner (Metric) : 0.15 mm
    • Adhesive Type : Rubber
    • Application : Insulation
    • Backing (Carrier) Material : PVC
    • Dielectric Strength : 40.0 kV/mm
    • Elongation at Break : 200.0 %
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : 0.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : 32.0 Degree
    • Overall Length (Imperial) : 60.0 ft
    • Overall Length (Metric) : 18.0 m
    • Shelf Life : 1600 Year
