Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Green, 10 rolls/carton, 100 rolls/Case

TAPE CODING - GREEN 1/2 X 20

MMM3512X20GR 35-1/2X20FT-GN 054007102656
3.70 / Roll
http://schema.org/OutOfStock

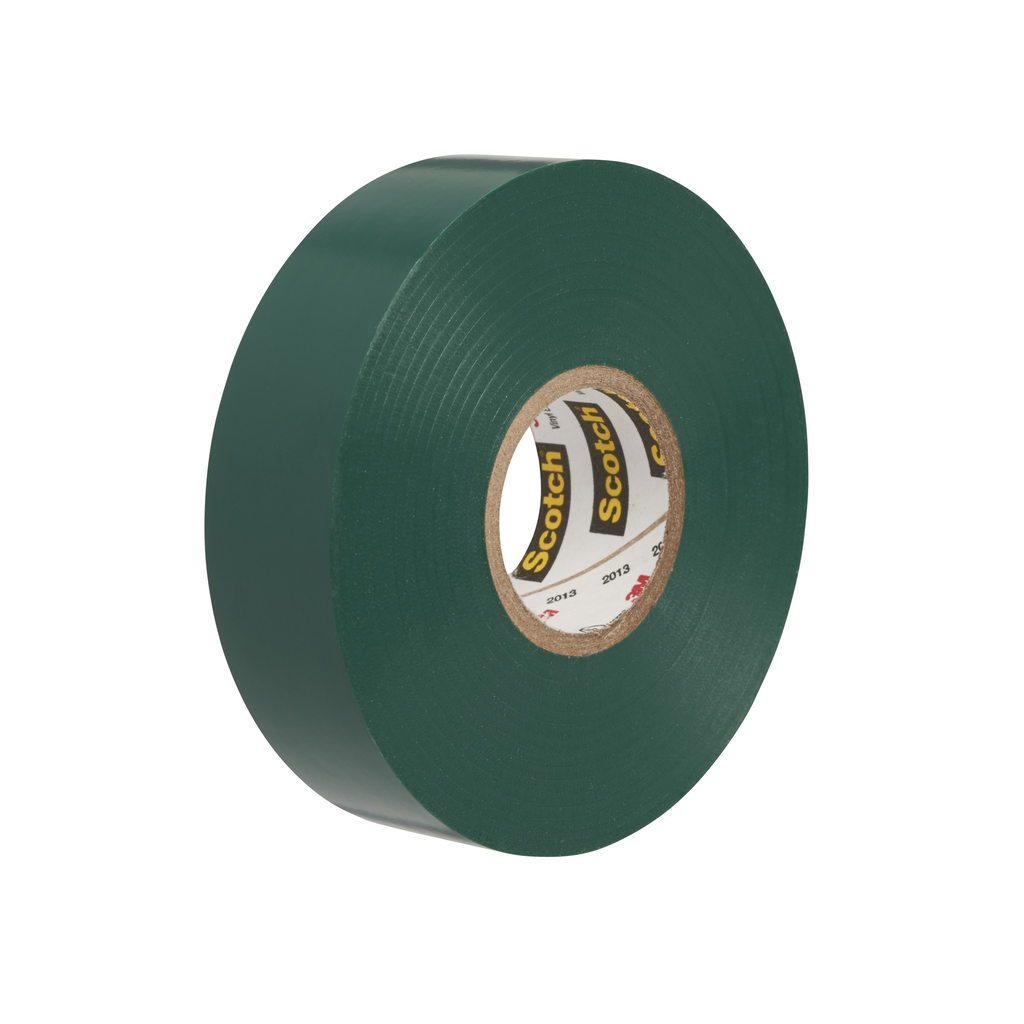

Mayer-DDS-Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Green, 10 rolls/carton, 100 rolls/Case-1
  • Adhesive Type: Rubber
  • Applications: Electrical Maintenance
  • Backing Material: PVC
  • Country of Origin: USA
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
  • Min. Operating Temperature: 0.0 °C, 32.0 °F
  • Overall Length: 20.0 ft, 6.1 m
  • Shelf Life: 1825 yr
  • Width: 0.5 in, 12.7 mm
Scotch® Vinyl Multi-Colored Electrical Tape 35 is a 7 mil thick, premium grade, electrical tape that comes in various colors. This flame retardant tape is suitable for wire and phase identification, color coding of motor leads and piping systems, and for marking safety areas. This tape is 600V rated and withstands a temperature range of 14 to 221 °F (-10 to 105 °C).
QTY
  • Product Description
  • Features
  • Specifications
Scotch® Vinyl Multi-Colored Electrical Tape 35 is a 7 mil thick, premium grade, electrical tape that comes in various colors. This flame retardant tape is suitable for wire and phase identification, color coding of motor leads and piping systems, and for marking safety areas. This tape is 600V rated and withstands a temperature range of 14 to 221 °F (-10 to 105 °C).
  • Features
    • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
    • Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
    • Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
    • Made of durable PVC
    • Withstands a temperature range of 14 to 221 °F (-10 to 105 °C)
    • UL Listed, VDE, CSA Certified and RoHS 2015/863/EU Compliant
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/wh1LZLlZRiU=
    • Overall Width (Imperial) : 0.5 in
    • Overall Width (Metric) : 12.7 mm
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xlY_xnx2v4v70k17zHvu9lxtD7xtBevSSSSSS-
    • ETIM Class 7.0 : EC000128
    • Product Color : Green
    • Tape Grade : Professional
    • ETIM Class 8.0 : EC000128
    • Adhesive Type : Rubber
    • Application : Electrical Maintenance
    • Backing (Carrier) Material : PVC
    • Dielectric Strength : 600.0 V
    • Electrolytic Corrosion Factor : 0.9
    • Elongation at Break : 225.0 %
    • Insulation Resistance : > 10^6 megohms
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • Minimum Operating Temperature (Celsius) : 0.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : 32.0 Degree
    • Overall Length (Imperial) : 20.0 ft
    • Overall Length (Metric) : 6.1 m
    • Product Markets : Electrical Construction
    • Rolls per Carton : 10.0
    • Rolls per Case : 100.0
    • Shelf Life : 1825 Year
    • Specifications Met : CSA Certified, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1
    • Voltage Rating : 600 V
