Trademaster® Grounding Toggle Switch

TOG SWITCH 3W/15A 120V WHITE

PSS663WG 663-WG 785007663105
2.41 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: Vietnam
  • Depth: 1.09 in
  • Finish: Satin
  • Height: 4.195 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 3
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V
  • Warranty Length: 1 yr
  • Width: 1.25 in

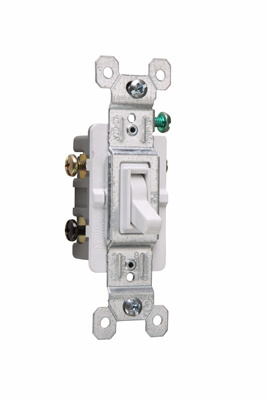

Triple Pole Switch in white, with grounded terminals, is made with a thermoplastic toggle and frame. It has a smooth, quiet toggle action and is made with high-impact resistant construction. 15 amps, 120 volts. **Available in bulk packs of 90. Add "U" to end of Catalog Number. Example: 663WGU
QTY
  • Features
  • Specifications
  • Certifications
    • UL Listed
    • CSA Listed
  • Features
    • Quality Materials, durability, and time-tested design
    • Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Specifications
    • Country of Origin : Vietnam
    • Depth : 1.09 in
    • Height : 4.195 in
    • Width : 1.25 in
    • Color : White
    • Finish : Satin
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : 3-Way
    • Standard : UL 498
    • Special Features : Side wire, high impact resistant construction, extra long strap
    • Type : Switch
    • Application Sector : Hospitality; Residential
    • Mounting Type : Wall Box
    • Features : Extra Long Strap
    • Wall Plate Included : No
    • Load Rating : 15 A @ 120 VAC
    • Number of Gangs : 1
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Wire Connection Type : Push Wire
    • Number of Switches : 1.0
    • Switch Type : Toggle
    • Requires Neutral Wire : No
    • Indoor/Outdoor : Indoor
    • Connection Location : Back and Side
    • Warranty Type : 1-Year Limited Warranty
    • Throw Type : Single Throw
    • Load Type : Incandescent; Fluorescent; Halogen; CFL; LED; Universal; Xenon
    • Voltage : 120.0 V
