PASS & SEYMOUR

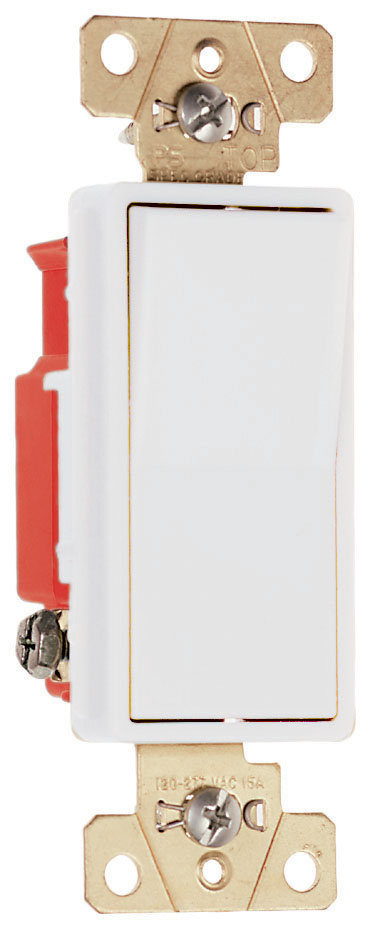

20A 120V/277V Specification Grade 3-Way Decorator Paddle Switch, White

SW DEC 3W 20A 120/277 GROUNDED

PSS2623W 2623-W 785007539554
17.48 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 120V/277V Specification Grade 3-Way Decorator Paddle Switch, White-1
  • Country of Origin: Mexico
  • Depth: 1.06 in
  • Finish: Matte
  • Height: 4.2 in
  • Width: 1.3 in
3-way, Back and Side-Wire, Decorator Switch, 20A, 120/277V.
QTY
  • Product Description
  • Features
  • Specifications
3-way, Back and Side-Wire, Decorator Switch, 20A, 120/277V.
  • Features
    • Impact-resistant polycarb back body and frame.
    • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
    • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
    • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
    • Terminals made of high conductivity brass and serrated for maximum wire gripping.
    • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
    • Integral auto-ground clip for positive ground to metal boxes.
    • Tri-drive ground, terminal, and mounting screws.
    • All terminal screws backed out, ready-to-install.
    • For covering patents, see www.legrand.us/patents.
  • Certifications
    • cULus Listed
    • UL Listed
    • CSA Listed
  • Specifications
    • Depth : 1.06 in
    • Height : 4.2 in
    • Color : White
    • Width : 1.3 in
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
