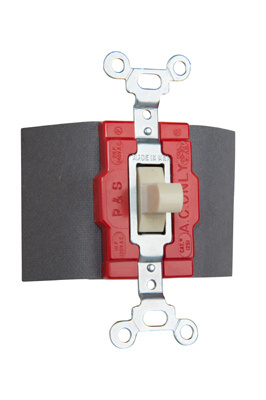

PASS & SEYMOUR

20A Single Pole, Double Throw Ivory

20A Single Pole, Double Throw Ivory

PSS1251I 1251-I 785007125115
78.53 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A Single Pole, Double Throw Ivory-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Color: Ivory
  • Country of Origin: Mexico
  • Depth: 1.469 in
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Manual Controller
  • Voltage: 120/277 V
  • Warranty Length: 1 yr
  • Width: 1.5 in
Single-Pole, Double-Throw Manual Control Switch, 20A, 120/277V.
QTY
  • Product Description
  • Features
  • Specifications
Single-Pole, Double-Throw Manual Control Switch, 20A, 120/277V.
  • Features
    • Oversize silver alloy contacts for long life and better heat dissipation.
    • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
    • Fiber terminal insulation barriers standard.
    • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
    • Bodies, covers, and toggles molded of durable nylon.
    • Single Pole-Double Throw and Double Pole-Double Throw.
    • Locking Switches supplied with one 1498-NT key.
    • Normally open.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
    • UL Listed
    • CSA Listed
  • Specifications
    • Depth : 1.469 in
    • Color : Ivory
    • Height : 3.281 in
    • Width : 1.5 in
    • Finish : Matte
    • Country of Origin : Mexico
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Load Type : CFL
    • Load Type : LED
    • Amperage : 20.0 A
    • Load Type : Xenon
    • Standard : UL 498
    • Features : Durable
    • Load Type : Halogen
    • Number of Gangs : 1
    • Voltage : 120/277 V
    • Switch Type : Toggle
    • Load Type : Universal
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Type : Manual Controller
    • Wall Plate Included : No
    • Throw Type : Double Throw
    • Requires Neutral Wire : Yes
    • Number of Poles : Single Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Connection Location : Side Only
    • Load Rating : 20 A @ 120/277 VAC
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Special Features : Side wire, fiber terminalInsulationbarriers, can be mounted in standard device box
