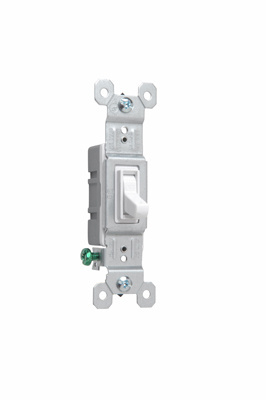

Trademaster® Grounding Toggle Switch, White

TOG SWITCH 1P/15A 120V WHITE

PSS660WG 660-WG 785007660135
1.41 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: Vietnam
  • Depth: 1.09 in
  • Finish: Satin
  • Height: 4.195 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V
  • Warranty Length: 1 yr
  • Width: 1.25 in
Smooth, quiet toggle action single pole switch with high-impact resistant construction and grounded terminals. It is a thermoplastic toggle and frame. It has easy-access green hex head ground screw. 15 amps, 120 volts, White.
QTY
  • Features
  • Specifications
  • Certifications
    • UL Listed
    • cULus Listed
  • Features
    • High impact resistant injection moldeded Thermoplastic
    • Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Specifications
    • Country of Origin : Vietnam
    • Depth : 1.09 in
    • Height : 4.195 in
    • Width : 1.25 in
    • Color : White
    • Finish : Satin
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Single Pole
    • Standard : UL 498
    • Special Features : Side wire, high impact resistant construction, extra long strap
    • Voltage : 120.0 V
    • Type : Switch
    • Application Sector : Hospitality; Residential
    • Features : Extra Long Strap
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Wall Plate Included : No
    • Wire Connection Type : Push Wire
    • Mounting Type : Wall Box
    • Load Rating : 15 A @ 120 VAC
    • Connection Location : Back and Side
    • Number of Switches : 1.0
    • Requires Neutral Wire : No
    • Warranty Type : 1-Year Limited Warranty
    • Indoor/Outdoor : Indoor
    • Switch Type : Toggle
    • Number of Gangs : 1
    • Load Type : Fluorescent; Universal; Halogen; Xenon; Incandescent; LED; CFL
    • Throw Type : Single Throw
    • Location Rating : Dry
