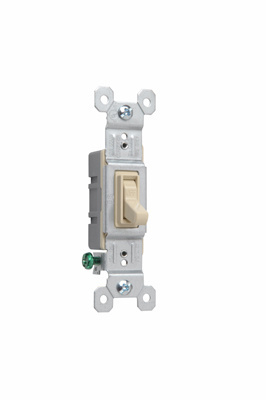

Trademaster® Grounding Toggle Switch, Ivory

TOG SWITCH 1P/15A 120V IVORY

PSS660IG 660-IG 785007660074
1.41 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: Vietnam
  • Depth: 1.09 in
  • Finish: Satin
  • Height: 4.195 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V
  • Warranty Length: 1 yr
  • Width: 1.25 in
Single Pole Switch in ivory, with grounded terminals, is made of a thermoplastic toggle and frame. It has a smooth, quiet toggle action. It is made with high-impact resistant construction. 15 amps, 120 volts. *Available in bulk packs of 120. Add "U" to end of Catalog Number. Example: 660IGU
QTY
  • Features
  • Specifications
  • Features
    • High impact resistant injection moldeded Thermoplastic
    • Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Certifications
    • CSA Listed
    • UL Listed
    • cULus Listed
  • Specifications
    • Country of Origin : Vietnam
    • Depth : 1.09 in
    • Height : 4.195 in
    • Width : 1.25 in
    • Color : Ivory
    • Finish : Satin
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Single Pole
    • Standard : UL 498
    • Special Features : Side wire, high impact resistant construction, extra long strap
    • Voltage : 120.0 V
    • Type : Switch
    • Application Sector : Hospitality; Residential
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Requires Neutral Wire : No
    • Switch Type : Toggle
    • Load Rating : 15 A @ 120 VAC
    • Wall Plate Included : No
    • Connection Location : Back and Side
    • Warranty Type : 1-Year Limited Warranty
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Number of Gangs : 1
    • Wire Connection Type : Push Wire
    • Features : Extra Long Strap
    • Indoor/Outdoor : Indoor
    • Load Type : Universal; LED; Xenon; CFL; Fluorescent; Halogen; Incandescent
    • Throw Type : Single Throw
    • Location Rating : Dry
