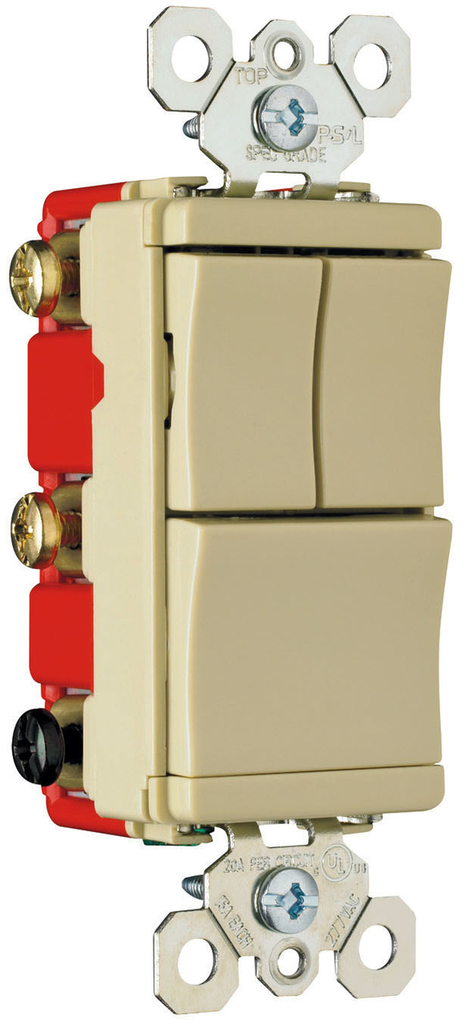

Specification Grade Decorator Combination Switch, Ivory

3 SINGLE POLE SWITCH COMBO IV

PSSPS811120I PS8111-20I 785007305906
32.71 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Specification Grade Decorator Combination Switch, Ivory-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Country of Origin: China
  • Finish: Satin
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 2
  • Operating Cycles: 50000
  • Switch Type: Paddle
  • Type: Combination Switch
  • Voltage: 277 V
  • Warranty Length: 1 yr
Decorator Combo Switch
QTY
  • Product Description
  • Features
  • Specifications
Decorator Combo Switch
  • Features
    • Impact-resistant polycarb back body and frame.
    • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
    • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
    • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
    • Terminals made of high conductivity brass and serrated for maximum wire gripping.
    • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
    • Integral auto-ground clip for positive ground to metal boxes.
    • Tri-drive ground, terminal, and mounting screws.
    • All terminal screws backed out, ready-to-install.
    • For covering patents, see www.legrand.us/patents.
  • Certifications
    • cULus Listed
  • Specifications
    • Country of Origin : China
    • Color : Ivory
    • Finish : Satin
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Load Type : CFL
    • Load Type : LED
    • Amperage : 20.0 A
    • Load Type : Xenon
    • Voltage : 277 VAC
    • Load Type : Halogen
    • Number of Gangs : 1
    • Switch Type : Paddle
    • Load Type : Universal
    • Standard : cULus UL20
    • Features : Combination
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 2.0
    • Wall Plate Included : No
    • Throw Type : Double Throw
    • Type : Combination Switch
    • Features : Decorator Style
    • Operating Cycles : 50000.0
    • Contact Configuration : N-O
    • Requires Neutral Wire : Yes
    • Load Rating : 20 A @ 277 VAC
    • Features : Chemical Resistant
    • Number of Poles : Single Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Special Features : Unique ““Up/Down”” switches match the look and feel of standard decorator switches. Impact-resistant face and body. Side and external screw-pressure-plate back wire accepts #12 and #14 AWG. All screws are tri-drive. Full wraparound heavy-gauge steel strap i
    • Environmental Conditions : Flammability: UL94 V2
