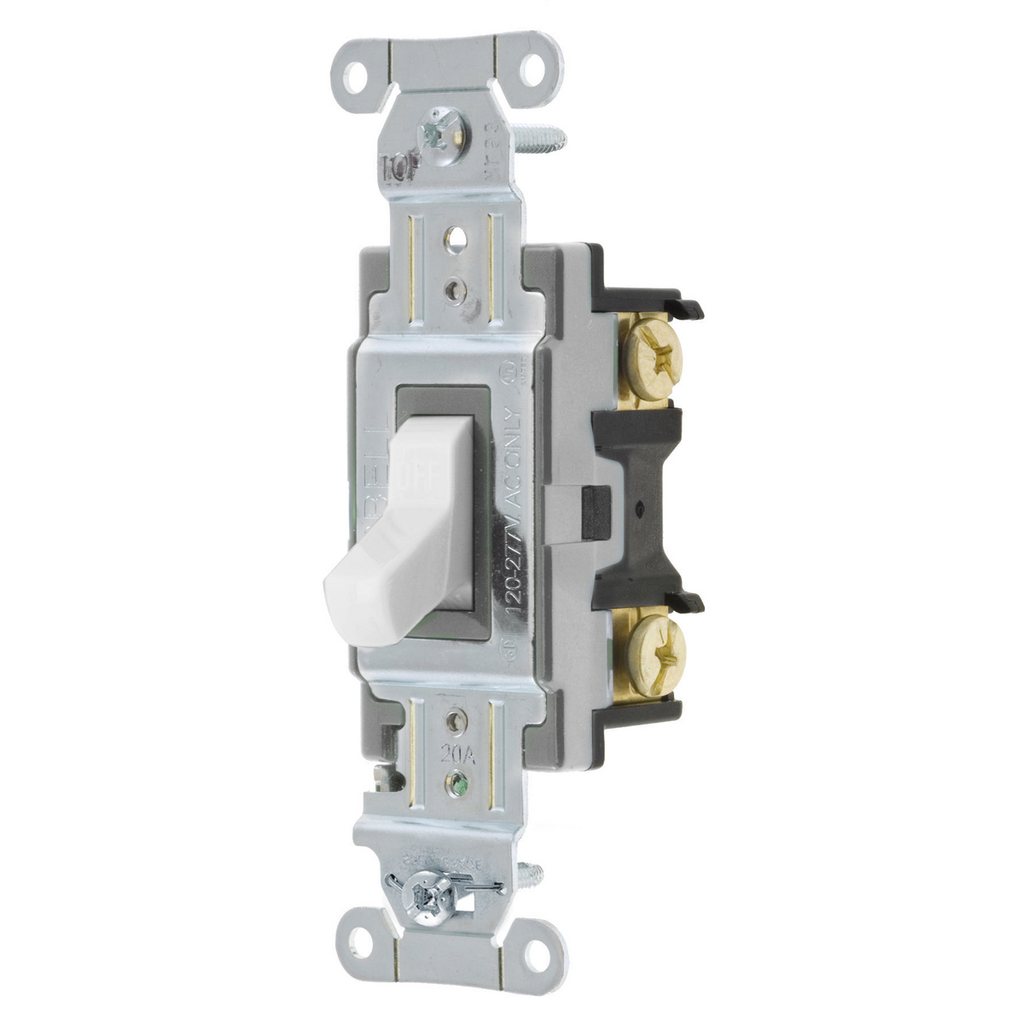

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, White Toggle

SWITCH - SP20A 120/277V

HUBCS120W CS120W 783585901145
4.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, White Toggle-1
  • Amperage: 20 A
  • Country of Origin: China
  • Current: 20 A
  • Height: 1.83 in
  • Length: 4.18 in
  • Material: Nylon
  • Number of Poles: 1
  • Weight: 0.15 lb
  • Width: 1.900 in
  • Wire Size: 14-10 AWG
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, White Toggle.
QTY
  • Product Description
  • Features
  • Specifications
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, White Toggle.
  • Features
    • Thread cleaning captive mounting screw
    • Abuse resistant nylon toggle
    • Steel, zinc plated bridge is corrosion resistant
  • Specifications
    • Country of Origin : CN
    • Current / Amperage Rating : 20 A
    • Dimensions : 4.18 in x 1.49 in x 1.83 in
    • Width : 1.900 in
    • Each - Width : 1.900 in
    • Height : 1.83 in
    • Industry Standard(s) : UL Listed
    • Length : 4.18 in
    • Performance : Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
    • Standards - RoHS Compliance Status : CM
    • Temperature Rise - Max. : 30°C maximum at rated current
    • Amperage Rating : 20 A
    • Color : White
    • Number of Poles : Single Pole
    • Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact
    • Size : 4.18 in x 1.49 in x 1.83 in
    • Standard : UL Listed
    • Type : Toggle
    • Voltage Rating : 120-277 VAC
    • Connectivity : Side Wired Only
    • Dielectric Strength : Withstands 1500V AC minimum for 1 minute
    • Number Of Poles : Single Pole
    • Style : Single Pole
    • Weight : 0.15 lb.
    • Wire Size : #14 AWG to #10 AWG
    • Class Code : A16
    • Description - Invoice : SWITCH, COM, SP, 20A 120/277V, WH
    • Freight Class Code : 06168002
    • Harmonization Code : 8536509040
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : CS120WHI;CS120WHIA;CS120WHIG;S120W
    • Sub Class Code : A16A250
    • Current Rating : 20 A
    • Material : Nylon
    • Series : General Purpose
    • Base Unit of Measure : EA
    • BOX SIZE : 3.700x9.900x4.400 (in)
    • Carton - Gross Weight per Pack : 1.8 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585901145
    • Carton - Total Units : 10 EA
    • Case - Total Units : 50 EA
    • Case Weight : 8.600 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : Yes
