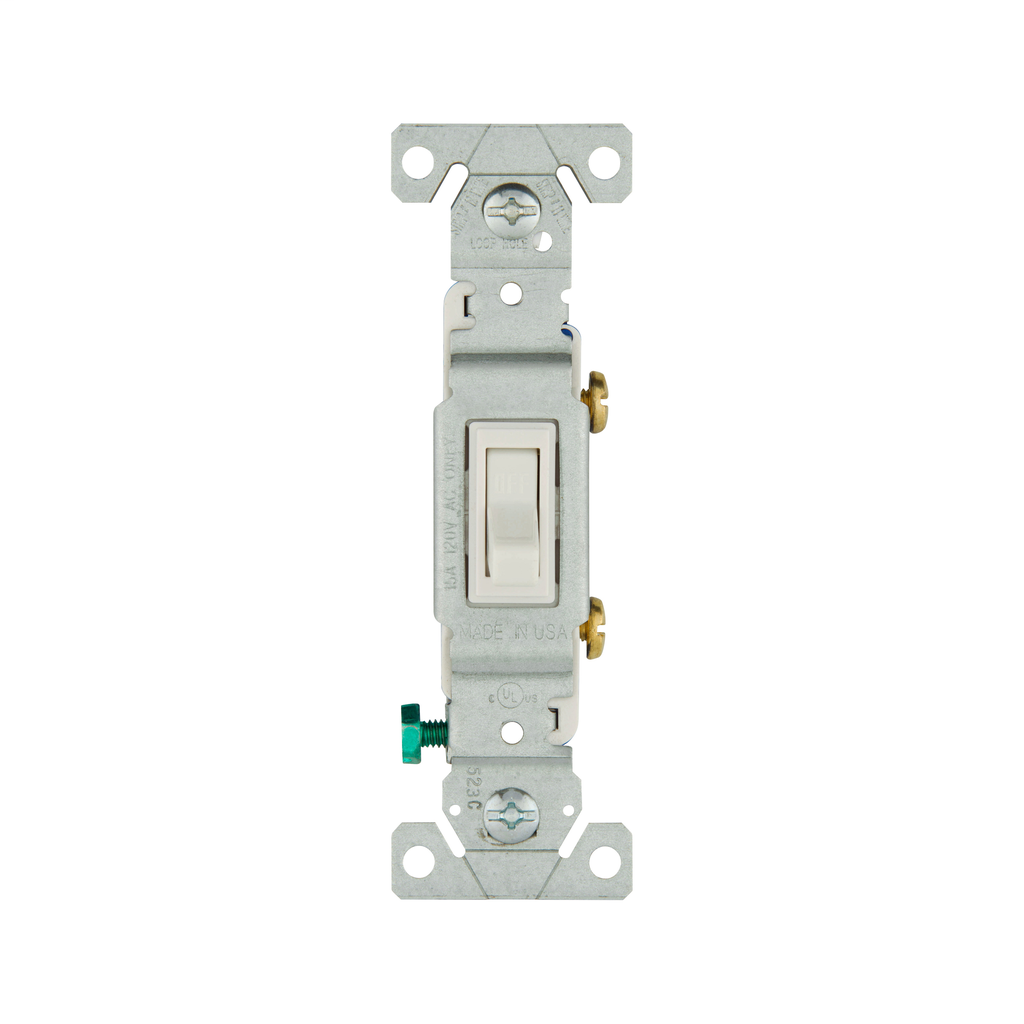

Toggle Switch, Single-Pole, 15A, 120 V, White, Polycarbonate (1301-7W)

EAGLE 1301-7W SP 15ASEE 032664

CPD13017W 1301-7W 032664750878
1.75 / EA
http://schema.org/OutOfStock
Mayer-DDS-Toggle Switch, Single-Pole, 15A, 120 V, White, Polycarbonate (1301-7W)-1
  • Amperage Rating: 15 A
  • Applications: Residential
  • Connection Type: Screw
  • Material: Polycarbonate
  • Number of Poles: 1
  • Wiring Method: Side And Push
Eaton toggle switch, #14-10 AWG, 15A, Residential, Flush, 120V, Side and push, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Polycarbonate
QTY
  • Product Description
  • Features
  • Specifications
Eaton toggle switch, #14-10 AWG, 15A, Residential, Flush, 120V, Side and push, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Polycarbonate
  • Certifications
    • cULus Listed
    • RoHS Compliant
  • Specifications
    • Amperage Rating : 15A
    • Voltage Rating : 120 V
    • Number of Poles : Single-pole
    • Switch Type : Single-pole
    • Application : Residential
    • Allowable Wire Size : #14-10 AWG
    • Torque Rating : 14 lbf-inch
    • Mounting Method : Flush
    • Wiring Method : Side and push
    • Material : Polycarbonate
    • Connector Type : Screw
    • Color : White
