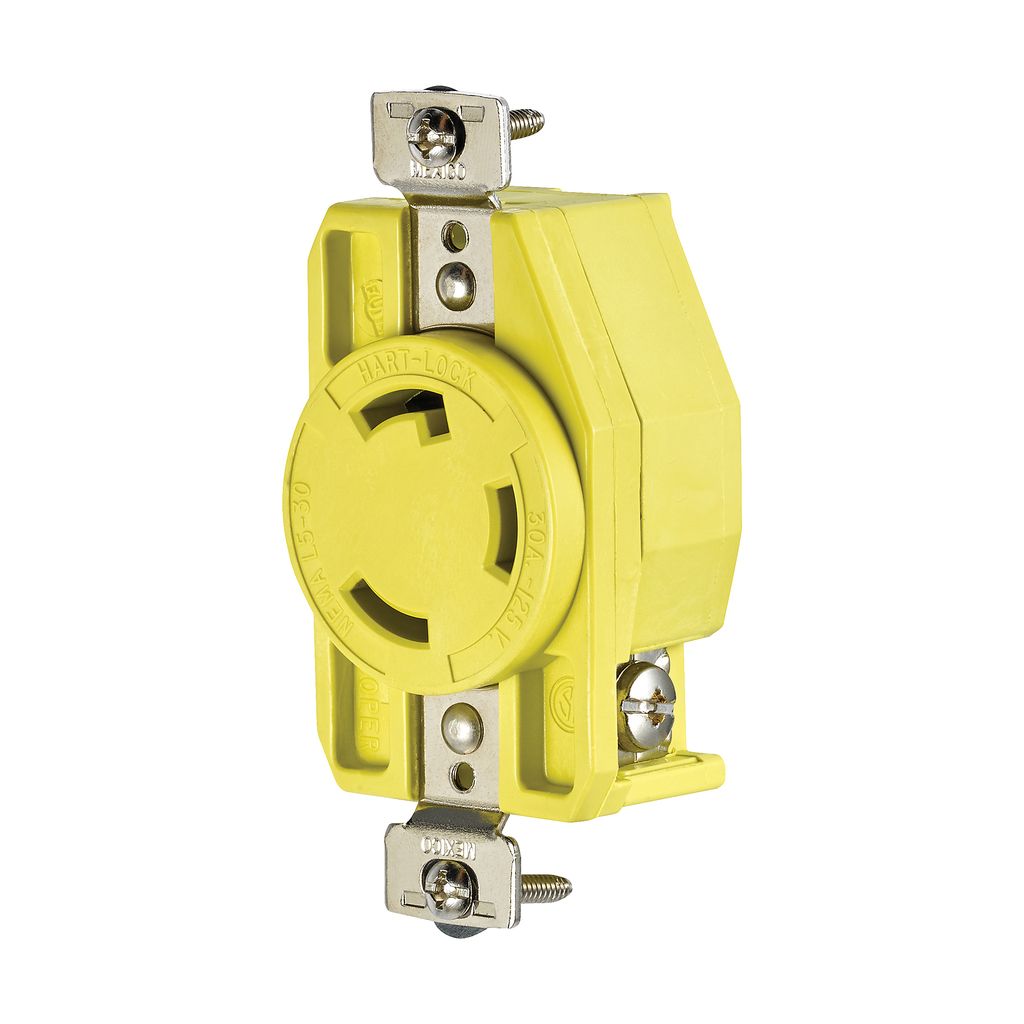

Locking Receptacle, Corrosion Resistant, NEMA L5-30, 30A, 125 V, #14-10 AWG, Yellow

RECP SINGLE CR 30A 125V 2P3W H

CPDCRL530R CRL530R 040893677156
73.55 / Each
http://schema.org/OutOfStock
Mayer-DDS-Locking Receptacle, Corrosion Resistant, NEMA L5-30, 30A, 125 V, #14-10 AWG, Yellow-1
  • Amperage Rating: 30 A
  • Applications: Industrial
  • Contact Material: Nickel Plated Brass
  • Material: Thermoplastic
  • Number of Gangs: 1
  • Number of Poles: 2
  • Number of Wires: 3 Grounding
  • Wiring Method: Back And Side
Eaton corrosion resistant locking receptacle, #14-10 AWG, 30A, Industrial, 125V, Back and side wiring, Yellow, Single, Corrosion resistant, L5-30, Two-pole, Three-wire, Thermoplastic
QTY
  • Product Description
  • Features
  • Specifications
Eaton corrosion resistant locking receptacle, #14-10 AWG, 30A, Industrial, 125V, Back and side wiring, Yellow, Single, Corrosion resistant, L5-30, Two-pole, Three-wire, Thermoplastic
  • Certifications
    • cULus Listed
    • NOM
    • CSA certified
    • UL Listed
    • RoHS Compliant
    • Federal Specifications Classification W-C375
  • Specifications
    • Amperage Rating : 30A
    • Voltage Rating : 125 V
    • Application : Industrial
    • Device Grade : Extra heavy-duty industrial specification grade
    • Number of Poles : Two-pole
    • Number of Wires : 3 Grounding
    • Number of Gangs : Single-gang
    • Allowable Wire Size : #14-10 AWG
    • Wiring Method : Back and side
    • Torque Rating : 20 lbf-inch
    • Material : Thermoplastic
    • Face/Body Material : Glass filled nylon
    • Contact Material : Nickel plated brass
    • Color : Yellow
    • Design Type : Single receptacle
    • Environmental Resistance : Corrosion resistant
    • Operating Temperature : -20 to 70 °C (-4 to 158 °F)
    • NEMA Configuration : L5-30
    • Receptacle Type : Locking
