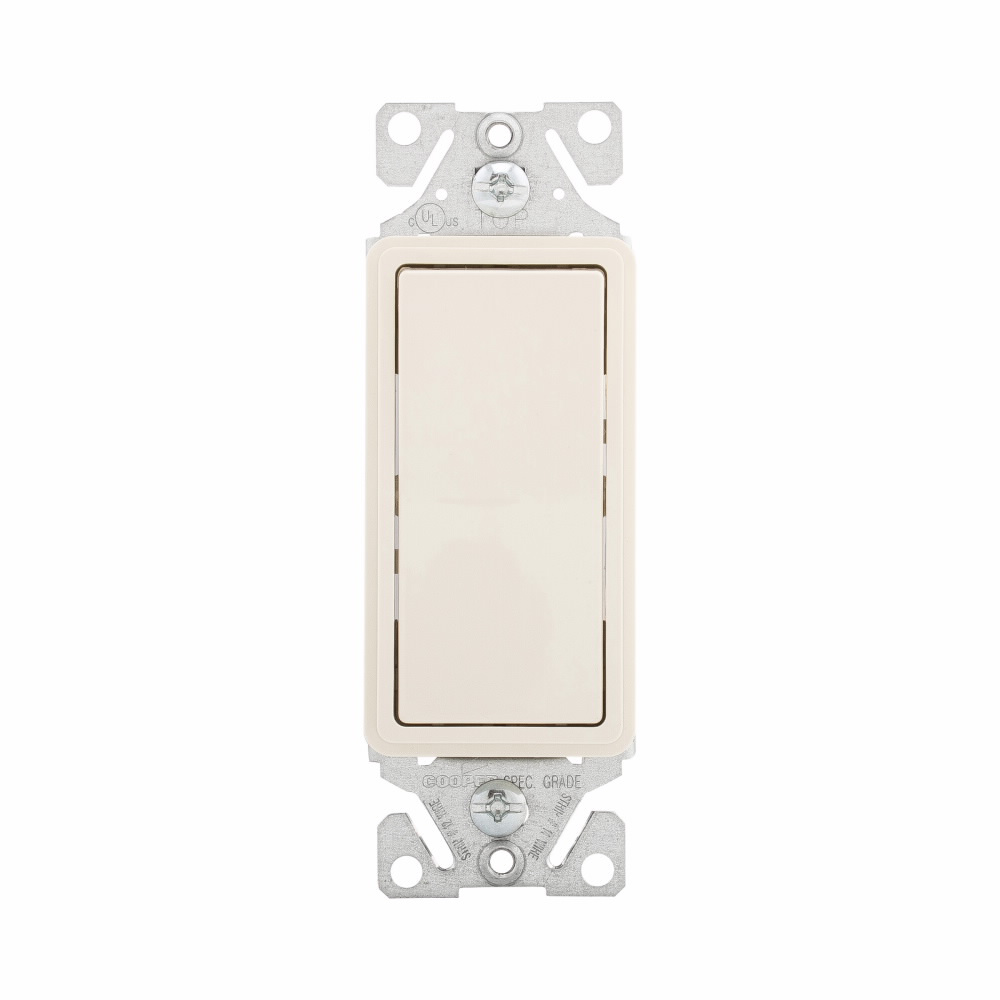

Eaton standard grade decorator switch — Color: Light almond, Number Of Poles: Single-pole, Switch Type: Single-pole, Actuator: Decorator

CWD 7501LA DECO SP SWT. METAL

CPD7501LA 7501LA 032664627538
4.04 / EA
http://schema.org/OutOfStock
Mayer-DDS-Eaton standard grade decorator switch — Color: Light almond, Number Of Poles: Single-pole, Switch Type: Single-pole, Actuator: Decorator-1
  • Amperage: 15 A
  • Height: 4.19 in
  • Length: 1.44 in
  • Material: Thermoplastic
  • Number of Poles: 1
  • Product Series: Standard Grade Switches
  • Product Type: Standard Grade Decorator Switch
  • Type: Switch Decorator
  • Voltage: 120/277 V
  • Weight: 0.001 lb
  • Width: 0.97 in
  • Wiring Method: Back And Push
Eaton standard grade decorator switch, #14-12 AWG, 15A, Flush, 120/277V, Back/push, Decorator, Maintained, Light almond, Motor Control, Fan, LED, Incand, ELV,MLV,CFL, Florscnt, Halogen, Single-pole, Thermoplastic
QTY
  • Product Description
  • Features
  • Specifications
Eaton standard grade decorator switch, #14-12 AWG, 15A, Flush, 120/277V, Back/push, Decorator, Maintained, Light almond, Motor Control, Fan, LED, Incand, ELV,MLV,CFL, Florscnt, Halogen, Single-pole, Thermoplastic
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Specifications
    • Length : 1.44 in
    • Height : 4.19 in
    • Width : 0.97 in
    • Weight : 0.001 lbs
    • Product Type : Standard grade decorator switch
    • Allowable Wire Size : #14-12 AWG
    • Type : Switch decorator
    • Amperage Rating : 15A
    • Voltage Rating : 120/277 V
    • Number Of Poles : Single-pole
    • Phase : Single-phase
    • Wiring Method : Back and push
    • Mounting Method : Flush
    • Closure Type : Maintained
    • Load Type Inc Flr LED Cfl Elv : Fan
    • Hal Mlv : Motor Control
    • Material : Thermoplastic
    • Actuator : Decorator
    • Color : Light almond
    • Product Series : Standard Grade Switches
