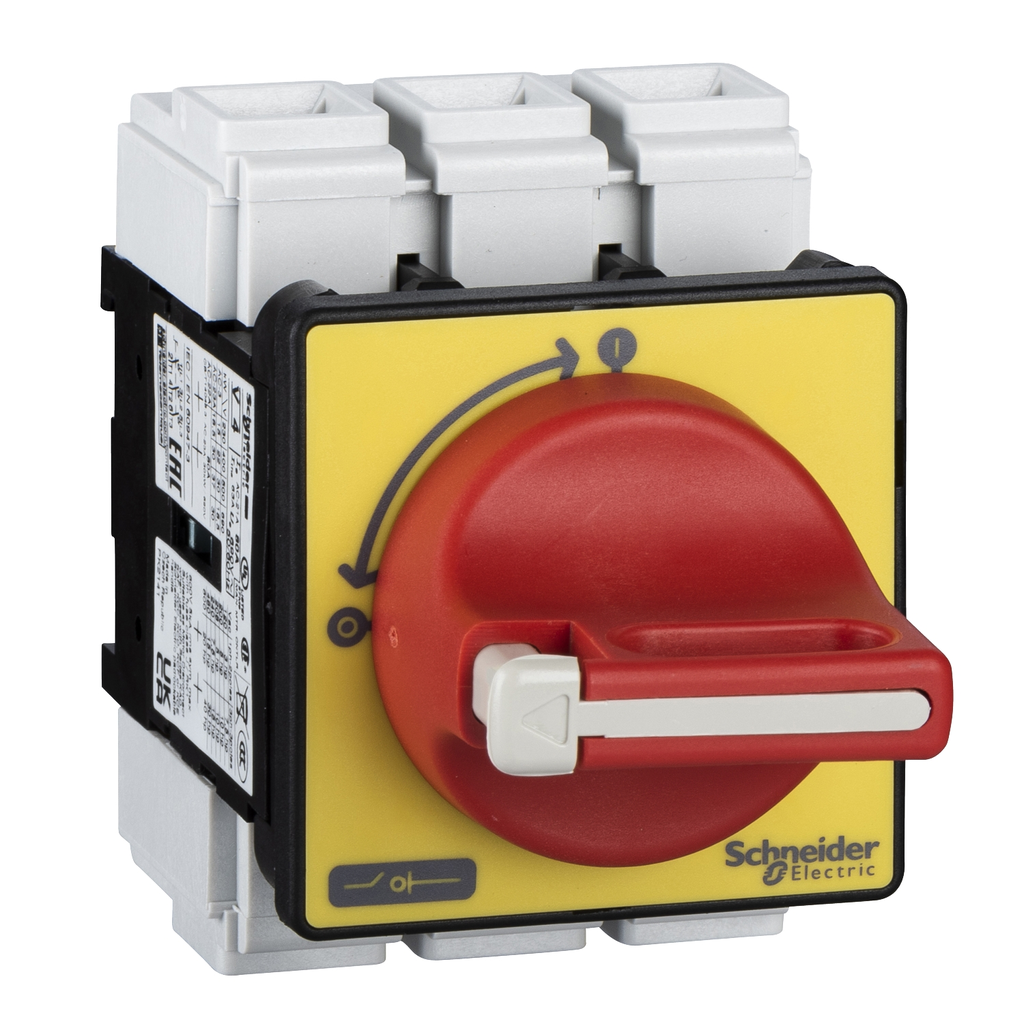

VCF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF4 is a 3-pole TeS

• Connections Terminals
• power circuit screw clamp terminals 25-25 mm² solid
• power circuit screw clamp terminals 16-16 mm²
• Mounting Support
• handle door
• switch door
• Making Capacity
• 800 A 400 V AC-21A
• 800 A 400 V AC-22A
• 800 A 400 V AC-23A
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.04909938306877692
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.4850328095210736
• Ue Rated Operational Voltage
• 690 V AC 50/60 Hz
• Icm Rated Short Circuit Making Capacity
• 2.1 kA 400 V at Ipeak
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• IP65
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 4 kg CO2 eq.
• 3.5374273778846352
• Rated Operational Power In W
• 18.5 kW 690 V AC-3)
• 15 kW 230...240 V AC-3)
• 22 kW 400...415 V AC-3)
• 30 kW 500 V AC-3)
• 30 kW 500 V AC
• Electrical Durability
• 30000 cycles AC-21
• 30000 cycles DC-1...5
• Fixing Mode
• by 4 screws handle
• Device Composition
• switch
• handle
• Fire Resistance
• 960 °C IEC 60695-2-1
• Add Ons
• VZ7
• VZ12
• VZ20
• VZ15
• VZ4
• Rotary Handle Padlocking
• 1 to 3 padlocks 4-8 mm
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 29 kg CO2 eq.
• 28.971796700100345
• Carbon Footprint Of The Distribution Phase A4
• 0.1091253899265686
• 0.1 kg CO2 eq.
• Tightening Torque
• power circuit 4-4 N.m screw clamp terminals
• Mechanical Robustness
• vibrations 10...150 Hz 1 gn) IEC 60068-2-6
• shocks 11 ms 30 Gn) IEC 60068-2-27
• shocks 11 ms
• Network Type
• DC
• AC
• Ie Rated Operational Current
• 57 A AC-23 Ue: 400 V
• Icw Rated Short Time Withstand Current
• 960 A 400 V 1 s
• Product Certifications
• CCC
• GL
• UL
• CSA
• UKCA
• Rated Conditional Short Circuit Current
• 10 kA 400 V 80 A aM
• 10 kA 400 V 80 A gG

• Physical Attributes
• Handle Color : red
• Handle Front Plate Color : yellow
• Conformance Attributes
• Standards : IEC 60947-3
• Complementary Attributes
• Uimp Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• ETIM 10 : EC000216
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 3.53742737788464
• Distribution Carbon Footprint : 0.109125389926569
• Installation Carbon Footprint : 4.90993830687769e-02
• Use Carbon Footprint : 28.9717967001003
• End Of Life Carbon Footprint : 1.48503280952107
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1936
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Base Dimension : 60 x 60 mm
• Compatibility Code : main switch disconnector
• Contacts Type And Composition : 3 NO
• Control Type : rotary handle
• Device Short Name : VCF
• Handle Color : red
• Handle Front Plate Color : yellow
• Intermittent Duty Class : 30
• Marking : 0 - 1
• Mechanical Durability : 30000 cycles
• Package Weight Lbs : 353.000 g
• Performance Level : high performance
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : emergency stop switch disconnector
• Protective Treatment : TC
• Range : TeSys
• Returnability : Yes
• Rotary Handle Mounting Style : direct
• Suitability For Isolation : yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 34 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 80 A
• Ithe Conventional Enclosed Thermal Current : 63 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 34.1524816605014
• Relationshiptype : Assembly relationship
• Accessories : VZ9
• General Attributes
• Product Or Component Type : emergency stop switch disconnector
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=643536&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 34.1524816605014
• Ambient Air Temperature For Operation : -20-50 °C
• Environmental Disclosure : ENVPEP2211006
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
• Height : 3.27 in
• Width : 2.36 in
