PASS & SEYMOUR

Canopy Switch

SW DOOR 15A 120/250VAC

PSS1200 1200 785007120004
38.67 / EACH
http://schema.org/OutOfStock

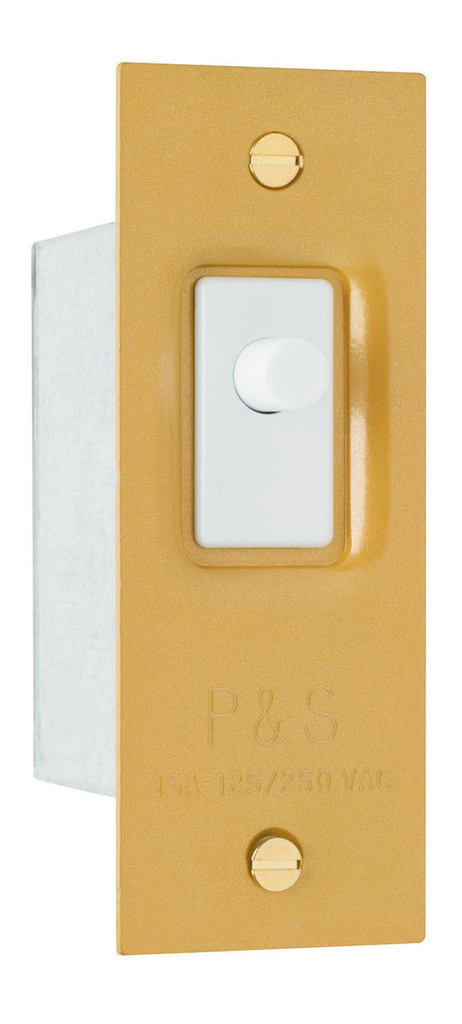

Mayer-DDS-Canopy Switch-1
  • Amperage: 15 A
  • Applications: Commercial, Hospitality
  • Country of Origin: Mexico
  • Depth: 1.344 in
  • Finish: Matte
  • Height: 4.031 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Operating Cycles: 30000
  • Switch Type: Canopy
  • Type: Switch, Tamper-Resistant
  • Voltage: 120 V, 250 V
  • Warranty Length: 1 yr
  • Width: 1.516 in
Pressure Sensitive Door and Canopy Switch, 15 Amp 120 Vac, 15 Amp 250 Vac
QTY
  • Features
  • Specifications
  • Features
    • Equipped with wire leads.
    • 1200 and 1201 complete with metal box and plate.
    • Only 14 oz. pressure actuates switch.
    • Back box cold rolled steel.
    • Plate is steel with a bronze coating.
  • Specifications
    • Country of Origin : Mexico
    • Depth : 1.344 in
    • Height : 4.031 in
    • Width : 1.516 in
    • Color : White
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Single Pole
    • Standard : UL Listed
    • Contact Configuration : N-O
    • Environmental Conditions : Flammability: UL94 V2
    • Special Features : Light ON, door OPEN. Equipped with wire leads. Complete with metal box and plate. Only 14 oz. pressure actuates switch. Back box cold rolled steel. Plate is steel with bronze coating.
    • Operating Cycles : 30000.0
    • Switch Type : Canopy
    • Application Sector : Commercial; Hospitality
    • Type : Switch; Tamper-Resistant
    • Number of Switches : 1.0
    • Mounting Type : Wall Box
    • Wall Plate Included : No
    • Indoor/Outdoor : Indoor
    • Connection Location : Side Only
    • Wire Connection Type : Wire Terminal
    • Warranty Type : 1-Year Limited Warranty
    • Features : Pressure Sensitive Switch
    • Requires Neutral Wire : Yes
    • Throw Type : Single Throw
    • Load Rating : 15 A @ 120/250 VAC
    • Number of Gangs : 1
    • Load Type : Xenon; LED; Halogen; Fluorescent; Incandescent; CFL; Universal
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Voltage : 250 VAC; 120 VAC
