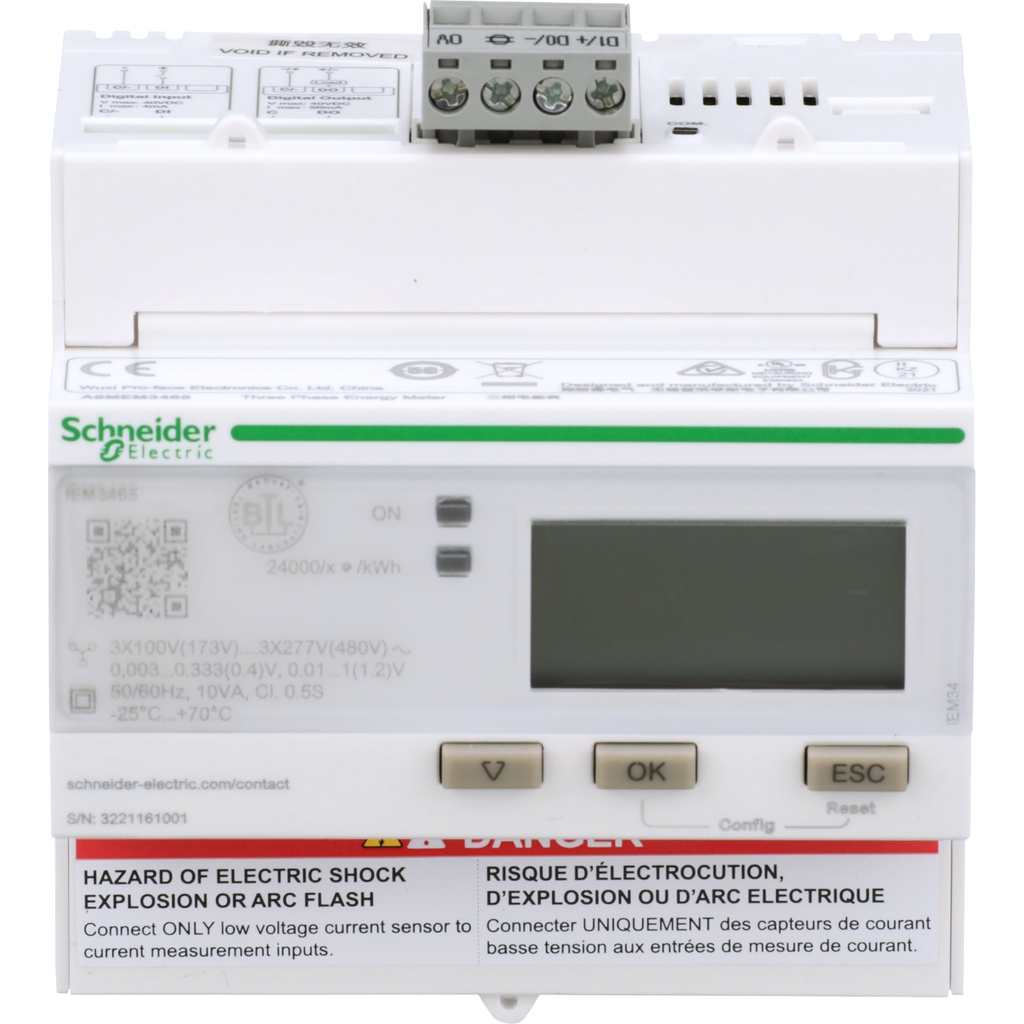

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm).

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Communications & Management Attributes
• Communication Port Protocol : BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds, BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds
• Communication Port Support : screw terminal block RS485, screw terminal block RS485
• Physical Attributes
• Wire Stripping Length : input/output circuit: 6 mm, input/output circuit: 6 mm, voltage circuit: 8 mm, voltage circuit: 8 mm, current circuit: 8 mm, current circuit: 8 mm, communication: 7 mm, communication: 7 mm
• Conformance Attributes
• Product Certifications : CE IEC 61010-1 safety), CE IEC 61010-1 safety), CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN 61557-12 power monitor), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), CE EN/IEC 61326-1 EMC), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61010-1 safety), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), UKCA BS EN 61326-1 EMC), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus UL 61010-1 safety), cULus UL 61010-1 safety), cULus EN 61010-1 safety), cULus EN 61010-1 safety), cULus EN 61010-1 safety), KZ, RCM
• Standards : BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 61010-1:2010, BS EN 61010-1:2010, EN 61010-1:2010, EN 61010-1:2010, IEC 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, UL 61010-1:2010, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20
• Complementary Attributes
• Maximum Value Measured : 99999999.9 kWh, 99999999 MWh
• Rated Voltage : 100-277 V +/- 20 %, 100-277 V +/- 20 %, 173-480 V +/- 20 %, 173-480 V +/- 20 %
• Important Information Attributes
• Information Displayed : tariff 4), tariff 4)
• Local Signalling : Green indicator light power ON, Green indicator light power ON, Green indicator light power ON, Yellow flashing LED accuracy checking, Yellow flashing LED accuracy checking, Yellow flashing LED accuracy checking, Yellow flashing LED accuracy checking, alarm overload, alarm overload
• Market Segment : buildings small building cost management: billing: main incomer, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings medium building cost management: billing: main incomer, buildings medium building cost management: billing: main incomer, buildings medium building cost management: billing: main incomer, buildings medium building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, data center cost management: billing, data center cost management: billing, data center cost management: billing, healthcare cost management: billing, healthcare cost management: billing, healthcare cost management: billing, industry cost management: billing, industry cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, data center cost management: cost allocation, data center cost management: cost allocation, healthcare cost management: cost allocation, healthcare cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, industry cost management: cost allocation, industry cost management: cost allocation
• Tightening Torque : input/output circuit: 0.5-0.5 N.m Philips screwdriver, input/output circuit: 0.5-0.5 N.m Philips screwdriver, input/output circuit: 0.5-0.5 N.m Philips screwdriver, voltage circuit: 0.5-0.5 N.m Philips screwdriver, voltage circuit: 0.5-0.5 N.m Philips screwdriver, voltage circuit: 0.5-0.5 N.m Philips screwdriver, current circuit: 0.8-0.8 N.m pozidriv screwdriver, current circuit: 0.8-0.8 N.m pozidriv screwdriver, current circuit: 0.8-0.8 N.m pozidriv screwdriver, communication: 0.5-0.5 N.m Philips screwdriver, communication: 0.5-0.5 N.m Philips screwdriver, communication: 0.5-0.5 N.m Philips screwdriver
• Type Of Measurement : active and reactive energy, active and reactive power, current, voltage
• Carbon Footprint Of The Distribution Phase A4 : 0.7562141915322398, 0.8 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.7686014160475743, 0.8 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.009464255080212218
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 14 kg CO2 eq., 13.91208685737422
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 54 kg CO2 eq., 54.120371819354375
• Connections Terminals : current circuit screw terminals 6-6 mm², current circuit screw terminals 6-6 mm², current circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm², voltage circuit screw terminals 2.5-2.5 mm², voltage circuit screw terminals 2.5-2.5 mm², input/output circuit screw terminals 1.5-1.5 mm², input/output circuit screw terminals 1.5-1.5 mm², input/output circuit screw terminals 1.5-1.5 mm², communication screw terminals 2.5-2.5 mm², communication screw terminals 2.5-2.5 mm², communication screw terminals 2.5-2.5 mm²
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• HTML Description : iEM3465 Energy Meter - BACnet - 1 DI - 1 DO - Multi-Tariff - LVCT
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : Yes
• Field Service Division : DPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1507016_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Compatibility Code : iEM3465
• Device Short Name : iEM3465
• Energy Efficiency Optimized : False
• Package Weight Lbs : 359 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : energy meter
• Range : Acti9
• Returnability : Yes
• Sustainable Packaging : No
• Technology Type : electronic
• Total Lifecycle Carbon Footprint : 70 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP1507016EN
• Pep Verification Date : 2025-03-27
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Acti9 iEM34xx / iEM35xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C - IEC, -25-70 °C - IEC
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• IP Degree Of Protection : IP40 front panel: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529, IP20 body: conforming to IEC 60529, IP20 body: conforming to IEC 60529
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 5-95 % 36-36 °C, 5-95 % 36-36 °C
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 69.56673853938862
• 9 MM Pitches : 10
• Circularity Profile : ENVEOLI1507016_V2
• Environmental Disclosure : ENVPEP1507016EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP1507016EN
• Pep Verification Date : 2025-03-27
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : energy meter
• Output Attributes
• Number Of Outputs : 1 digital (static), 1 digital (static)
• Output Voltage : 5...40 V DC@50 mA, 5...40 V DC@50 mA, 5...40 V DC@50 mA
• Input Attributes
• Analogue Input Type : low voltage current transformer 0.333 V or 1 V, low voltage current transformer 0.333 V or 1 V
• Number Of Inputs : 1 digital 0...5 V/11...40 V 24 V DC, 1 digital 0...5 V/11...40 V 24 V DC, 1 digital 0...5 V/11...40 V 24 V DC, 1 digital 0...5 V/11...40 V 24 V DC, 1 digital 0...5 V/11...40 V 24 V DC
