SQUARE D

Socket, General Purpose Relays, for 782 relays, DPDT, 8 pins, screws clamp terminals, 16A, 300V

SKT 16A 300V 8 PIN SOCKET

SQD70782D81A 70782D81A 3606480278112
15.46 / EA
http://schema.org/OutOfStock

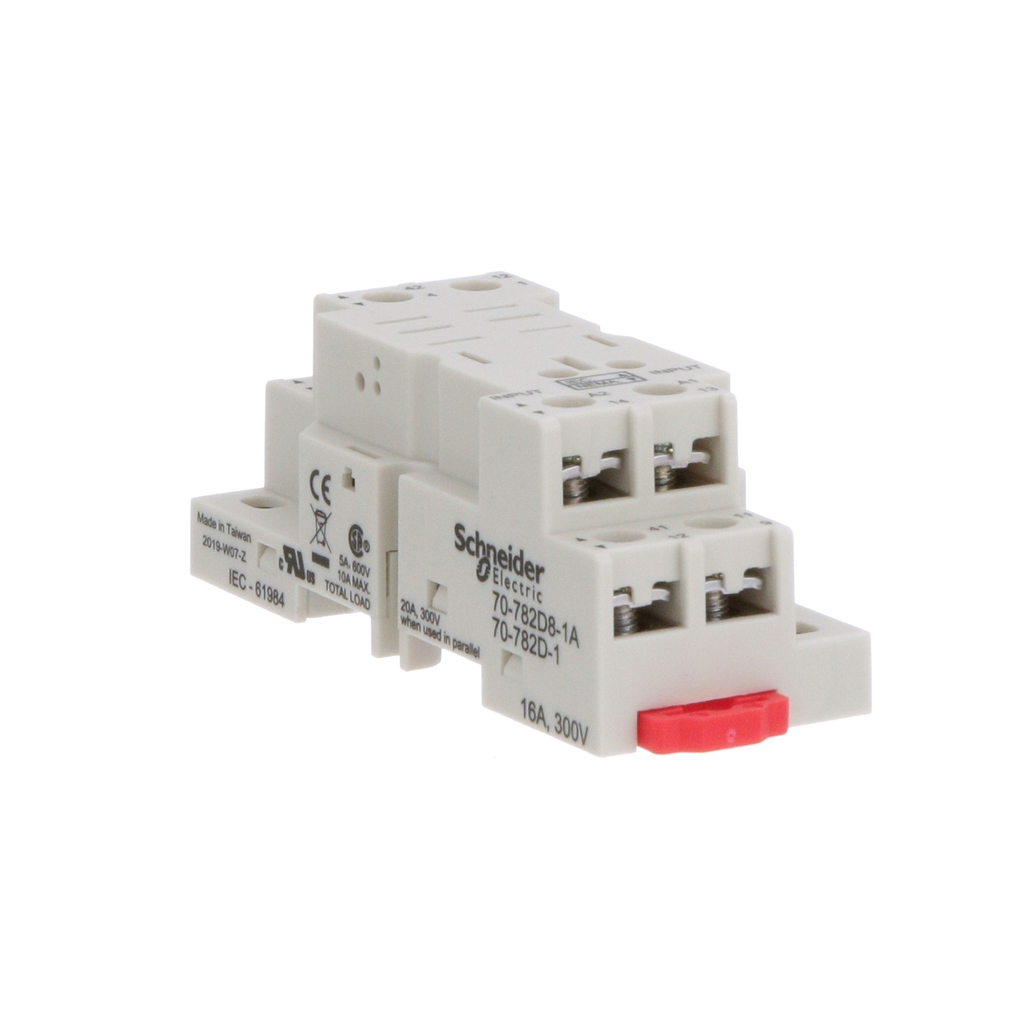

Mayer-DDS-Socket, General Purpose Relays, for 782 relays, DPDT, 8 pins, screws clamp terminals, 16A, 300V-2
Legacy general purpose relay series accessory , optional socket for 782R series relays with DPDT configuration contacts rated 16A at 300V. Screw clamping connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
QTY
  • Product Description
  • Features
  • Specifications
Legacy general purpose relay series accessory , optional socket for 782R series relays with DPDT configuration contacts rated 16A at 300V. Screw clamping connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Fixing Mode : by screw M3.5, M3.5 panel, clip-on 35 mm symmetrical DIN rail
    • Carbon Footprint Of The Distribution Phase A4 : 0.0192061097, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1299334996
    • Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.656159601
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Connections Terminals : screw clamp terminals solid for output, screw clamp terminals stranded for output
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contact Terminal Arrangement : mixed
    • Package Weight Lbs : 55.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : socket
    • Range Of Product : Legacy
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Tightening Torque : < 0.8 N.m
    • Total Lifecycle Carbon Footprint : 0.8 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2202006EN
    • Pep Verification Date : 2023-01-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : This socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : ZHEN YIN
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Product Compatibility : relay 782XBX, diode 70-BSMD, signalling device 70-BSMLG, suppressor module 70-BSMM
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.8052992103
    • Environmental Disclosure : ENVPEP2202006EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2202006EN
    • Pep Verification Date : 2023-01-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : socket
    • Range Of Product : Legacy
  • Complementary Attributes
    • Line Rated Current : 16 A
    • UE Rated Operational Voltage : 300 V
