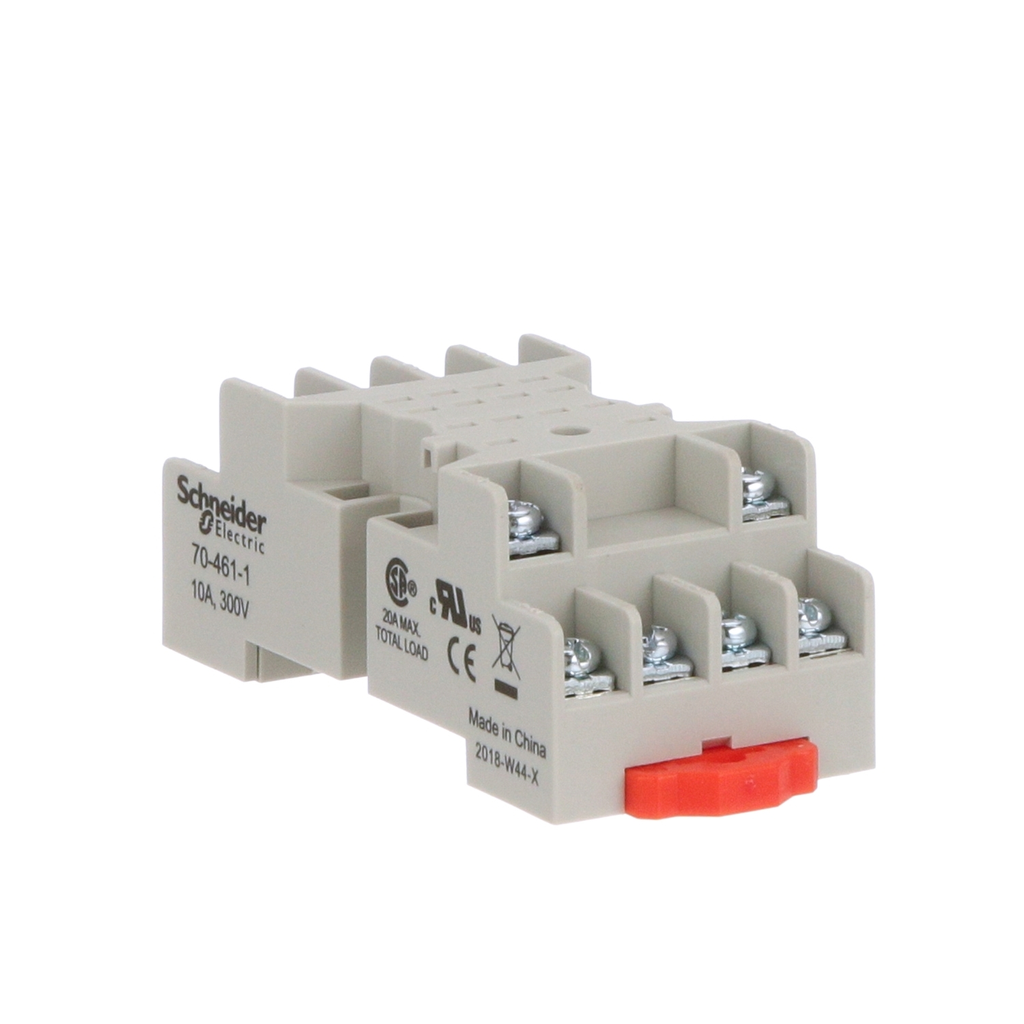

Legacy general purpose relay series accessory , optional socket for 782H/792 series relays with 4PDT configuration contacts rated 10A at 300V. Screw clamping connect terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Connections - Terminals : panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 solid for output || panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 stranded for output
• Tightening Torque : chassis 0.8 N.m, AWG 16...AWG 14, copper || screw < 0.8 N.m
• Line Rated Current : 10 A
• Fixing Mode : by screws, M3 panel
• Contact Terminal Arrangement : mixed
• Net Weight : 50 g
• [Ue] Rated Operational Voltage : 300 V
• Width : 30.7 mm
• Depth : 64 mm
• Shape Of Screw Head : combination roundhead
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1511021EN
• Packaging Without Single Use Plastic : Yes
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Sustainable Packaging : Yes
• Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.7320901912
• Specifications
• Country of Origin : China
• Width : 30.7 mm
• Weight : 50 g
• Product Compatibility : relay 792XDX || relay 782XDXH
• Range Of Product : Harmony Electromechanical Relays
• Number Of Terminals : 14
• Product Or Component Type : socket
• Contacts Type And Composition : 4 C/O
• Switch Function : 4PDT
• Environment
• Product Certifications : UL || CSA || CE
• Ambient Air Temperature For Operation : -40-70 °C
• Flame Retardance : UL94-V0
• Ambient Air Temperature For Storage : -40-105 °C
