PASS & SEYMOUR

Flexcor® Support Grips Service and Bus Drop, Single Eye, Cable Diameter 0.70 - 0.85 in.

BUS DROP SNG U EYE .7-.85 DIA

PSSFC70 FC70 785007998740
48.77 / EACH
http://schema.org/OutOfStock

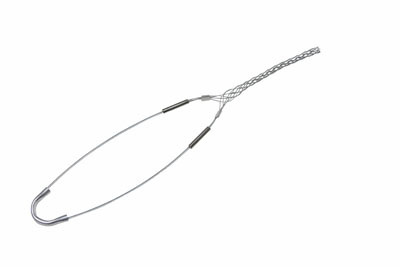

Mayer-DDS-Flexcor® Support Grips Service and Bus Drop, Single Eye, Cable Diameter 0.70 - 0.85 in.-1
  • Applications: Industrial
  • Construction: Support And Strain Relief Grips, Various Types Of Pulling
  • Country of Origin: Mexico
  • Indoor/Outdoor: Indoor, Outdoor
  • Length: 8.5 in
  • Type: Support Grip
  • Width: 0.85 in
FC70: Bus Drop, Closed Mesh, Single Eye, Cable Diameter 0.70 - 0.85 inches, Bale Length 9-in, Mesh Length 8.5-in, Break Strength 1900 lbs.
QTY
  • Product Description
  • Features
  • Specifications
FC70: Bus Drop, Closed Mesh, Single Eye, Cable Diameter 0.70 - 0.85 inches, Bale Length 9-in, Mesh Length 8.5-in, Break Strength 1900 lbs.
  • Features
    • Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing.
    • Bus drop grips are woven of galvanized steel wire.
    • They are offered with either the single eye or locking bale attachment.
    • Support grips are woven of corrosion-resistant tinned-stainless steel wire.
    • Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
    • Bale Length: 9: Mesh Length: 8.5
  • Certifications
    • UL Listed
    • CSA Listed
  • Specifications
    • Length : 8.5 in
    • Width : 0.85 in
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
    • Eye Style : Single
    • Type : Support Grip
    • Mesh Length : 8.5 in
    • Indoor/Outdoor : Both
    • Special Features : Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing. Bus drop grips are woven of galvanized steel wire. They are offered with either the single eye or locking bale attachment.
    • Maximum Cable Range : 0.7 in
    • Minimum Cable Range : 0.85 in
    • Application Sector : Industrial
    • Cable Diameter Range : 0.700-0.850 in
    • Approximate Break Strength : 1900.0 lb
    • Capacity : Various Cable Diameter Ranges
    • Standard : UL/CSA Approval (consult factory)
    • Mounting : Consult the Factory for Mounting Recommendations
    • Construction : Support and Strain Relief Grips, Various Types of Pulling
