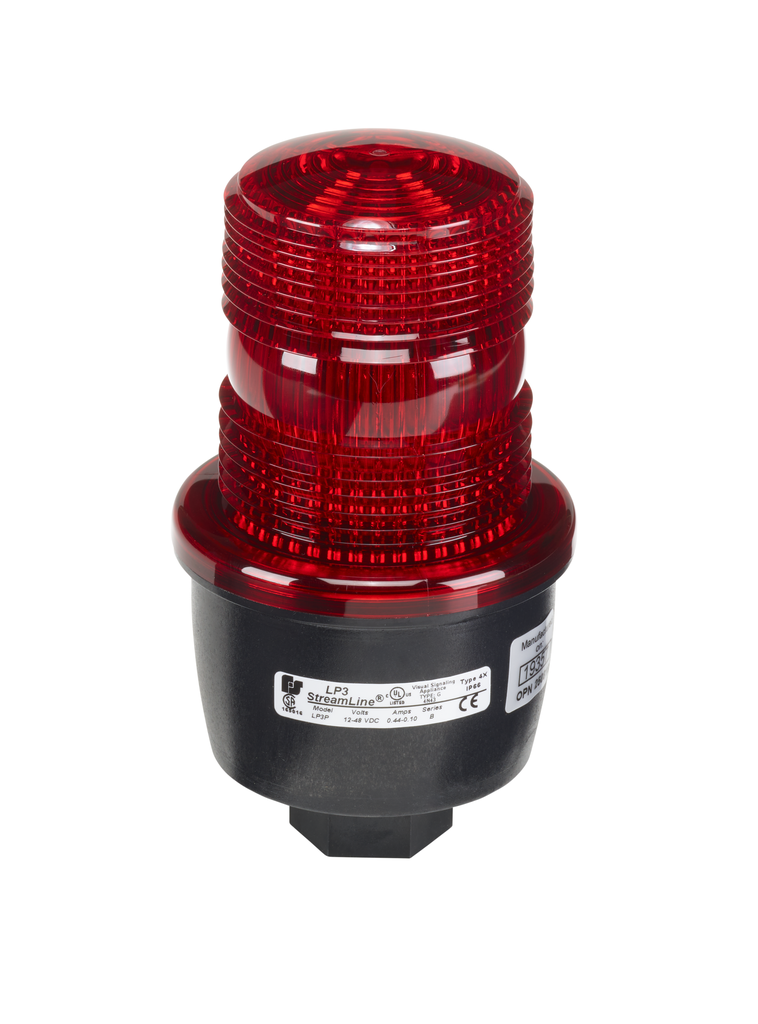

Model LP3 is offered in five mounting configurations. The LP3S features a three-hole surface mount — ideal for control panels and other flat or flush surfaces. The LP3E features a standard A-19 medium Edison screw-in base. The LP3M features a 1/2" NPT male pipe mount and 18" wire leads. LP3P features an integrated 1/2-inch NPT pipe mount. The “T-mount” LP3T has a popular 2-hole design for wall or flush mounting. Models LP3M, LP3S and LP3T include a surface gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3M, LP3S and LP3T when installed flush with a panel. All LP3 units feature a threaded screwon lens to allow for tool free wiring and strobe tube replacement. Like all StreamLine® products, the LP3 is designed with OEM applications in mind.

• Features
• Available in 12-48VDC, 120VAC and 240VAC; LP3E is 120VAC only
• Five mounting options: Edison (E), 1/2-inch NPT male pipe (M), Surface (S), T-Mount (T), integrated 1/2-inch NPT pipe (P)
• Five lens colors: Amber, Blue, Clear, Green and Red
• Screw-on lens provides easy access
• Conformal coated PCBA
• Type 4X, IP66 enclosure
• Models LP3M, LP3P and LP3S are IP69K compliant (excludes LP3E and LP3T)
• PLC and triac compatible
• CSA Certified
• UL and cUL Listed

• Specifications
• Mount Type : 1/2-Inch NPT Pipe
• Body Color : Black
• Environment Rating : Ordinary Location
• Lens Color : Red
• Light Source : Strobe
• Voltage : 120VAC
• Diameter : 3.13 in
• Height : 5.82 in
• Weight : 0.46 lbs
• Shipping Weight : 0.82
