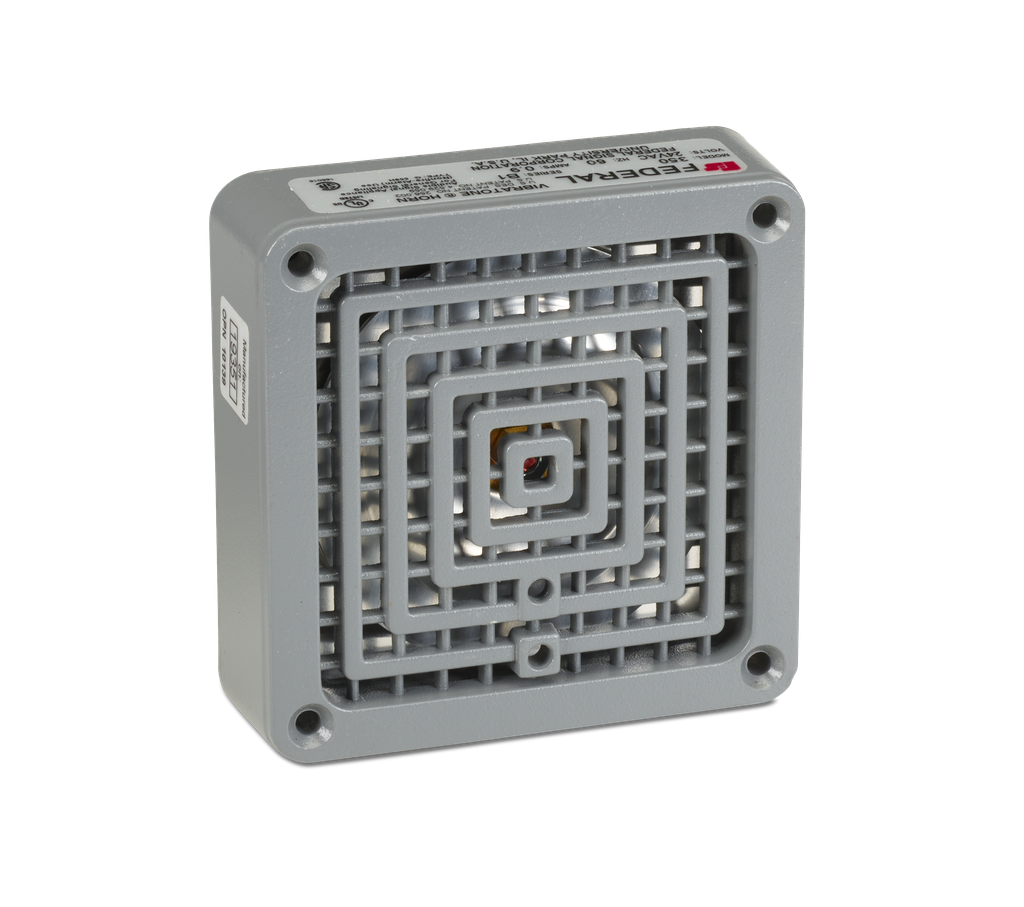

350 Vibratone® Horn

FED GRILL HORN 120V

FED35012030 350-120-30 782979205302
155.45 / BOX
http://schema.org/OutOfStock
Mayer-DDS-350 Vibratone® Horn-1
Model 350 Vibratone® Horn produces a loud tone by the electro-mechanical vibration of a diaphragm. Its compact size, loud output and heavy-duty construction makes Model 350 ideal for industrial and institutional signaling applications. It’s popularly used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas. Model 350 is enclosed in a zinc die-cast housing and sealed with gray powder-coated paint with a stainless steel diaphragm.
QTY
  • Product Description
  • Features
  • Specifications
Model 350 Vibratone® Horn produces a loud tone by the electro-mechanical vibration of a diaphragm. Its compact size, loud output and heavy-duty construction makes Model 350 ideal for industrial and institutional signaling applications. It’s popularly used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas. Model 350 is enclosed in a zinc die-cast housing and sealed with gray powder-coated paint with a stainless steel diaphragm.
  • Features
    • Available in 12VAC, 24VAC, 120VAC and 240VAC
    • Coded or sustained tones
    • Produces 100 dBa @ 10' (110 dBa @ 1m)
    • Surface or flush mounting options
    • Type 4X when installed with optional Weatherproof Back Box (Model WB) or Panel Mount Gasket Kit (Model K8435666A).
    • Type 4X and Type 12 when installed with optional Surface Mount Trim Ring (Model TR).
    • All 4X accessories are sold separately.
    • CSA Certified
    • UL and cUL Listed
  • Specifications
    • Mount Type : Surface or Flush
    • Body Color : Gray
    • Environment Rating : Ordinary Location
    • Voltage : 120VAC
    • Depth : 2.19 in
    • Height : 4.06 in
    • Width : 4.06 in
    • Weight : 1.4 lbs
    • Shipping Weight : 1.9
