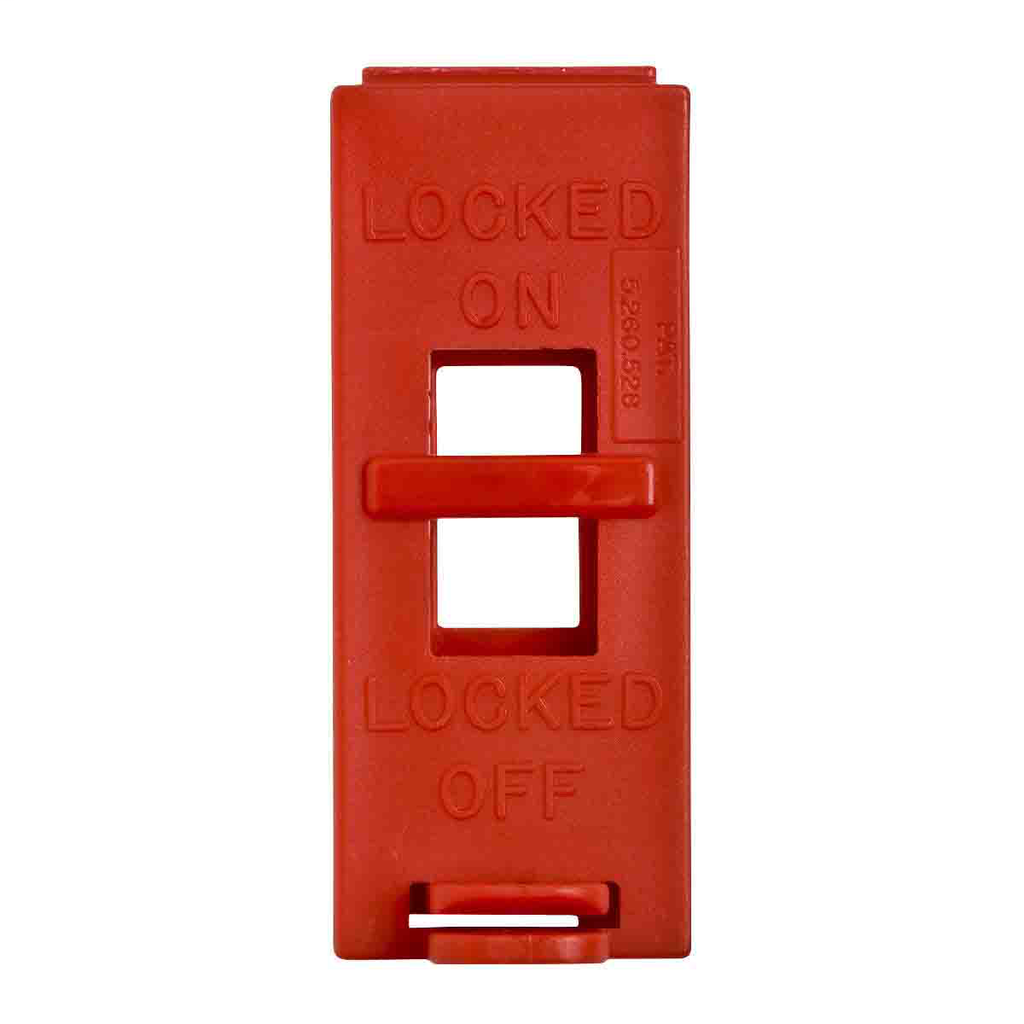

Red Wall Switch Lockout

BRADY 65392 WALL SW LOCKOUT

BDY65392 65392 754473653927
15.41 / Brady Sell Pack
http://schema.org/OutOfStock
Mayer-DDS-Red Wall Switch Lockout-1
  • Depth: 1 in, 25.4 mm
  • Dimensions: 1 in, 1.42 in, 25.4 mm, 3.56 in, 36.20 mm, 90.40 mm
  • Height: 3.56 in, 90.40 mm
  • Material: Polypropylene
  • Max. Temperature: 80 °C
  • Min. Temperature: -20 °C
  • Width: 1.42 in, 36.07 mm, 36.20 mm
Wall switch lockouts may be used with most wall-mounted switches and are simple to install using existing screws.
QTY
  • Product Description
  • Features
  • Specifications
Wall switch lockouts may be used with most wall-mounted switches and are simple to install using existing screws.
  • Features
    • Can lock a wall switch into the "off" or "on" positions, depending upon your safety or security need
    • Installs over switch plate using existing screws
    • Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
    • Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
  • Specifications
    • Brand Name : Brady®
    • Color : Red
    • Enables Industry Compliance : OSHA 1910.147
    • Language : English
    • Maximum Number of Padlocks : 1
    • Primary Noun, Basic Function : Lockout Device
    • Risk Type : Electrical Risk
    • Total Qty per Pack : 1 Piece(s) / Pack
    • Wall Switch Type : Toggle
    • Adhesive (Y/N) : No
    • Brady Material Number : LOTO-42
    • Lockout Material : Polypropylene
    • Material : Polypropylene
    • SAP B-Number : LOTO-42
    • Depth (in/ft/yd) : 1 in
    • Depth (mm/cm/m) : 25.4 mm
    • Dimensions : 3.56 in H x 1.42 in W x 1 in D
    • Dimensions (Metric) : 36.20 mm W x 90.40 mm H x 25.4 mm D
    • Height (in/ft/yd) : 3.56 in
    • Height (mm/cm/m) : 90.40 mm
    • Maximum Service Temperature °C : 80 °C
    • Maximum Shackle Diameter (in/ft/yd) : 0.31 in
    • Maximum Shackle Diameter (mm/cm/m) : 7.87 mm
    • Maximum Switch Width (in/ft/yd) : 1.16 in
    • Maximum Switch Width (mm/cm/m) : 29.46 mm
    • Minimum Service Temperature °C : -20 °C
    • Sign Size-General : 3.56 in x 1.42 in
    • Size - W x H x D (mm) : 36.20 x 90.40 x 25.4
    • Size - Width (mm) : 36.20 mm
    • Width (in/ft/yd) : 1.42 in
    • Width (mm/cm/m) : 36.07 mm
  • Regulatory Information
    • Contains CA PROP 65 Substance : No - Does not contain
    • Contains CA PROP 65 Substance : No
    • Contains Heavy Metal(s) : No - Does not contain
    • DOT Regulated Product : No = not regulated by DOT
    • EU RoHS Compliance : Not Applicable
    • EU RoHS Compliant : No
    • SDS Safety Data Sheet required : No = MSDS/SDS is not required
