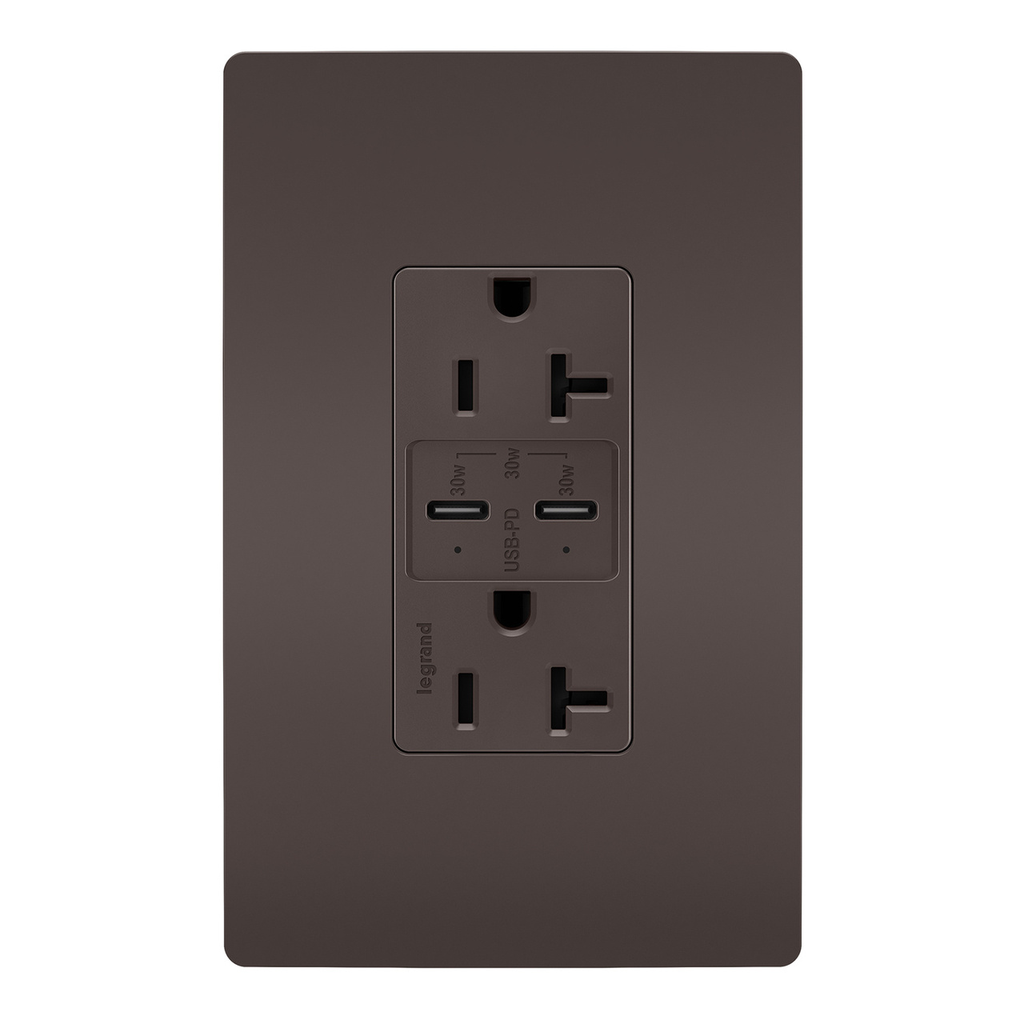

Made to deliver a leading 30 Watts of power and featuring two built-in Type-C USB connections, this solution adds advanced Power Delivery to the industry-leading amperage of our USB line. The result is a faster, future-proof option for convenient in-wall charging, specially designed to optimize performance for your Power Delivery-enabled devices. Easily replace a traditional outlet in as little as ten minutes to gain the modern functionality of intelligent charging for maximized speeds, complete with multi-layered overcurrent protection to keep the outlet and your devices safe from damage.

• Features
• Charge the latest devices up to 2X as fast, thanks to 6 amps and a whopping 30W of power courtesy of advanced Power Delivery
• Built for intelligent charging, the outlet detects and delivers the precise amount of power needed to maximize charging speeds
• Provides fast and convenient built-in charging through two future-proof USB Type-C ports, accommodating new and upcoming devices without an adapter
• Helpful indicator light lets you see charging status at a glance. Light glows yellow while charging is in progress, and shows green once the device battery is sufficiently charged
• Includes multiple layers of overcurrent protection, ensuring the outlet and your favorite devices can charge at optimal levels without risk of damage
• All Legrand USB Outlets are manufactured through high-quality design, sourcing and production, and backed by a Lifetime Warranty
• Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with ""invisi-shutters"" for an invisible effect
• Replaces a traditional outlet easily, in as little as 10 minutes, with features like scalloped cover design and posted side-wire terminal screws for faster installation
• More color options available to fit any style, including finishes to match current hardware and lighting trends
• Certifications
• RoHS Compliant
• UL Listed
• cULus Listed

• Specifications
• Depth : 1.42 in
• Height : 2.63 in
• Amperage : 20.0 A
• Voltage : 125.0 V
• Width : 1.69 in
• Country of Origin : China
• Mounting Type : Box
• Number of USBs : 2.0
• USB Amperage : 6.0 A
• USB Wattage : 30.0 W
• Number of Wires : 3.0
• Indoor/Outdoor : Indoor
• Wire Size : 14 - 10 AWG
• Frequency Rating : 60 Hz
• Wall Plate Included : No
• Features : USB-C Charging
• Is Tamper-Resistant : Yes
• Outlet Type : USB-Charging
• Number of Receptacles : 2.0
• Number of Poles : Double Pole
• Outlet Type : Tamper-Resistant
• Application Sector : Commercial
• Connection Location : Side Only
• NEMA Configuration Code : 5-20R
• Special Features : Ultra Fast USB
• Wire Connection Type : Screw Terminals
• Warranty Type : 1-Year Limited Warranty
• Operating Temperature Max : 60.0 °C
• Operating Temperature Min : -40.0 °C
• Jigsaw Channel Availability : Distribution
• Operating Temperature : -40°-60°C
• Color : Brown
• Finish : Satin
• Product Line : Pass & Seymour
