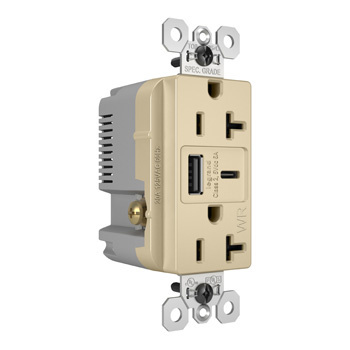

15W Spec Grade Weather-Resistant USB Outlet, Type A/C, 20A, Tamper-Resistant, Ivory

20A 125V WR TR REC + USBA+C FA

PSSWRTR20USBAC6I WRTR20USBAC6I 785007254228
75.79 / EA
http://schema.org/OutOfStock
Mayer-DDS-15W Spec Grade Weather-Resistant USB Outlet, Type A/C, 20A, Tamper-Resistant, Ivory-1
  • Amperage: 20 A
  • Applications: Commercial, Healthcare, Multi-Dwelling Unit
  • Country of Origin: China
  • Depth: 1.425 in
  • Height: 2.677 in
  • Indoor/Outdoor: Outdoor
  • Mounting Type: Box
  • Outlet Type: Tamper-Resistant, USB-Charging, Weather-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.693 in
  • Wire Size: 10 AWG
Tamper-Resistant, Weather-Resistant USB Charging Receptacle A/C 20A 125A 6A
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant, Weather-Resistant USB Charging Receptacle A/C 20A 125A 6A
  • Features
    • Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port.
    • Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations.
    • AC USB receptacles available in 15 and 20A, 125V Specification Grade and Hospital Grade.
    • AC USB receptacles are tamperresistant to meet NEC®. Patented shutter system – now with black ""invisi-shutters"" for an invisible effect preferred by end-users – helps prevent improper insertion of foreign objects.
    • Reinforced nylon USB Type-A ports to withstand abuse over the life of the product.
    • Type-A and Type-C ports carry a minimum rating of 10,000 insertions.
    • Stainless steel auto-ground clips assure positive ground.
    • Slim design allows for installation in standard depth wall boxes.
    • Multiple color options available.
    • Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.
  • Specifications
    • Depth : 1.425 in
    • Height : 2.677 in
    • Amperage : 20.0 A
    • Width : 1.693 in
    • Voltage : 125.0 V
    • Country of Origin : China
    • Mounting Type : Box
    • Number of USBs : 2.0
    • USB Amperage : 6.0 A
    • USB Wattage : 15.0 W
    • Features : Weatherproof
    • Wire Size : 14 - 10 AWG
    • Indoor/Outdoor : Outdoor
    • Wall Plate Included : No
    • Features : USB-A Charging
    • Features : USB-C Charging
    • Is Tamper-Resistant : Yes
    • Outlet Type : USB-Charging
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Connection Location : Side Only
    • NEMA Configuration Code : 5-20R
    • Outlet Type : Weather-Resistant
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Application Sector : Multi-Dwelling Unit
    • Color : Ivory
    • Product Line : Pass & Seymour
