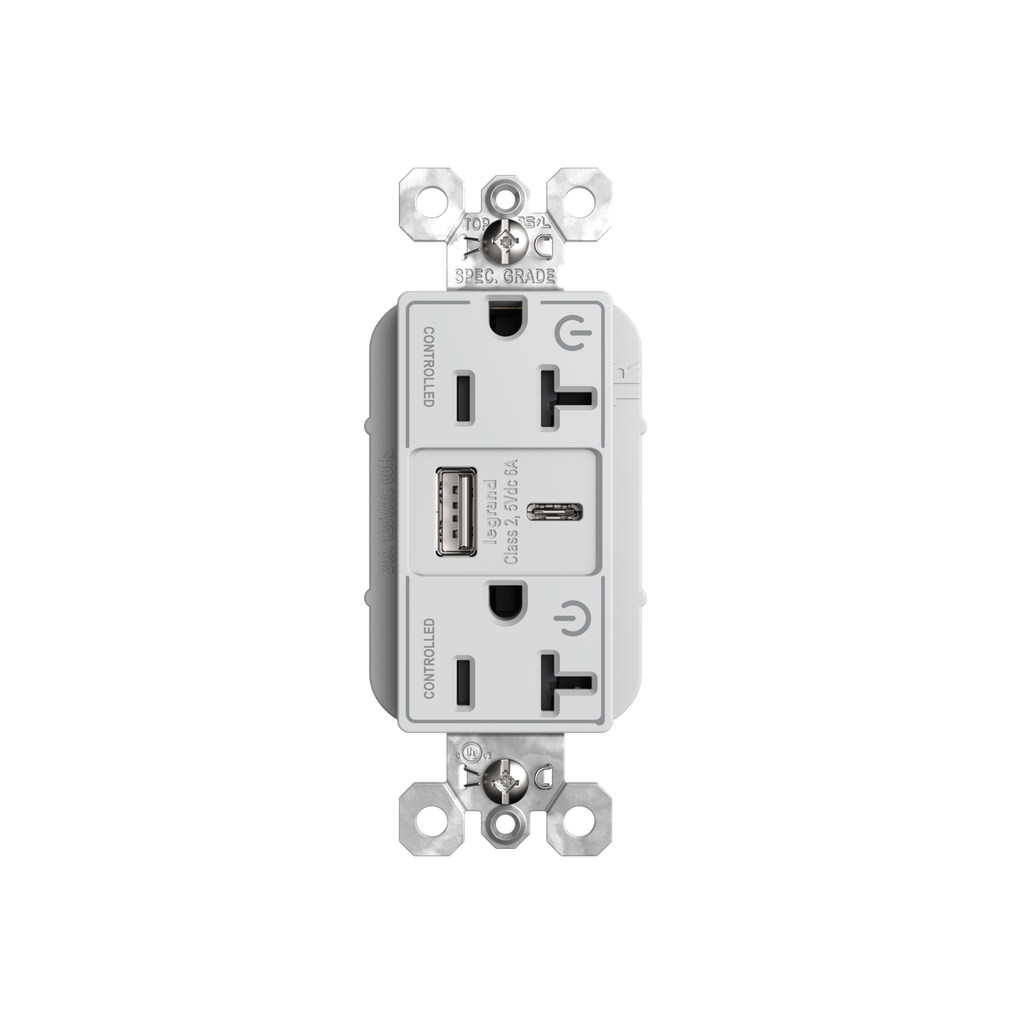

Pass & Seymour® Plug Load Fed Spec Tamper-Resistant Duplex Receptacles with USB Charging capabilities and permanent markings are designed with strength, durability and code market, and are capable of withstanding heavy use due to their UL Federal Specification certification. This product features 6A USB charging capability, auto-ground clips, zinc-plated ground terminal screw, as well as triple-wipe brass contacts for lasting retention. The screw-pressure-plate back wiring makes installation fast and easy.

• Features
• Code compliant Plug Load Controlled receptacle with permanent markings that use abrasion resistant ink. Clear indication to identify a controlled wiring device from others devices.
• Overall 6.0A charging capability with smart current- sharing technology to allow for full 3A through a single port.
• Combination AC USB receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
• C receptacles are tamper-resistant to meet NEC. Patented shutter system – now with black ““invisi-shutters”” for an invisible effect preferred by end-users – helps prevent improper insertion of foreign objects.
• Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with ""invisi-shutters"" for an invisible effect.
• Provides fast and convenient built-in charging, without sacrificing plugs or requiring a bulky adapter.
• Designed to help you meet all IECC, ASHRAE energy standards.

• Specifications
• Depth : 1.42 in
• Temperature Rise : Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
• Height : 2.68 in
• Width : 1.69 in
• Color : White
• Product Line : Pass & Seymour
• Country of Origin : Vietnam
• Flanged : No
• Standard : ETL
• Standard : RoHS
• Standard : cULus
• Amperage : 20.0 A
• Voltage : 125.0 V
• Mounting Type : Box
• Number of USBs : 2.0
• USB Amperage : 6.0 A
• Number of Wires : 3.0
• Indoor/Outdoor : Indoor
• Wire Size : 14 - 10 AWG
• Frequency Rating : 60 Hz
• Wall Plate Included : No
• Features : USB-A Charging
• Features : USB-C Charging
• Is Tamper-Resistant : Yes
• Is Weather Resistant : No
• Features : Dual-Controlled
• Outlet Type : USB-Charging
• Number of Receptacles : 2.0
• Outlet Type : Hospital Grade
• Number of Poles : Double Pole
• Outlet Type : Tamper-Resistant
• Application Sector : Commercial
• Connection Location : Side Only
• NEMA Configuration Code : 5-20R
• Device Backbody Size : Full-Size
• Device Front Face Size : Full-Size
• Wire Connection Type : Screw Terminals
• Warranty Type : 1-Year Limited Warranty
• Operating Temperature Max : 140.0 °F
• Operating Temperature Min : -40.0 °F
• Operating Temperature : -40°-60°C
• Operating Temperature : -40°-140°F
• Dielectric Strength : Withstands 1500V minimum
• Operating Humidity : 0-90% RH (Non-Condensing)
• Environmental Conditions : Flamability Rating UL94 V2
