PASS & SEYMOUR

30A NEMA L1430 Single Receptacle

LKG SGL RECEPT 4W 30A 125/250V

PSSL1430R L1430-R 785007143058
58.33 / EACH
http://schema.org/OutOfStock

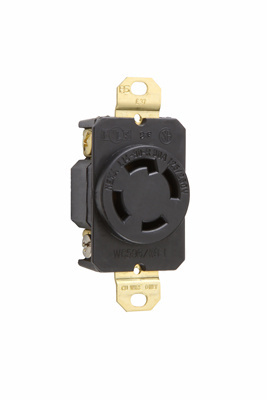

Mayer-DDS-30A NEMA L1430 Single Receptacle-1
  • Amperage: 30 A
  • Applications: Industrial
  • Country of Origin: Mexico
  • Depth: 1.28 in
  • Height: 2.42 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 3
  • Number of Receptacles: 1.0
  • Number of Wires: 4
  • Outlet Type: Locking
  • Voltage: 125/250 V
  • Warranty Length: 1 yr
  • Width: 1.61 in
  • Wire Size: 10 AWG
Turnlok® Single Receptacle 4-Wire 30A 125/250V
QTY
  • Product Description
  • Features
  • Specifications
Turnlok® Single Receptacle 4-Wire 30A 125/250V
  • Features
    • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
    • Face color coding by voltage facilitates locating and mating of proper devices.
    • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
    • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
    • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
    • Side and external screw-pressure-plate back wire capability.
    • Accepts #14 - #10 AWG.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
    • RoHS Compliant
  • Specifications
    • Depth : 1.28 in
    • Height : 2.42 in
    • Amperage : 30.0 A
    • Standard : UL 498
    • Width : 1.61 in
    • Country of Origin : Mexico
    • Standard : FEDSPEC
    • Voltage : 125/250 V
    • Number of Wires : 4.0
    • Outlet Type : Locking
    • Indoor/Outdoor : Indoor
    • Number of Poles : 3-Way
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Features : Impact Resistant
    • Number of Receptacles : 1.0
    • Application Sector : Industrial
    • Features : Brass Mounting Strap
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Special Features : Locking Device, impact resistant
    • Color : Black
    • Product Line : Pass & Seymour
