PASS & SEYMOUR

30A L2230 Single Receptacle

R SGL 5W30A277/480V T/L

PSSL2230R L2230-R 785007223057
101.59 / EACH
http://schema.org/OutOfStock

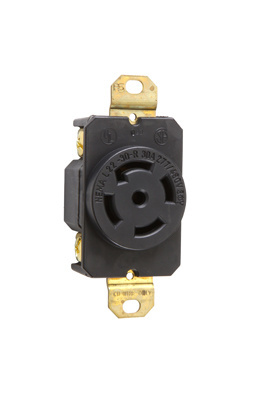

Mayer-DDS-30A L2230 Single Receptacle-1
  • Amperage: 30 A
  • Applications: Commercial
  • Country of Origin: Mexico
  • Depth: 1.28 in
  • Height: 2.42 in
  • Indoor/Outdoor: Indoor
  • Number of Phases: 3
  • Number of Poles: 4
  • Number of Receptacles: 1.0
  • Number of Wires: 5
  • Outlet Type: Locking
  • Voltage: 277 V, 480 V
  • Warranty Length: 1 yr
  • Width: 1.61 in
  • Wire Size: 10 AWG
Receptacle Single 5-Wire 30A 277/480V Turnlok®
QTY
  • Product Description
  • Features
  • Specifications
Receptacle Single 5-Wire 30A 277/480V Turnlok®
  • Features
    • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
    • Face color coding by voltage facilitates locating and mating of proper devices.
    • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
    • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
    • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
    • Side and external screw-pressure-plate back wire capability.
    • Accepts #14 - #10 AWG.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.28 in
    • Height : 2.42 in
    • Special Features : Turnlock, locking device, quick thread assembly, rounded back contour, impact & corrosion resistant, new design external cord grips
    • Width : 1.61 in
    • Color : Black
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
    • Phase : Three
    • Amperage : 30.0 A
    • Standard : UL 498
    • Number of Wires : 5.0
    • Outlet Type : Locking
    • Voltage : 277/480 VAC
    • Indoor/Outdoor : Indoor
    • Number of Poles : 4-Way
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Features : Impact Resistant
    • Number of Receptacles : 1.0
    • Application Sector : Commercial
    • Features : Brass Mounting Strap
    • NEMA Configuration Code : L22-30R
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
