PASS & SEYMOUR

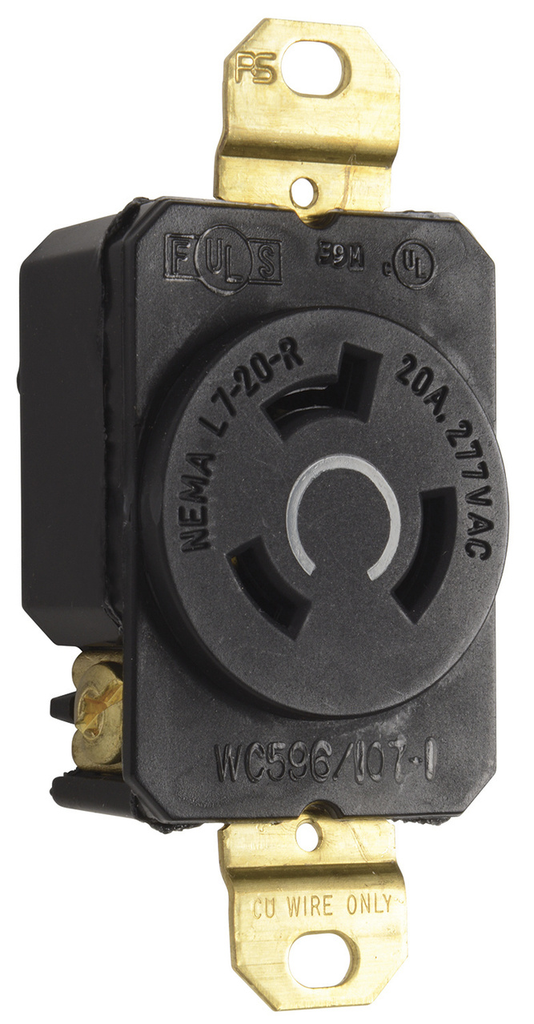

20A NEMA L720 Single Receptacle

R SGL 3W20A277V T/L

PSSL720R L720-R 785007272055
35.29 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A NEMA L720 Single Receptacle-1
  • Country of Origin: Mexico
  • Depth: 1.19 in
  • Height: 2.29 in
  • Width: 1.61 in
Receptacle Single 3-Wire 20A 277V Turnlok®
QTY
  • Product Description
  • Features
  • Specifications
Receptacle Single 3-Wire 20A 277V Turnlok®
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Features
    • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
    • Face color coding by voltage facilitates locating and mating of proper devices.
    • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
    • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
    • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
    • Side and external screw-pressure-plate back wire capability.
    • Accepts #14 - #10 AWG.
  • Specifications
    • Depth : 1.19 in
    • Height : 2.29 in
    • Product Line : Pass & Seymour
    • Width : 1.61 in
    • Country of Origin : Mexico
