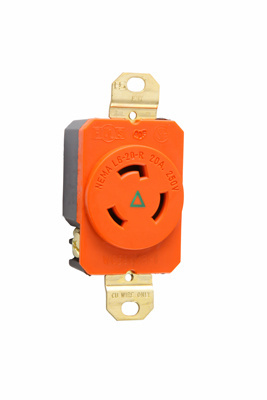

20A NEMA L620 Single Receptacle, Orange, Isolated Ground

LKG REC SINGLE 3W 20A 250V IG

PSSIGL620R IGL620-R 785007262001
35.85 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A NEMA L620 Single Receptacle, Orange, Isolated Ground-1
  • Country of Origin: Mexico
Turnlok® Receptacle Single 3-Wire 20A 250V Isolated Ground
QTY
  • Product Description
  • Features
  • Specifications
Turnlok® Receptacle Single 3-Wire 20A 250V Isolated Ground
  • Features
    • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
    • 140 joules of energy absorption in each of the three modes.
    • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
    • 1 filtering capacitor for 7 to 1 average noise reduction.
    • Nominal let-through (suppressed) voltage inall 3 modes, 500V.
    • LED indicator light.
    • Response time less than 1 nanosecond for unmounted MOV.
    • Overcurrent protection in all 3 modes.
    • Electronic components potted for electrical, mechanical and thermal stability.
    • Thermal protection in all 3 modes.
    • Leakage current: 0.5 mA at 25: C/120VAC.
    • 3 18mm super MOVs to suppress transients in all modes : equally.
    • Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
    • Varistor voltage: 150V RMS.
    • Back and side wire capability including ground terminal.
    • Operating temperature: -40: C to 85: C(-40: F to 185: F)
    • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : Mexico
    • Color : Orange
    • Product Line : Pass & Seymour
