PASS & SEYMOUR

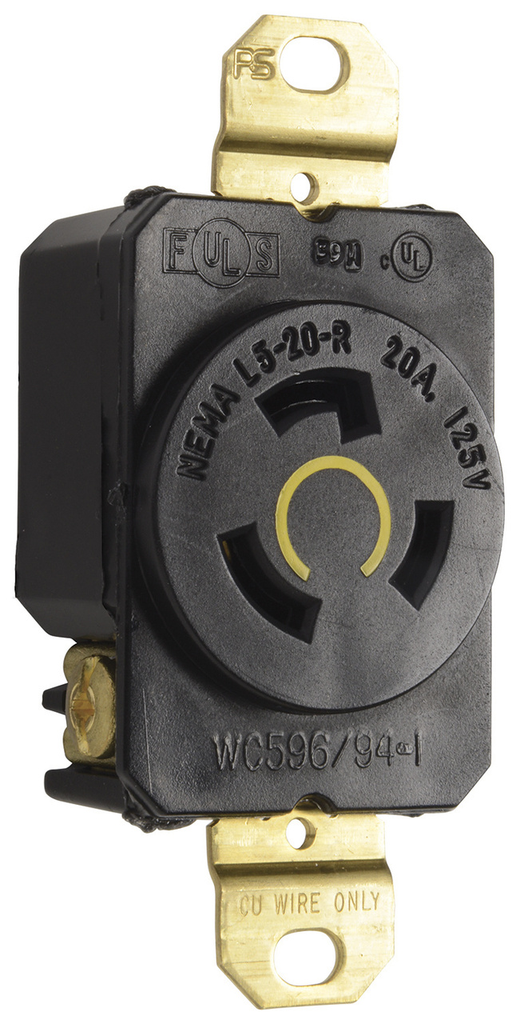

20A 125V NEMA L520 Single Receptacle, 2-Pole 3-Wire, Black

TRNLCK RCPT SINGLE 3WIRE 20A12

PSSL520R L520-R 785007252057
31.13 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V NEMA L520 Single Receptacle, 2-Pole 3-Wire, Black-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.19 in
  • Finish: Matte
  • Height: 2.29 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 1.0
  • Operating Temperature: 40 °F, 75 °F
  • Outlet Type: Locking
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.61 in
  • Wire Size: 10 AWG
Turnlok® Receptacle Single, 2-Pole 3-Wire, 20A 125V
QTY
  • Product Description
  • Features
  • Specifications
Turnlok® Receptacle Single, 2-Pole 3-Wire, 20A 125V
  • Features
    • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
    • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
    • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
    • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
    • Side and external screw-pressure-plate back wire capability.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.19 in
    • Color : Black
    • Height : 2.29 in
    • Width : 1.61 in
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
    • Amperage : 20.0 A
    • Standard : UL 498
    • Voltage : 125.0 V
    • Outlet Type : Locking
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Number of Receptacles : 1.0
    • Number of Poles : Double Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Features : Brass Mounting Strap
    • NEMA Configuration Code : L5-20R
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 75.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-75°C
    • Wire Connection Type : Internal Pressure Plates
